Description

Price

1

Crankshaft cmpl.

79530018000

$1,068.79

2

Connecting rod repair kit

79530015044

$539.58

3

Piston I compl.

79530107000 I

$299.79

3

piston II compl.

79530107000 II

$301.32

4

PISTON RING KIT

79430130044

$161.15

7

CIRCLIP

79430174000

$14.10

8

CYLINDER ROLLER BEARING NJ207

79430082000

$91.06

9

RETAINING PLATE F. CS BEARING

75030085000

$1.49

10

INT. TORX FLAT HEAD M5X12 T25

0019050121S

$2.05

11

SHIM WASHER 36X48X0,10

56530081000

Unavailable

11

SHIM WASHER 36X48X0,15

56530081100

Unavailable

11

SHIM WASHER 36X48X0,20 STEEL

56530081200

Unavailable

11

SHIM WASHER 36X48X0,30

56530081300

Unavailable

13

NUT PRIMARY WHEEL M20X1,5

78030029200

$10.09

14

primary gear 31t

79432023231

$90.59

15

Timing gear

78036014300

$40.66

16

WOODRUFF KEY DIN6888-3X3,7

0888030037

$2.05

19

BEARING SEAL

79430084000

$7.00

20

WOODRUFF KEY DIN6888-3X5X13

0888030050

$2.05

98

Piston kit group I

79530107010 I

Unavailable

98

Piston kit group II

79530107010 II

Unavailable

99

CRANKSHAFT REP.KIT 450 SX-F 15

00050002315

Unavailable

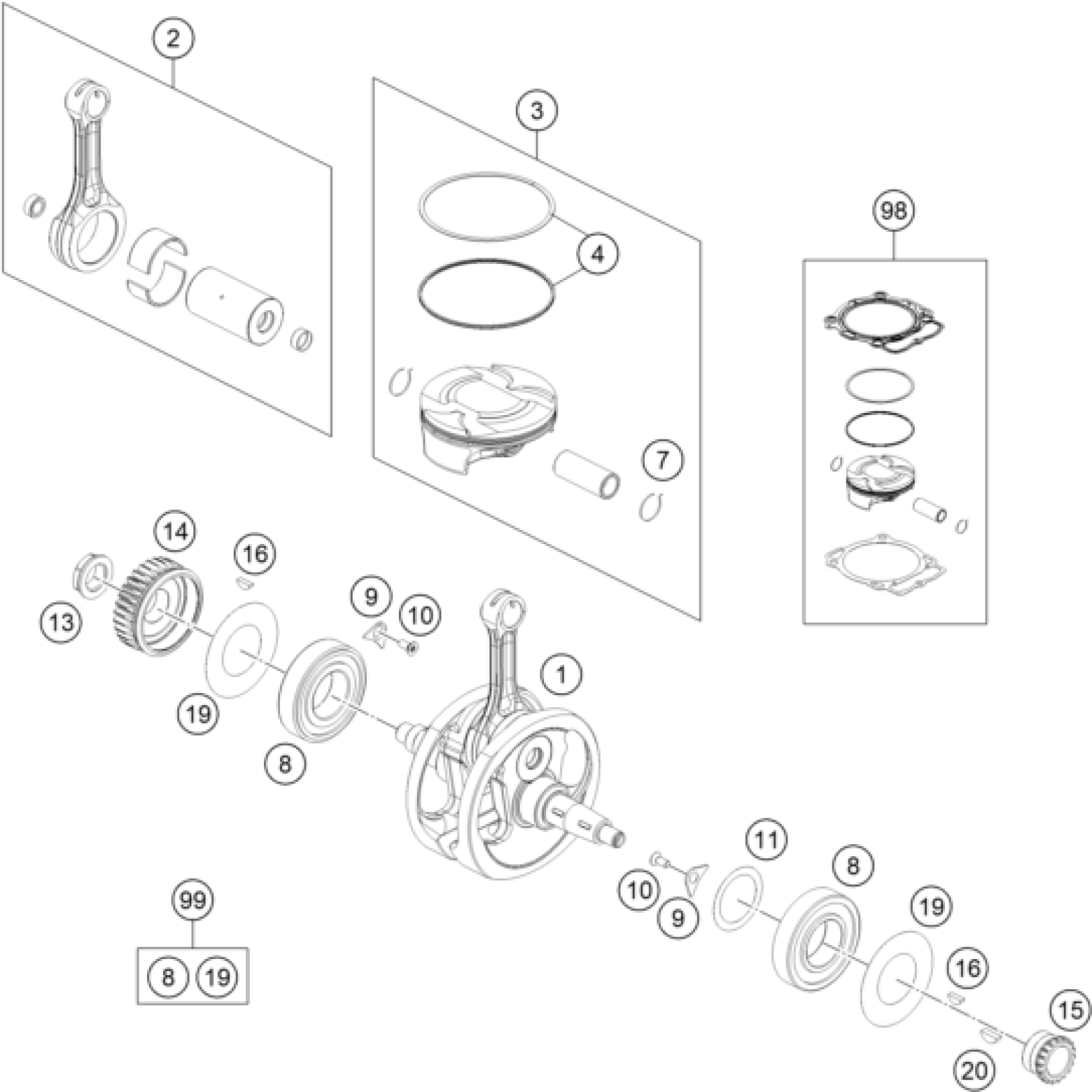

KTM 450 SX-F Factory Edition 2020 CRANKSHAFT, PISTON Diagram

Crankshaft cmpl.

Connecting rod repair kit

Piston I compl.

piston II compl.

PISTON RING KIT

CIRCLIP

CYLINDER ROLLER BEARING NJ207

RETAINING PLATE F. CS BEARING

INT. TORX FLAT HEAD M5X12 T25

SHIM WASHER 36X48X0,10

SHIM WASHER 36X48X0,15

SHIM WASHER 36X48X0,20 STEEL

SHIM WASHER 36X48X0,30

NUT PRIMARY WHEEL M20X1,5

primary gear 31t

Timing gear

WOODRUFF KEY DIN6888-3X3,7

BEARING SEAL

WOODRUFF KEY DIN6888-3X5X13

Piston kit group I

Piston kit group II

CRANKSHAFT REP.KIT 450 SX-F 15
