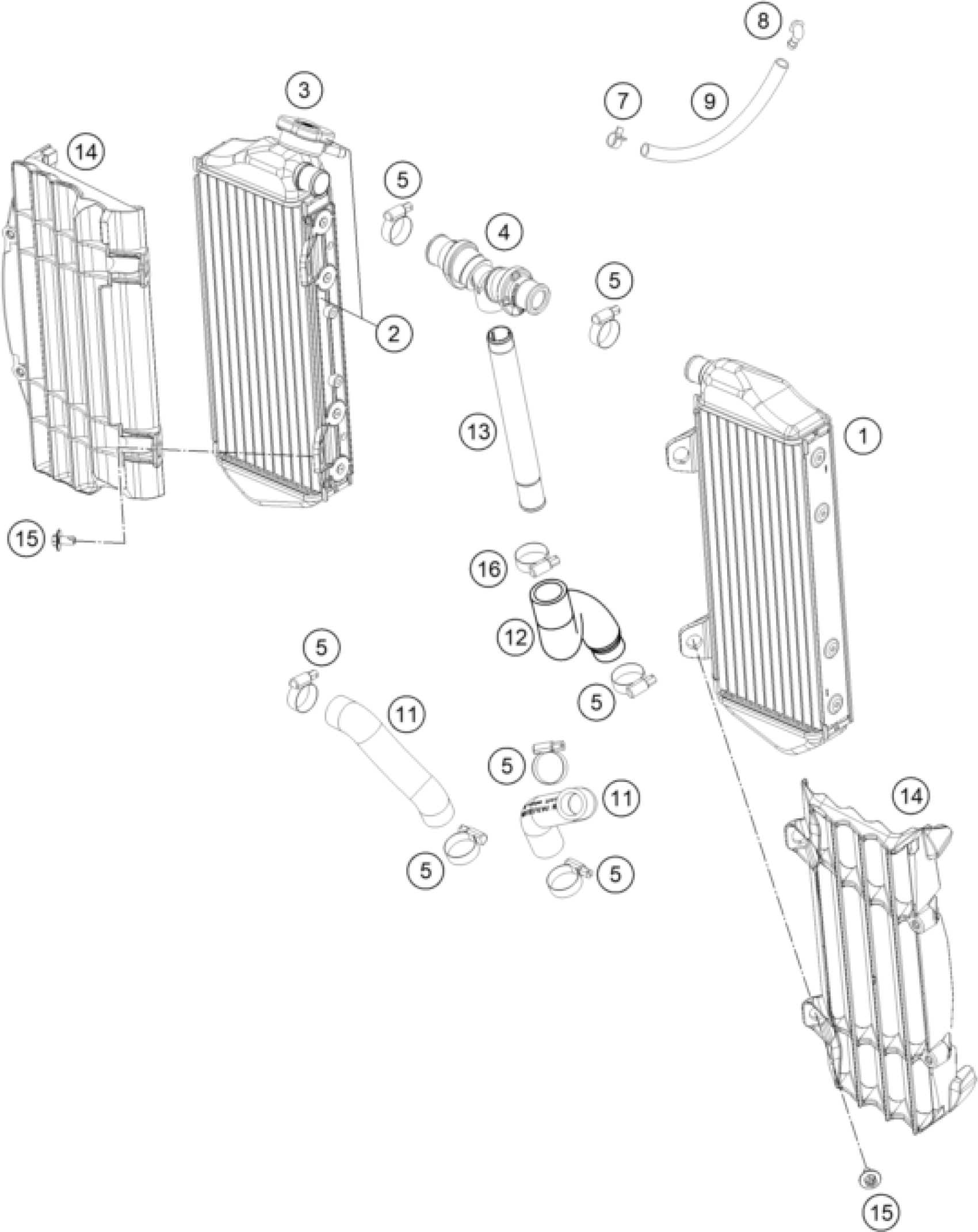

KTM 450 SX-F Factory Edition 2020 COOLING SYSTEM Diagram

#

Description
Price

1

Radiator, left 19

50535007100

$205.13

2

Radiator right

79535008100

$231.22

3

RADIATOR CAP 1,8 BAR

79035016000

$28.51

4

Y-hose cpl.

79135071044

$40.48

5

hose clamp 18-29

10001020300

$2.05

7

CLAMP YDNAC 10096F (9,6MM)

59007017000

$2.05

8

ANGLE PIECE '97

50303089000

$5.23

9

PVC-HOSE 6X9

50335030001

Unavailable

11

water hose right

79535027000

$7.10

12

water hose

79535024000

$8.78

13

threaded bushing

79135073000

$13.27

14

radiator protector le/ri black

7913503400030

$17.85

15

COLLAR SCREW M6X12 TX

0024060123

$1.49

16

Hose clip 22-33

79135031000

$2.05
