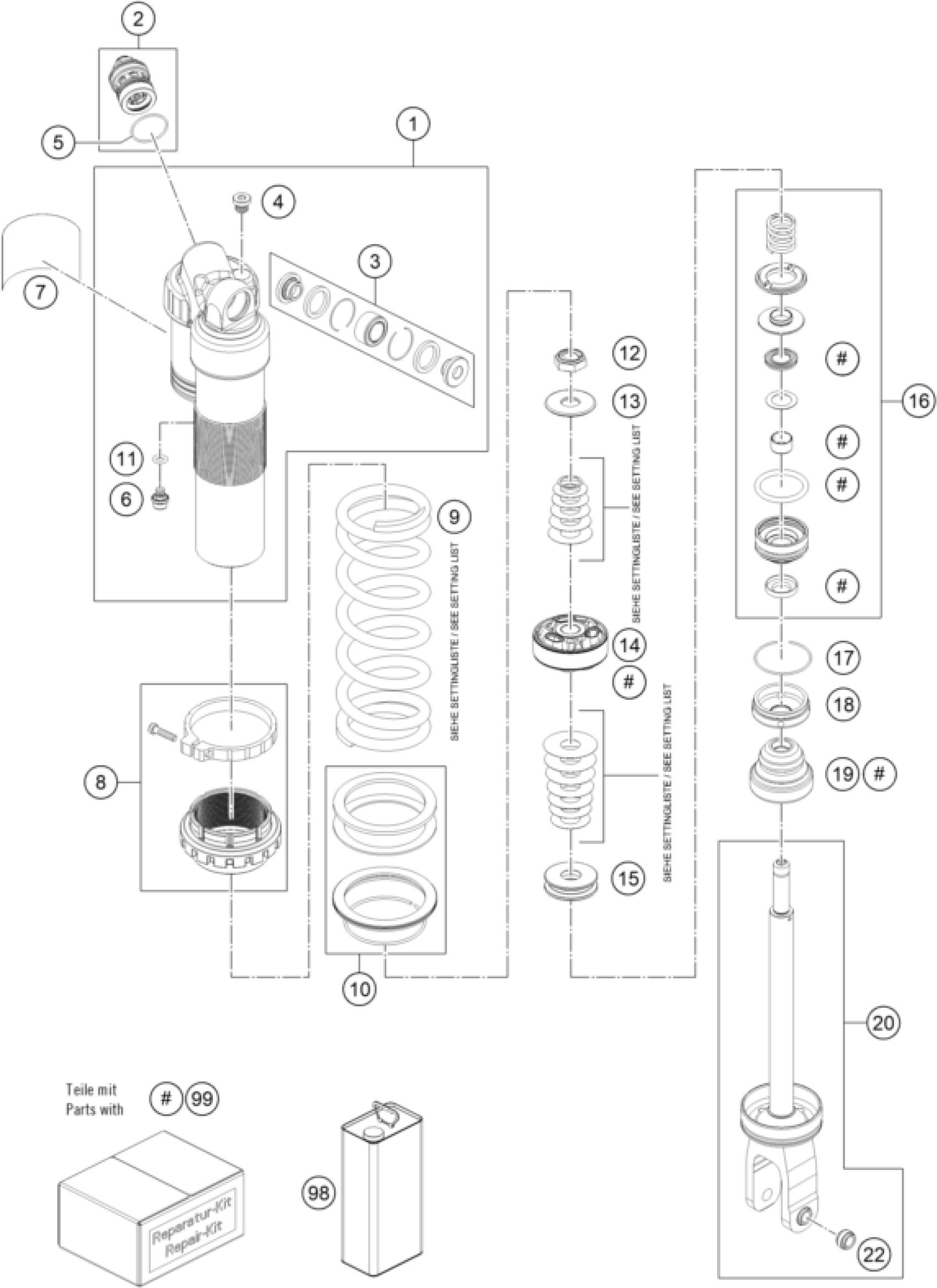

KTM 450 SX-F FACTORY EDITION 2019 SHOCK ABSORBER DISASSEMBLED Diagram

#

Description
Price

1

Shock housing M57,5x1 h30,5 cp

50181144S3

$328.08

2

compression cpl.

50181101S45

$96.48

3

REPAIR KIT BEARINGS 07

R15006

Unavailable

4

HS cylinder-head screw R1/8 l8

50180095

$2.42

5

O-ring 27x1,5 Viton70 green IS

50180217

$2.05

6

HS lock screw M5x6

36120151

$1.86

7

sticker XACT 90x54

52000239

$32.25

8

Plastic Spring Retainer cpl.

50181347S

$32.25

9

SPRING 260 45 N/MM

91210100S

$140.24

9

SPRING 260 42 N/MM

91210124S

Unavailable

9

SPRING 260 48 N/MM

91210101S

Unavailable

10

SPRING PLATE SET

50180824S

$38.23

11

O-ring 5,28x1,78 NBR70 black

46810893

$1.49

12

Locking nut M12x1 h9 WAF19

50181207

$7.85

13

Rebound disc 12x34x2 h0

50181092

$21.31

14

Piston 12x50x20 cpl.

50181255S

$49.27

15

Rebound disc 12x43x12,5 h8

50181091

$25.70

16

Sealholder 50x28 cpl.

50180603SA

$63.10

17

Round-wire snap ring 53x1,75

50180126

$1.49

18

Cap 50,12x16 h6

50181349

$24.86

19

Rubber pad 18x58x46 black

50181100

$19.35

20

MONOSHOCK BOTTOM PART CPL.

50181148S1

$330.61

22

Bush M10x12/15/13x9,5

46811205

$6.72

98

SHOCK ABSORBER FLUID 5 LT

50180751S1

Unavailable

99

Rebuild kit 5018 Link 2019

RP10019

Unavailable

9

SPRING 260 60 N/MM

91210105S

Unavailable

9

SPRING 260 57 N/MM

91210104S

Unavailable

9

SPRING 260 54 N/MM

91210103S

Unavailable

9

SPRING 260 51 N/MM

91210102S

Unavailable

9

SPRING 260 39 N/MM

91210123S

Unavailable

9

Spring 255 36 N/MM

91210128S

Unavailable

9

Mainspring (62/65) 33-250 damp

91210126

Unavailable

9

Mainspring (62/65) 30-250 damp

91210129

Unavailable
