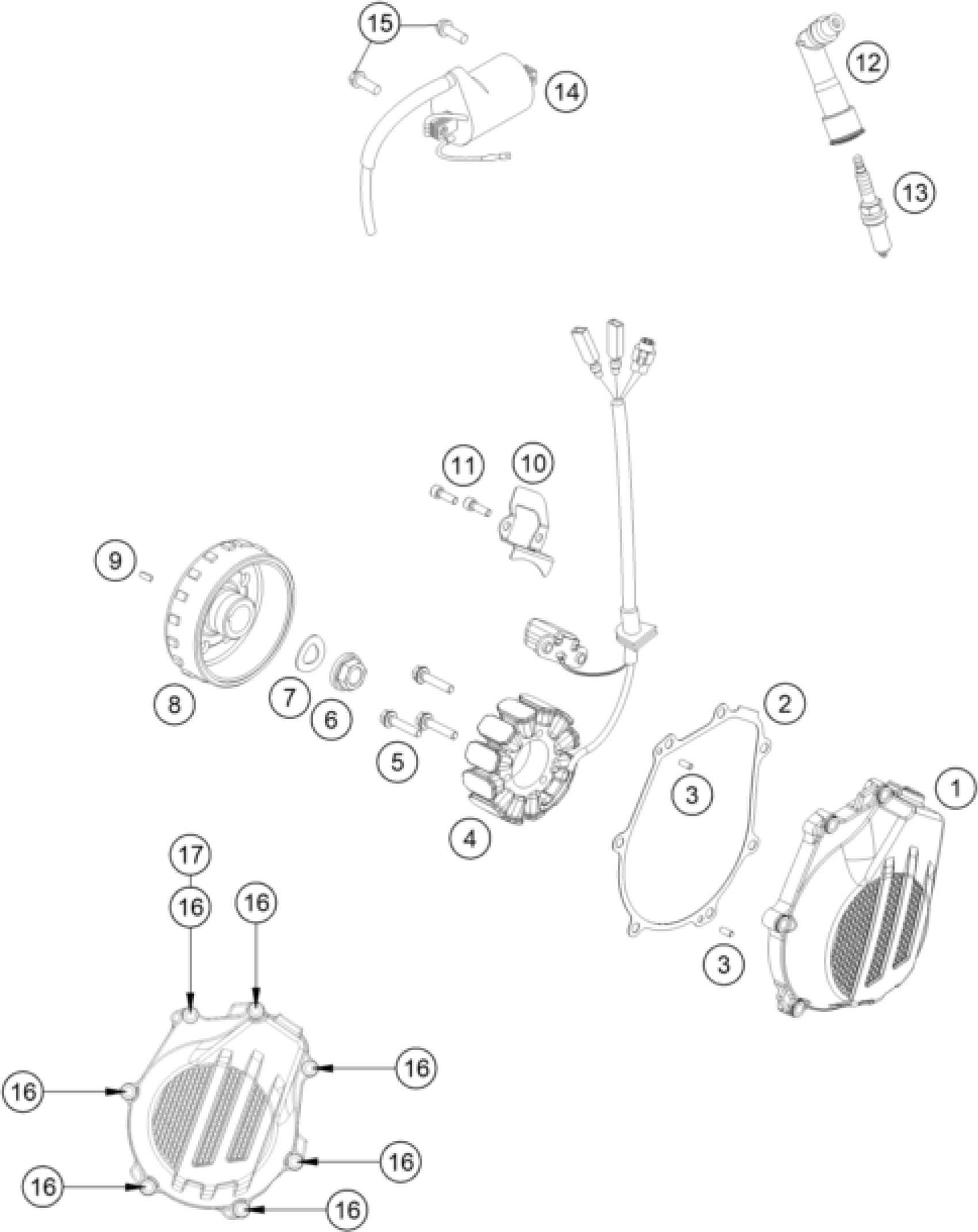

KTM 450 SX-F FACTORY EDITION 2019 IGNITION SYSTEM Diagram

#

Description
Price

1

IGNITION COVER 450

7943000200015

$86.48

2

IGNITION COVER GASKET

79430040000

$13.83

3

Needle roll.DIN5402 NRB 4X9.8

0402040980

$3.08

4

Stator

79239004100

$204.20

5

Bolt DIN 6912 - M5x25 SS

0012050253S

$1.49

6

COLLAR NUT M12X1 R/S

49030021000

$2.05

7

SPRING WASHER DIN0137-B12

0137120000

$1.49

8

ROTOR

79439005000

$426.35

9

WOODRUFF KEY DIN6888-3X5X13

0888030050

$2.05

10

CABLE HOLDER PLATE

79430002050

$39.92

11

AH collar screw DIN 912 M5x16

0912050163

$1.49

12

Spark plug connector

79539090000

$51.23

13

PLUG NGK LMAR9AI - 8

77239093000

$22.71

14

Ignition coil

58439006000

$75.45

15

COLLAR SCREW M6X18 ISA30

0026060186

$1.49

16

HH collar screw M6x25 TX30

0025060256

$3.08

17

CU-SEAL RING DIN7603-6X10X1

0603061001

$2.05
