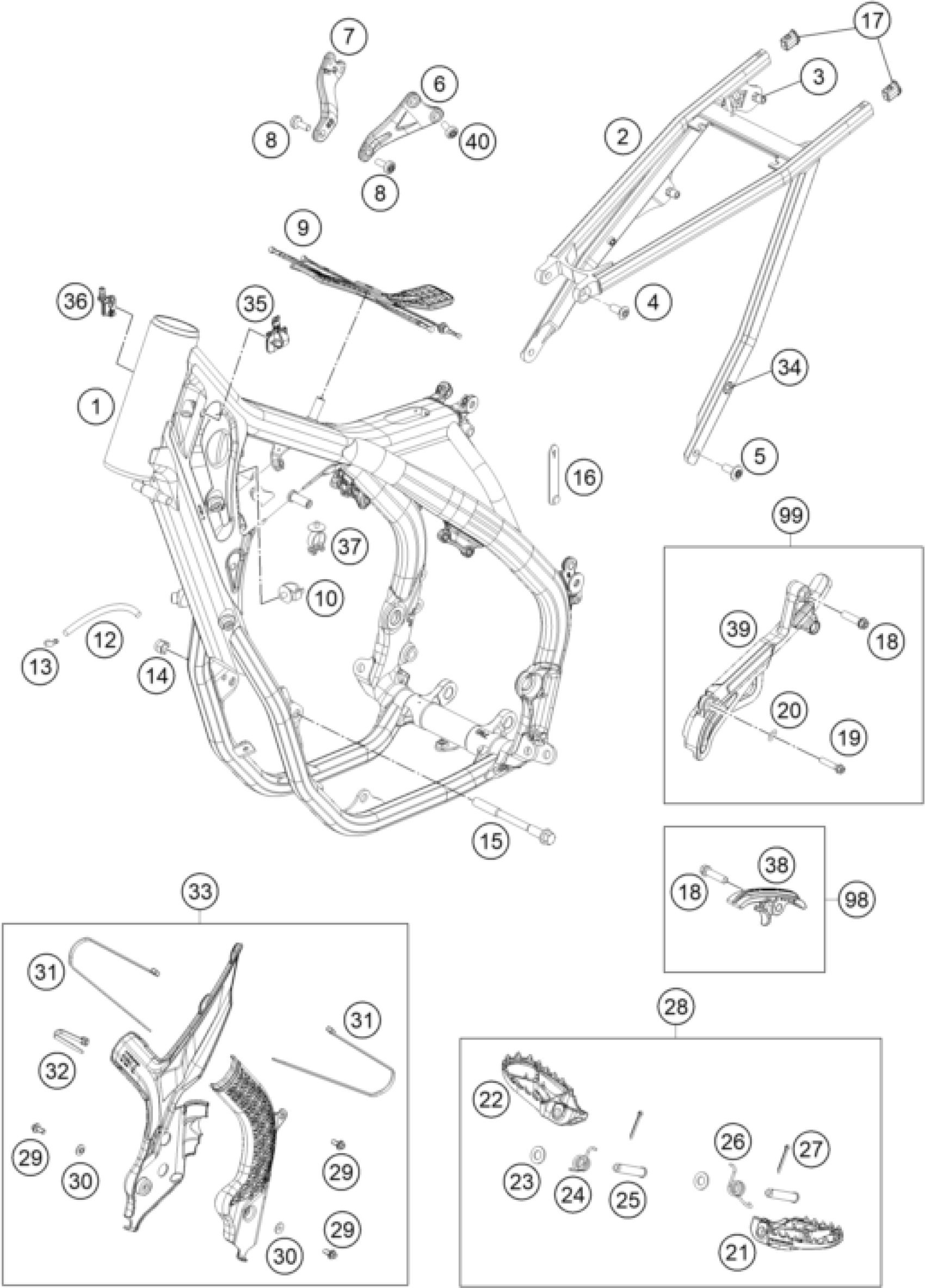

KTM 450 SX-F FACTORY EDITION 2019 FRAME Diagram

Frame 795S3

79503001000EB

$2,009.96

Subframe

79103002000

$201.03

BLIND RIVET NUT EM6-60LF/HX

77303139000

$4.11

FLAT HEAD SCREW M. ISA45 M8X20

0019080206S

$2.05

Special screw M8X18 TORX45 SL

79003003000

$3.08

head hanger 450 left

7950301300001S

$55.72

Motor bracket right

7950301400001S

$51.88

SHCS M8x20 TX45

0035080206S

$5.32

TANK REST RUBBER

79607012000

$10.09

CABLE SUPPORT KHS NR.150-47610

58111076000

$4.11

PVC-HOSE 7X10 PER METER

55007016001

Unavailable

ANGLE PIECE '97

50303089000

$5.23

SELF LOCKING NUT M10 CU WS=14

54310086100

$2.05

Enginebrac. screw M10X123 WS=1

59003013000

$9.44

RUBBER CABLE TIE 75MM 03

60011093075

$5.23

Rear frame bit

79103002010

$4.11

HH collar screw M8x30

0025080306

$3.08

HH collar screw M6x35 TX30

0025060356

$3.08

WASHER DIN0125-A 6,4

0125060003

$1.49

FOOTREST L/S 2016

79003040000

$41.51

FOOTREST R/S 2016

79003041000

$41.51

washer DIN 125 A 10.5

0125100003

$2.05

FOOTREST SPRING R/S 2016

79003044000

$2.05

PIN FOR FOOT PED 51.5X9.8 MM

54803044000

$12.43

FOOTREST SPRING L/S 2016

79003045000

$2.05

PIN DIN0094-3,2X25 STEEL

0094032253

$1.49

FOOT PEGS SET CPL. 2016

79003040033

$101.16

HH COLLAR SCREW M 5X12 WS=6

0014050123

$2.05

Bush f. frame protection 03

54803092060

$4.11

CABLE TIE 300/4,8MM BLACK

44011076305

$2.05

CABLE TIE 140/2,5MM BLACK

44011076140

$1.49

Frame protection set

79103094000EB

$29.16

BLIND RIVET NUT M6 KNURLED

79003002080

$3.08

wire holder le 19

79111093000

$1.49

wire holder / fuel ventilation

79107013010

$1.49

CABLE SUPPORT 07

61111041000

$1.49

Chain slider, lower part, cmpl

79003053000

$10.56

SPROCKET COVER 450

79403096000

$23.65

AH-COLLAR SCREW M8X15 TORX45

0035080156S

$2.05

CHAIN SLIDING KIT BELOW CPL.16

79003053010

$17.85

SPROCKET COVER KIT

79403096010

$25.24
