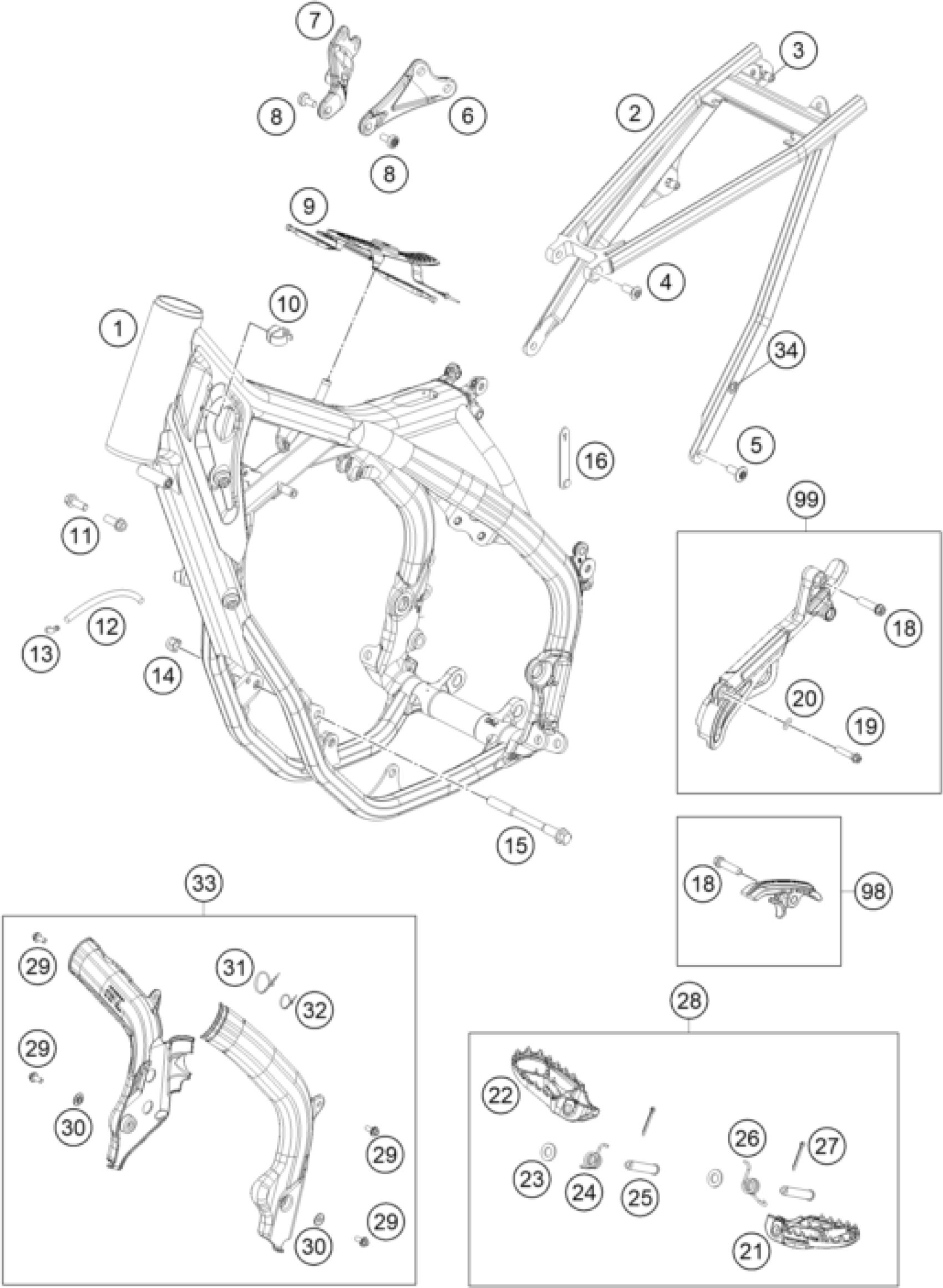

KTM 450 SX-F FACTORY EDITION 2017 FRAME Diagram

#

Description
Price

1

Frame ''794Q3''

79403001200EB

Unavailable

2

SUBFRAME 2016

79003002000

$267.78

3

BLIND RIVET NUT EM6-60LF/HX

77303139000

$4.11

4

FLAT HEAD SCREW M. ISA45 M8X20

0019080206S

$2.05

5

Special screw M8X18 TORX45 SL

79003003000

$3.08

6

ENGINE BRACE LEFT

79403013100

$48.99

7

ENGINE BRACE RIGHT

79403014100

$54.97

8

SHCS M8x20 TX45

0035080206S

$5.32

9

TANK REST RUBBER

79007012000

$9.90

10

CABLE SUPPORT KHS NR.150-47610

58111076000

$4.11

11

HH collar screw M8x16 TX40 SL

0025080166S

$3.08

12

PVC-HOSE 7X10 PER METER

55007016001

Unavailable

13

ANGLE PIECE '97

50303089000

$5.23

14

SELF LOCKING NUT M10 CU WS=14

54310086100

$2.05

15

Enginebrac. screw M10X123 WS=1

59003013000

$9.44

16

RUBBER CABLE TIE 75MM 03

60011093075

$5.23

18

HH collar screw M8x30

0025080306

$3.08

19

HH collar screw M6x35 TX30

0025060356

$3.08

20

WASHER DIN0125-A 6,4

0125060003

$1.49

21

FOOTREST L/S 2016

79003040000

$41.51

22

FOOTREST R/S 2016

79003041000

$41.51

23

washer DIN 125 A 10.5

0125100003

$2.05

24

FOOTREST SPRING R/S 2016

79003044000

$2.05

25

PIN FOR FOOT PED 51.5X9.8 MM

54803044000

$12.43

26

FOOTREST SPRING L/S 2016

79003045000

$2.05

27

PIN DIN0094-3,2X25 STEEL

0094032253

$1.49

28

FOOT PEGS SET CPL. 2016

79003040033

$101.16

29

HH COLLAR SCREW M 5X12 WS=6

0014050123

$2.05

30

Bush f. frame protection 03

54803092060

$4.11

31

CABLE TIE 300/4,8MM BLACK

44011076305

$2.05

32

CABLE TIE 140/2,5MM BLACK

44011076140

$1.49

33

FRAME PROTECTION SET ORANGE

79003094000EB

$36.55

34

BLIND RIVET NUT M6 KNURLED

79003002080

$3.08

98

CHAIN SLIDING KIT BELOW CPL.16

79003053010

$17.85

99

SPROCKET COVER KIT

79403096010

$25.24
