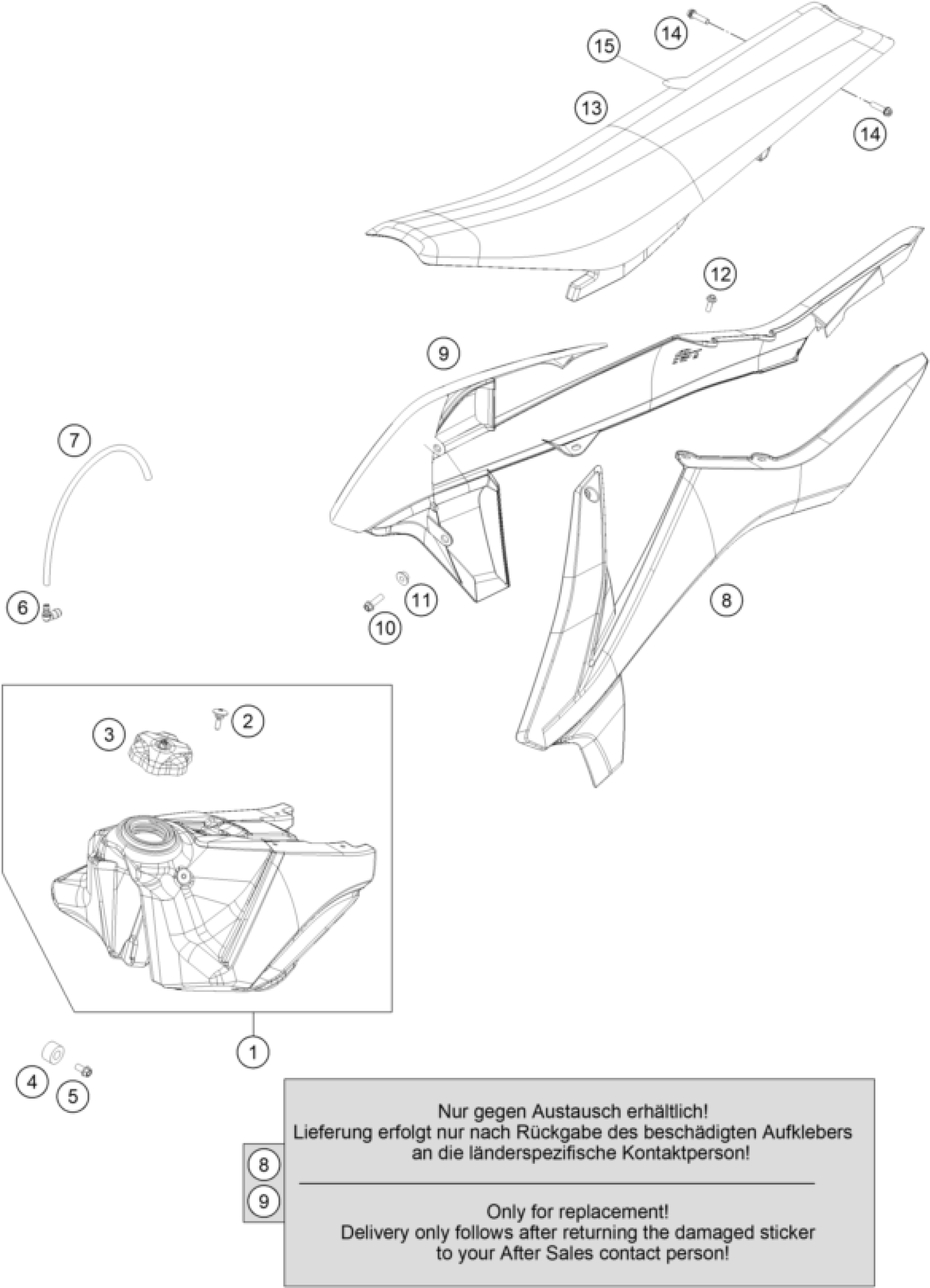

KTM 450 SX-F FACTORY EDITION 2016 TANK, SEAT Diagram

#

Description
Price

1

FUEL TANK CPL. 7,5L SX 16

7900701304430

$238.88

2

SCREW SEAT FASTENING D=6X23/18

50307011000

$3.08

3

Tank plug cmpl. 2014

7770700814404

$27.76

4

TANK ROLLER 12X26X12 '98

50307014000

$11.02

5

COLLAR SCREW M6X13 ISA30

0026060136

$3.08

6

ANGLE PIECE 90 DEGREE M10X1

51030022000

$5.23

7

PVC-hose 5.6X10X270MM

78007000270

$2.61

8

SPOILER LEFT 450 FACTORY 16

7900805003328A

$70.12

9

SPOILER RIGHT 450 FACTORY 16

7900805103328A

$70.12

10

HH collar screw M6x16 TX30

0025060166

$3.08

11

BUSH FOR SPOILER 6X11X16X5 MM

50308052000

$1.96

12

SCREW F. PLASTIC K60X20AL SW6

0017060206

$3.08

13

SEAT FACTORY EDITION

79007040300

$230.28

14

HH collar screw M6x25 TX30

0025060256

$3.08

15

SEAT COVER FACTORY ''DUNGEY''

79207940050

$74.79
