Description

Price

32

REP. KIT PISTON 06

54802032000

$49.92

35

BOLT KPL.

54802052000

$29.35

34

VALVE

54802051000

$19.16

3

Kill switch

50311089200

$37.58

4

STARTER BUTTON GREY 13

78111074000

$42.91

5

MAP SWITCH SET

77239974100

$148.74

6

HOLDER INDICATOR LIGHT SX

77214098000

$4.11

7

SPECIAL SCREW M6X12,5 WS=8

59001092050

$2.05

8

INDICATOR LIGHT LED YELLOW FI

81214083000

$31.13

13

THROTTLE CONTROL CASING CPL.

79002010025

$29.16

17

GRIP SET 17

79002221000

$23.20

18

Cable tie 200/4.6mm black

44011076200

Unavailable

18

CABLE TIE 140/2,5MM BLACK

44011076140

Unavailable

30

MASTER CYLINDER CPL.

54802030144

$240.57

31

Clutch lever cmpl. BREMBO 06

54802031000

$45.15

33

COVER HYD. CLUTCH CPL. 2014

5480200310030

$35.52

36

Brake fluid DOT5.1 0,25L

00062030000

$12.52

37

PROTECTION CAP 06

54802037000

$20.94

39

Push rod cmpl.

54802046000

$23.46

44

CLAMP CPL. 06

54802005100

$25.80

63

CLUTCH PIPE

78132063000

$107.14

92

THROTTLE CABLE CPL. 4STROKE

79002091000

$119.48

38

Lever screw cmpl. 06

54802038100

$39.82

1

HANDLEBAR D=28MM

7900200100030

$151.84

2

BAR PAD

79002002000

$35.05

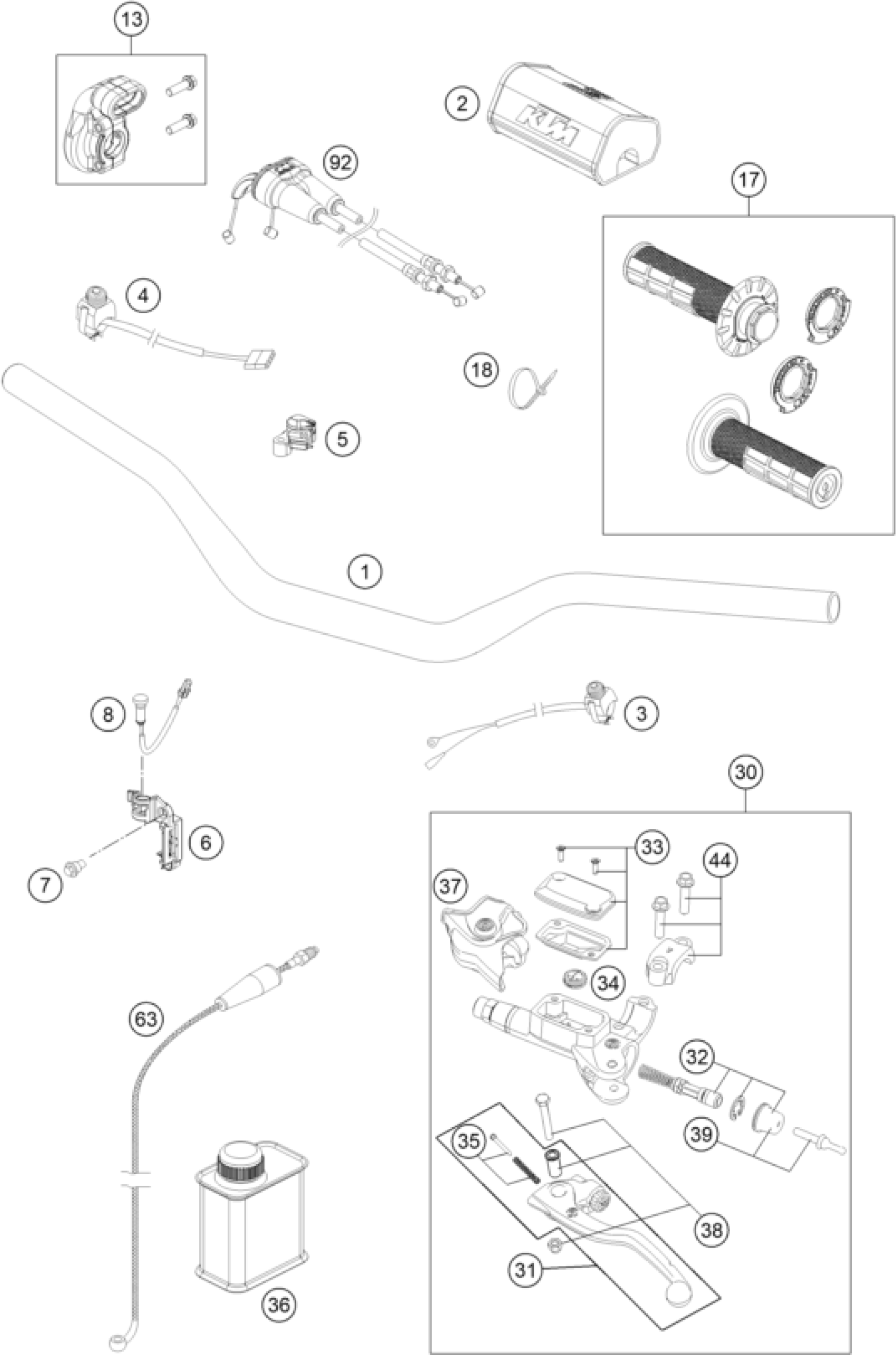

KTM 450 SX-F FACTORY EDITION 2016 HANDLEBAR, CONTROLS Diagram
