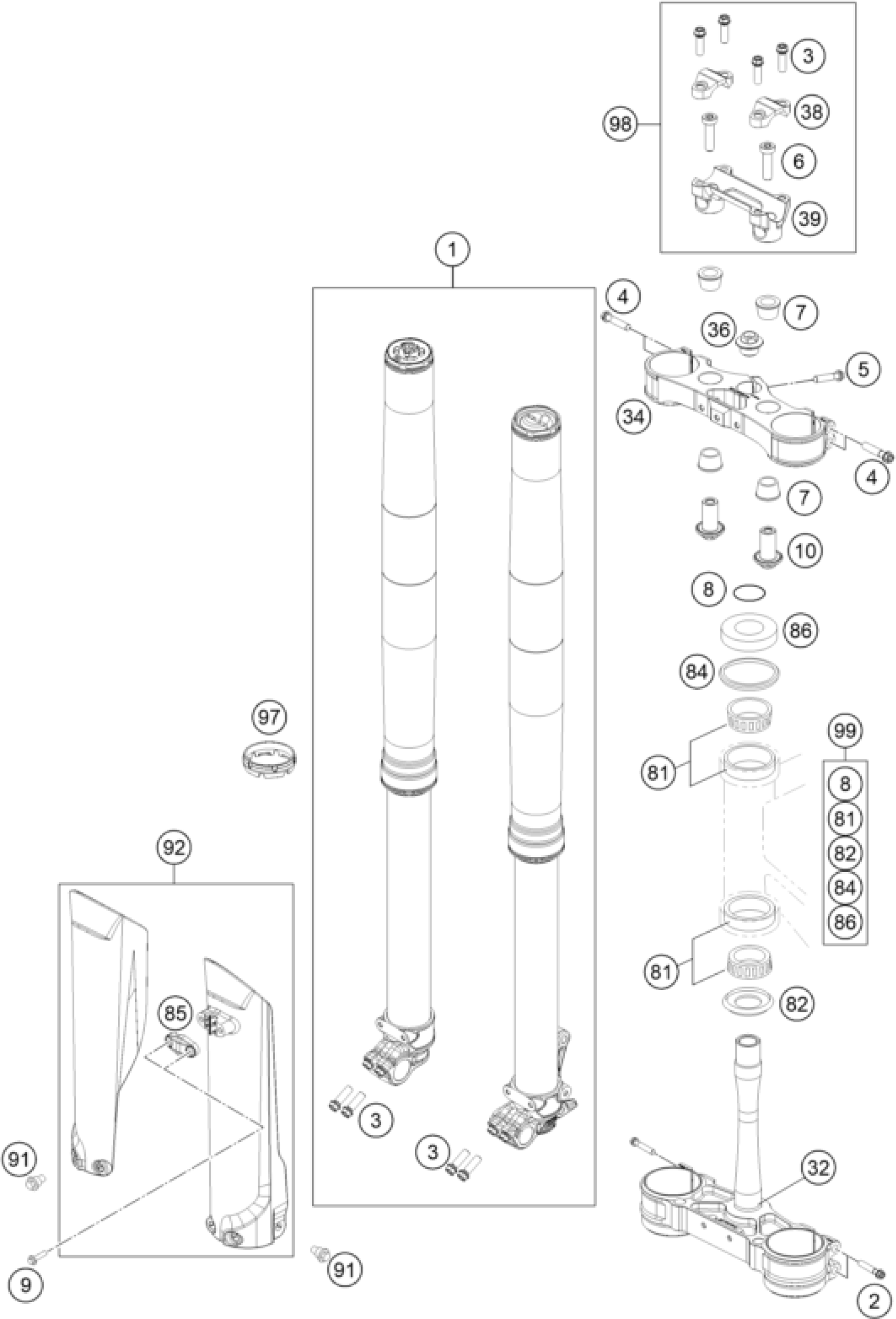

KTM 450 SX-F FACTORY EDITION 2016 FRONT FORK, TRIPLE CLAMP Diagram

TAPERED ROLLER BEARING CPL. 06

54201081100

$51.04

STEARING HEAD GASKET TOP

54601184000

$7.10

FORK PROTECTION SET FACTORY 16

77701094100EBB

Unavailable

STEERING HEAD COVER

78101086000

$6.07

HH COLLAR SCREW M8X40 TX40

0025080406

$4.11

HH COLLAR SCREW M8X25 TX40

0025080256S

$3.08

STEARING HEAD REP. KIT 06-15

00050000930

Unavailable

O-RING 25X3,55 NBR70 05

0770025035

$1.49

SCREW F. PLASTIC K60X20AL SW6

0017060206

$3.08

HANDLEBAR SUPPORT LOWER PART

79001037034

$60.95

LOWER TRIPLE CLAMP CPL. 16

7900103202204

$398.77

UPPER TRIPLE CLAMP X=22MM 2016

7900103402204

$225.14

AXLESCREW M20X1.5 SW17

70009082000

$9.44

HANDLEBAR CLAMP 28MM

77201038000

$25.05

FORK 450 SX-F 2016

34188P0901

$2,406.46

HH collar screw M8x50 TX40

0025080506

$3.08

HH collar screw M8x25

0025080256

$2.05

AH-COLLAR SCREW M10X35 ISA45

0032100356S

$4.11

RUBBER BUSH

83001040000

$5.23

HANDLEBAR SUPPORT D28MM-H36MM

79001139036

$91.90

O-RING SUPPORT W. SEALING LIP

77701084000

$19.35

CLAMP BRAKE LINE

77701085000EB

$5.23

SPECIAL SCREW M6X12,5 WS=8

59001092050

$2.05

Fork protection ring 62,1mm

48600698

$9.34

HANDLEBAR SUPPORT KIT D28/H36

00050000928

Unavailable
