Description

Price

2

THERMAL PROTECTION FOIL 07

77308013050

$9.62

3

THERMAL PROTECTION FOIL

77208013050

$9.53

5

RUBBER CAP

76505099050

$4.24

6

NOISE REDUCTION INSERT

77705979030

Unavailable

9

BUSHING 7.5x12x20x8.2 11

77205069000

$5.98

10

spring washer DIN 137 B - 6

0137060003

$2.05

11

BUSHING 7.5x12x28x8.3 11

77205169000

$6.07

12

DAMP. COMPON. BLACK

77205068000

$6.54

14

HH collar screw M6x35 TX30

0025060356

$3.08

20

TEN.SPRING L=62MM EY.MOVEABLE

50305016000

$4.57

21

TEN.SPRING L=75MM EY.MOVEABLE

50305116000

$7.00

22

DUMMY RIVET 4,8X 8 NIRO

0011480800

$3.08

30

ENDCAP

77705979050

$219.29

34

STUFFING YARN KIT

78905979010

Unavailable

35

REPAIR KIT

78905979020

Unavailable

40

EXHAUST SX-F

78905007000

$423.45

42

HH collar screw M8x25

0025080256

$2.05

1

TITAN SILENCER

78905979000

Unavailable

43

BUSHING FOR EXHAUST SUPPORT 03

59405069000

$6.54

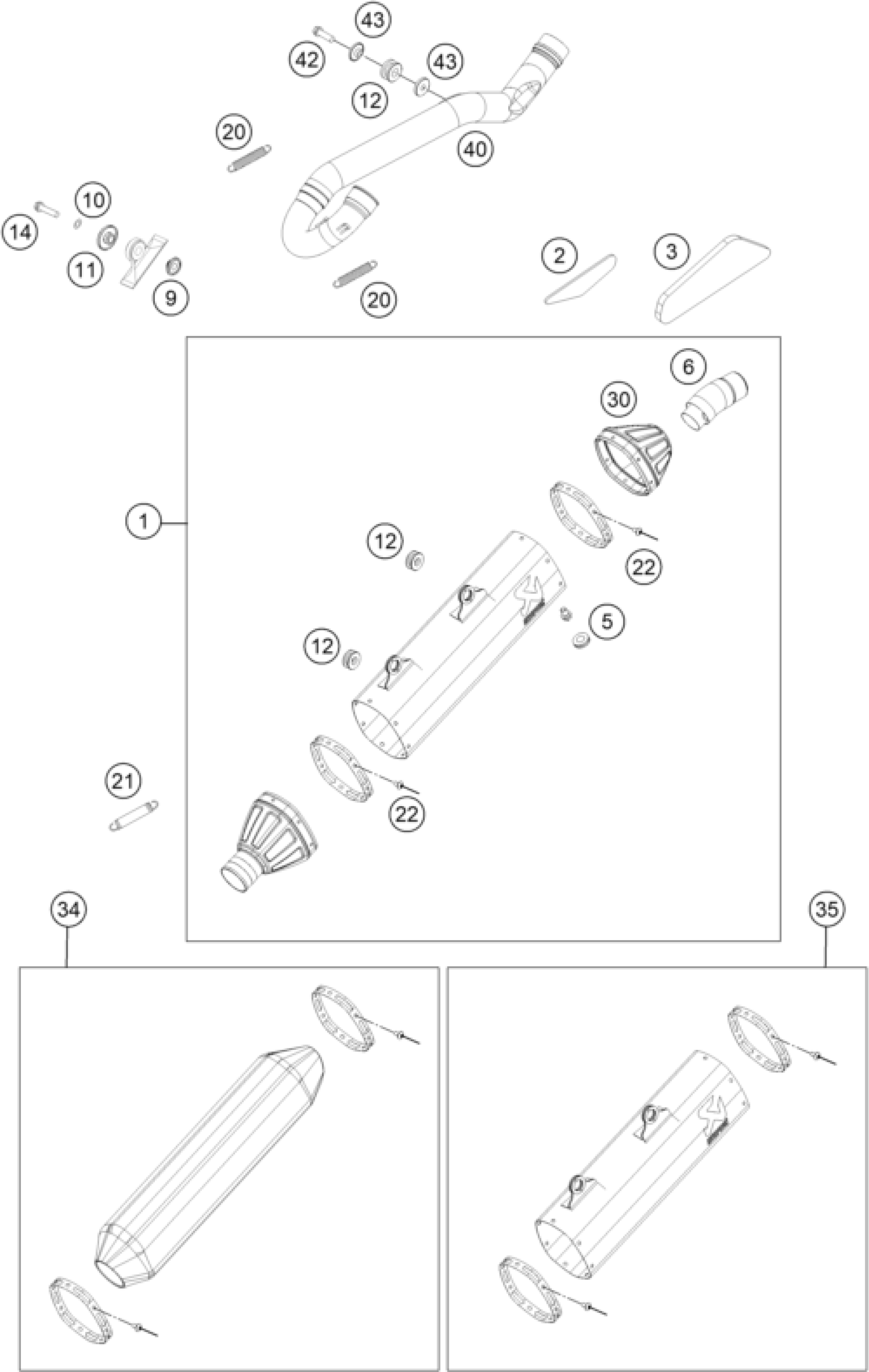

KTM 450 SX-F FACTORY EDITION 2014 EXHAUST SYSTEM Diagram

THERMAL PROTECTION FOIL 07

THERMAL PROTECTION FOIL

RUBBER CAP

NOISE REDUCTION INSERT

BUSHING 7.5x12x20x8.2 11

spring washer DIN 137 B - 6

BUSHING 7.5x12x28x8.3 11

DAMP. COMPON. BLACK

HH collar screw M6x35 TX30

TEN.SPRING L=62MM EY.MOVEABLE

TEN.SPRING L=75MM EY.MOVEABLE

DUMMY RIVET 4,8X 8 NIRO

ENDCAP

STUFFING YARN KIT

REPAIR KIT

EXHAUST SX-F

HH collar screw M8x25

TITAN SILENCER

BUSHING FOR EXHAUST SUPPORT 03
