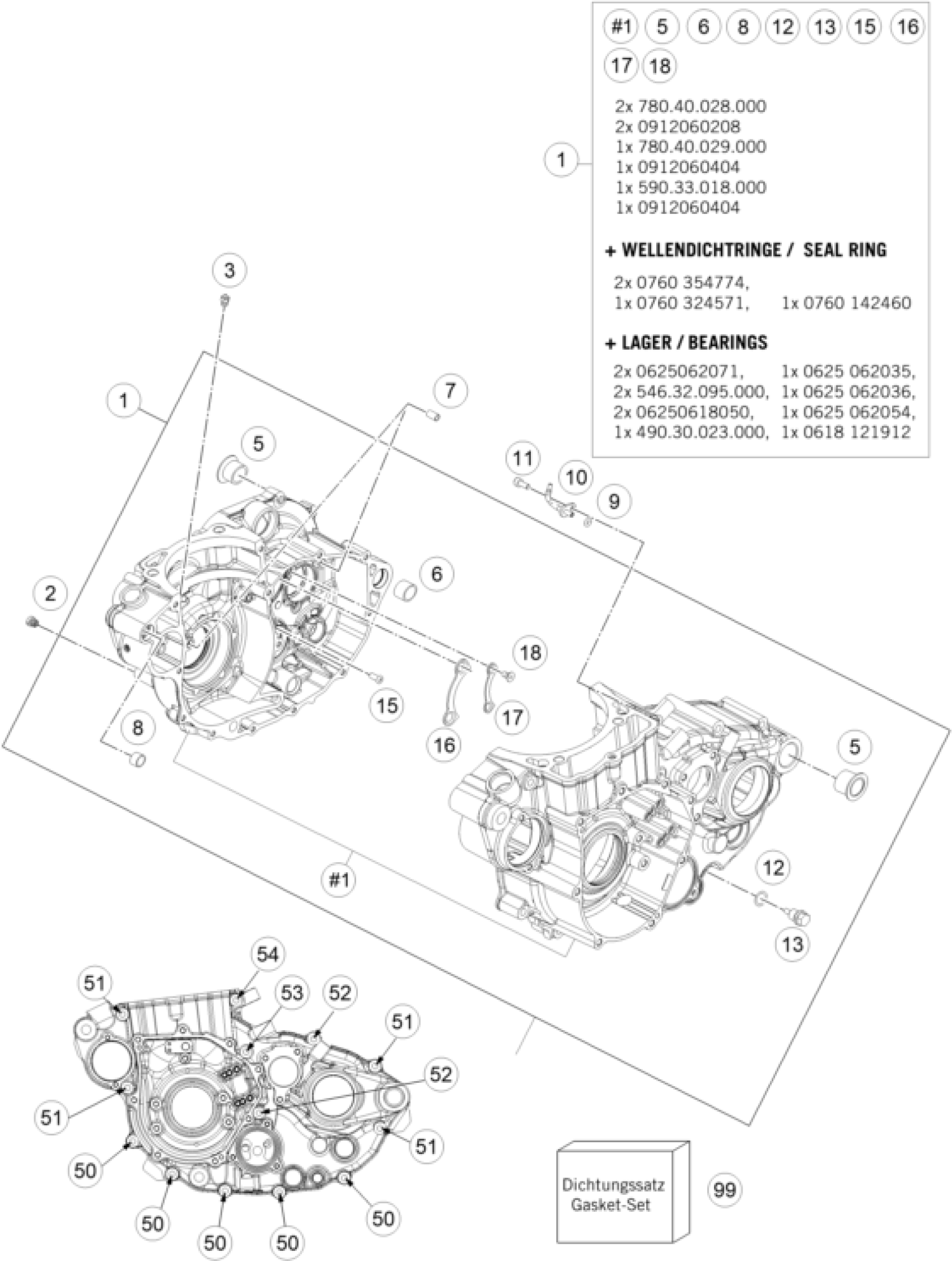

KTM 450 SX-F FACTORY EDITION 2014 ENGINE CASE Diagram

#

Description
Price

1

ENGINE CASE CPL.

78130100033

$972.05

2

MAIN JET 145

57031523145

$7.75

3

oil jet 70 M5

60030063070

$8.59

5

CASE BUSH

75030010100

$12.33

6

DOWEL 21X12 03

54830027000

$5.23

7

dowel sleeve 6x8x11.5

59030023000

$1.49

8

DOWEL 17 X 13 X 12

51030026100

$6.44

9

O-RING 3,5X2,00 NBR

0770035020

$1.49

10

OIL JET ANGLED 70

81230064000

$12.15

11

AH.SCREW DIN0912-M 4X10

0912040103

$2.05

12

CU-seal ring DIN7603-12X18X1.5

58038022000

$2.05

13

OILDRAIN PLUG W.MAG. M 12X1,5

58030021000

$11.30

15

INT. TORX OVAL HEAD M 5X10 8.8

0018050103

$1.49

16

TAB WASHER BEARING MAIN SHAFT

78033032000

$5.51

17

TAB WASHER BEARING COUNT.SHAFT

78033132000

$5.23

18

INT. TORX FLAT HEAD M5X12 T25

0019050121S

$2.05

50

HH collar screw M6x40 TX30

0025060406

$3.08

51

HH collar screw M6x60 TX30

0025060606

$3.08

52

HH COLLAR SCREW M6X75 TX30

0025060756

$3.08

53

HH COLLAR SCREW M6X80 TX30

0025060806

$2.05

54

HH COLLAR SCREW M6X85 TX30

0025060856

$3.08

99

GASKET SET 450/500 EXC 12

78130099000

$229.16
