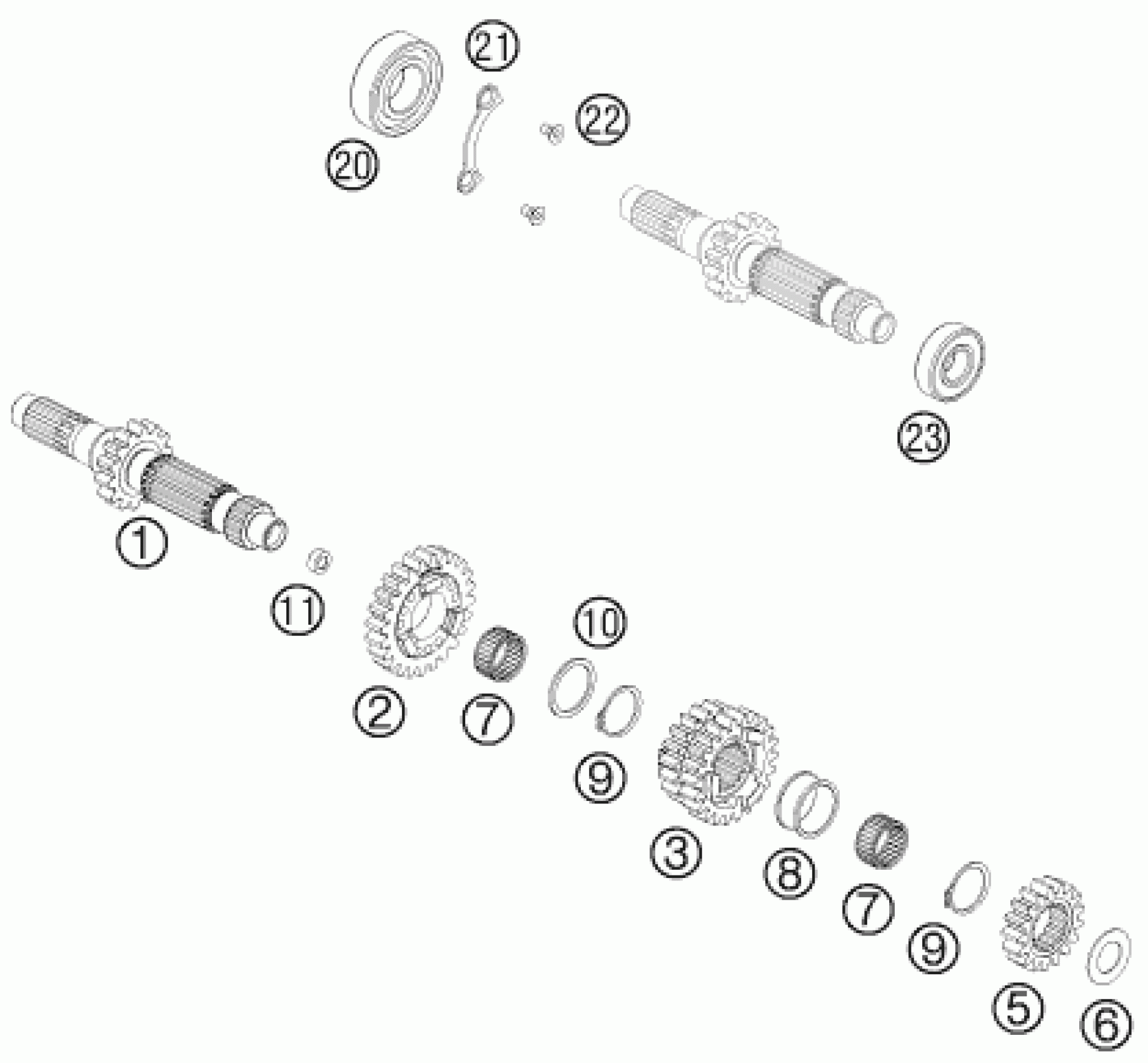

KTM 450 SX-F FACTORY EDITION 2013 TRANSMISSION I - MAIN SHAFT Diagram

#

Description

Price

1

MAIN SHAFT 16 T.

78933001050

$103.00

2

IDLER GEAR 5.G.

78933005000

$136.69

3

SLIDING GEAR 3/4 G.

78933003000

$168.01

5

SOLID GEAR 2.G.

78933002000

$58.06

6

STOP DISC 17,2X30X1

56033030000

$4.11

7

NEEDLE BEAR. K 22X26X13 TN

0405222613

$9.15

8

SPACER SLEEVE

78933032000

$21.43

9

CIRCLIP DIN0471-25X1,2

0471250120

$2.05

10

STOP DISK 26 X 32 X 1,5

78033031000

$3.08

11

BUSHING

78033001110

$11.40

20

BALL BEARING 6205 C3 NTN

0625062054

$20.66

21

TAB WASHER BEARING MAIN SHAFT

78033032000

$5.51

22

hex lobe countersunc screw M5x

0019050106S

$2.05

23

BALL BEARING 6203 RSH C3

0625062036

$16.17
