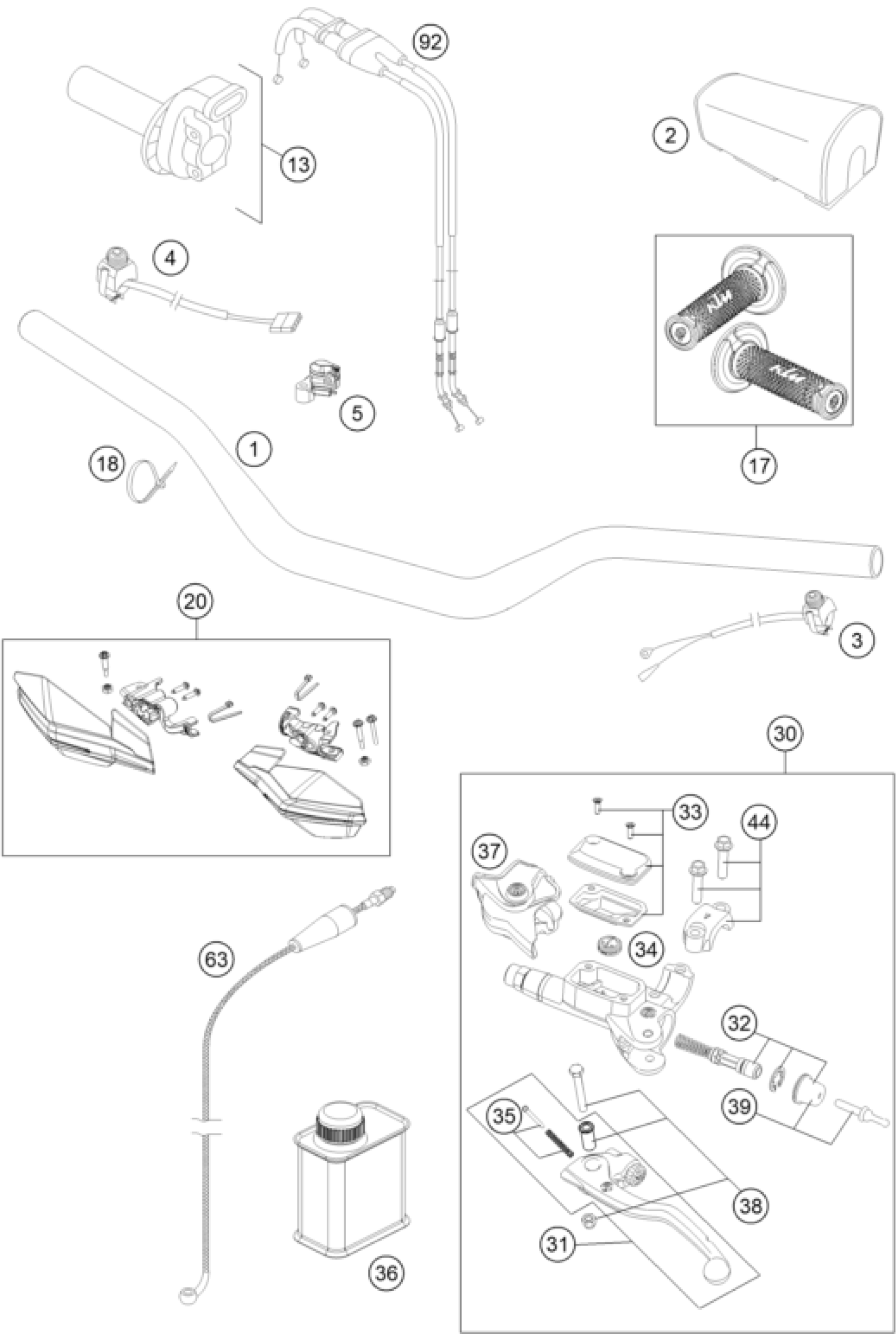

KTM 450 SX-F FACTORY EDITION 2013 HANDLEBAR, CONTROLS Diagram

#

Description
Price

1

HANDLEBAR RENTHAL BLACK 13

7770200100030

$151.84

2

BAR PAD

77302002000

$29.74

3

Kill switch

50311089200

$37.58

4

STARTER BUTTON GREY 13

78111074000

$42.91

13

THROTTLE GRIP CPL.

78102010000

$44.59

17

GRIP-SET RENTHAL G092 FULL W.

77102021000

Unavailable

17

GRIP SET

78102021000

$22.71

18

Cable tie 200/4.6mm black

44011076200

Unavailable

18

CABLE TIE 140/2,5MM BLACK

44011076140

Unavailable

20

HANDGUARD MX CPL. ORANGE

7810297910004

Unavailable

30

MASTER CYLINDER CPL. 06

54802030044

$240.57

31

Clutch lever cmpl. BREMBO 06

54802031000

$45.15

32

REP. KIT PISTON 06

54802032000

$49.92

33

COVER HYD. CLUTCH CPL.

54802003000

$33.46

34

VALVE

54802051000

$19.16

35

BOLT KPL.

54802052000

$29.35

36

Brake fluid DOT5.1 0,25L

00062030000

$12.52

37

PROTECTION CAP 06

54802037000

$20.94

38

Lever screw cmpl. 06

54802038100

$39.82

39

Push rod cmpl.

54802046000

$23.46

44

CLAMP CPL. 06

54802005100

$25.80

63

CLUTCH PIPE

78132063000

$107.14

92

THROTTLE CABLE 4ST. 13

78102091000

$57.77

5

MAP SWITCH SET

77239974000

Unavailable
