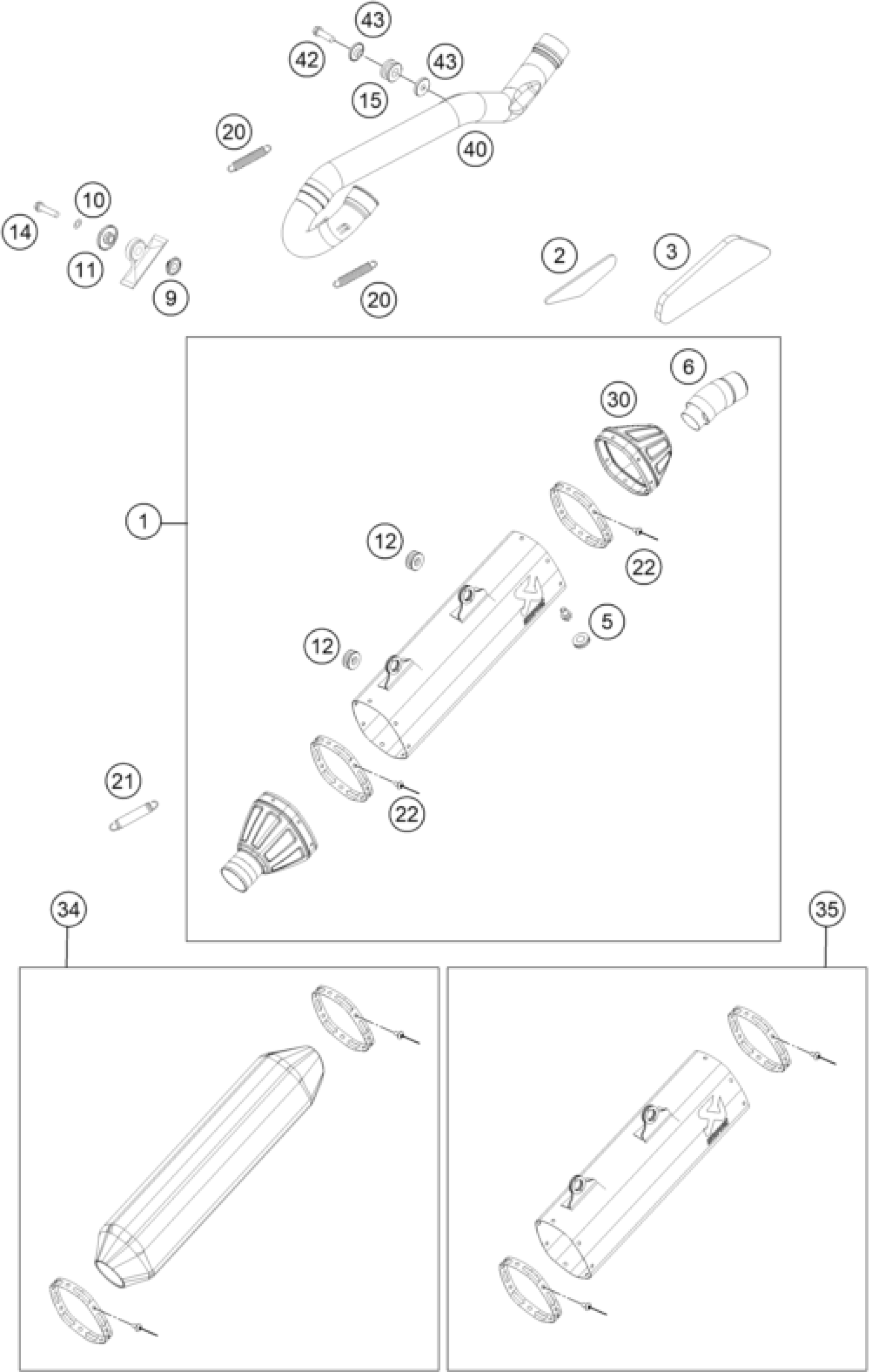

KTM 450 SX-F FACTORY EDITION 2013 EXHAUST SYSTEM Diagram

#

Description
Price

1

TITAN SILENCER

78905979000

Unavailable

2

THERMAL PROTECTION FOIL 07

77308013050

$9.62

3

THERMAL PROTECTION FOIL

77208013050

$9.53

9

BUSHING 7.5x12x20x8.2 11

77205069000

$5.98

10

spring washer DIN 137 B - 6

0137060003

$2.05

11

BUSHING 7.5x12x28x8.3 11

77205169000

$6.07

12

DAMP. COMPON. BLACK

77205068000

$6.54

14

HH collar screw M6x30 TX30

0025060306

$3.08

15

EXHAUST BRACKET RUBBER BLACK

54605068000

$6.54

20

TEN.SPRING L=62MM EY.MOVEABLE

50305016000

$4.57

21

EXHAUST-SPRING SMALL W. RUBBER

57305016100

$8.49

5

RUBBER CAP

76505099050

$4.24

6

NOISE REDUCTION INSERT

77705979030

Unavailable

22

DUMMY RIVET 4,8X 8 NIRO

0011480800

$3.08

30

ENDCAP

77705979050

$219.29

34

STUFFING YARN KIT

78905979010

Unavailable

40

EXHAUST SX-F

78905007000

$423.45

42

HH collar screw M8x25

0025080256

$2.05

43

BUSHING FOR EXHAUST SUPPORT 03

59405069000

$6.54

35

REPAIR KIT

78905979020

Unavailable
