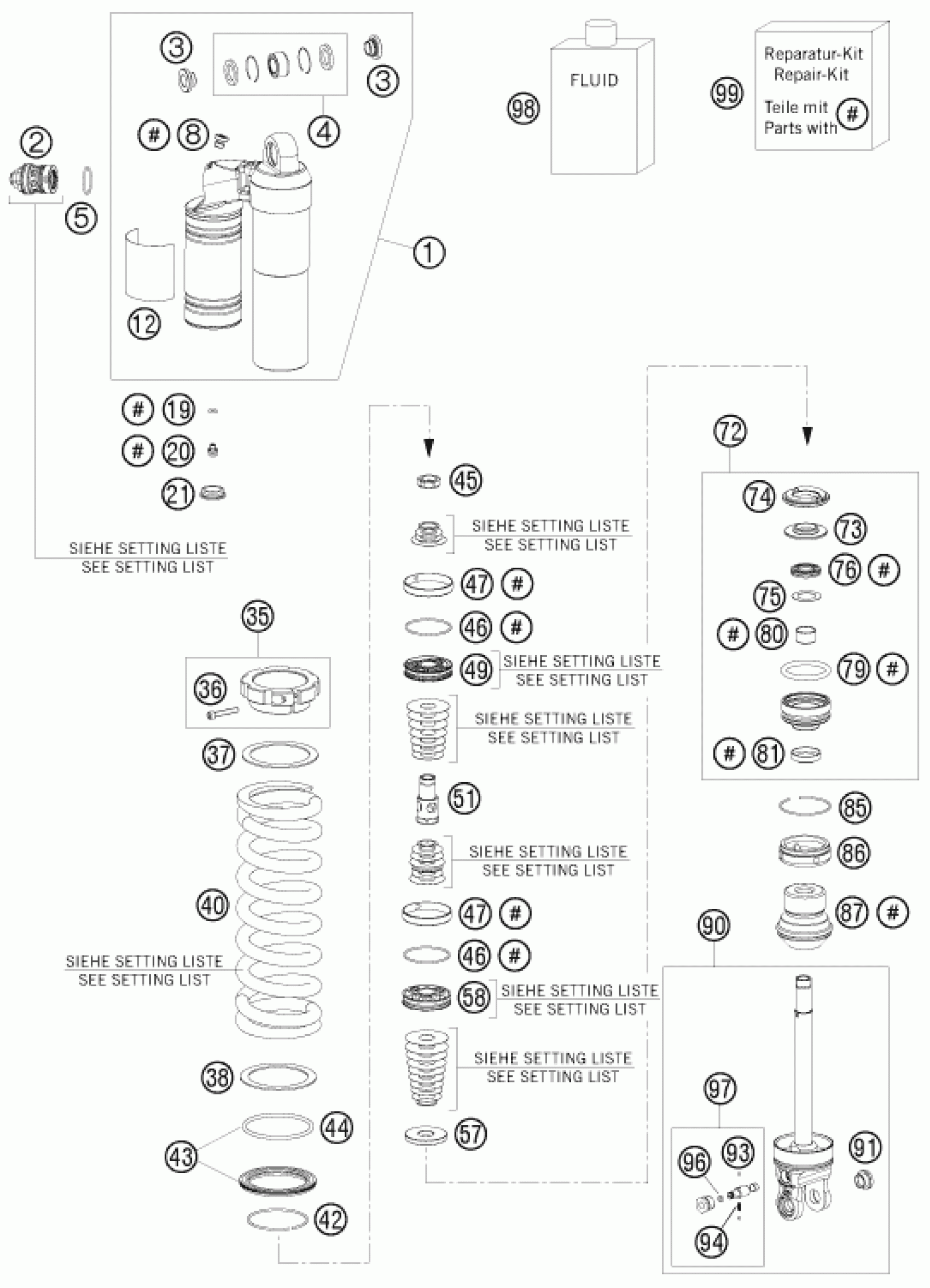

KTM 450 SX-F FACT.REPL.NAGL <2010> SHOCK ABSORBER DISASSEMBLED Diagram

#

Description
Price

1

TOP PART CPL. M57,5X1 H30,5 10

50180733SA

$634.46

2

DCC-COMPR.DAMP.CONTROL CPL. 09

50180213S11

$99.95

3

Distance bush 12x15/18/24,5x10

46180007

$17.76

4

Ball joint bearing kit top 12m

R12012

$35.71

8

HS cylinder-head screw R1/8 l8

50180095

$2.42

12

Sticker WP PDS 62x100

52000085

$16.73

19

O-ring 5,28x1,78 NBR70 black

46810893

$1.49

20

HS lock screw M5x6

36120151

$1.86

21

Rubber cap do not open 22x5,5

46811208

$3.08

35

SPRING RETAINER M57,5X1+SCREW

50180520S

$78.51

36

HS cylinder-head screw M5x30

50180327

$4.11

37

INTERM.RING SCREW SPRING RET.

50180818

$3.48

38

Intermediate washer spring 61,

50180114

$3.08

40

SPRING 250 63N/MM ORANGE

91210053S

Unavailable

40

SPRING 250 60N/MM ORANGE

91210055S

Unavailable

40

SPRING 250 66N/MM ORANGE

91210054S

Unavailable

40

SPRING 250 69N/MM ORANGE

91210068S

Unavailable

40

SPRING 250 72N/MM ORANGE

91210069S

Unavailable

40

SPRING 250 76N/MM

91210070S

Unavailable

42

Round-wire snap ring 58,5x2

50180273

$2.05

43

SPRING RET. D=80 W. O-RING 05

50180463S

$29.21

44

O-ring 66,27x1,78 Viton70

50180352

$3.08

45

PISTON ROD NUT M20X1

50180627

$76.10

46

O-ring 44x,17x1,78 Viton70

50180099

$2.05

47

Piston ring 47,95x49,95x8

50180135

$17.76

49

PISTON D=20

50180675

$40.66

51

Tap setting 20x45,3

50180764

$41.14

57

REBOUND DISC D43 H0 T4

50180631

$14.30

58

Piston 16,05x49,6x13,5 4,5/7

50180197

$45.62

72

Sealholder 50x28 cpl.

50180603S

$74.88

73

Washer 18,5x43,7x6

50180113

$25.80

74

Rubber pad rebound 27x48x8 NBR

50180107

$4.11

75

Shim 29.75x19x0.4

50180604

$2.05

76

Seal ring cpl. 18x30x5

50180605S

$22.06

79

O-ring 41x5 NBR70

50180103

$1.49

80

Guide bushing 18x20x12

46180119

$6.35

81

Dirt scarper NOK 18mm black

50180606

$7.85

85

Round-wire snap ring 53x1,75

50180126

$1.49

86

Cover 50x6 h16

50180626

$45.81

87

Rubber pad 17x58x59

50180480

$20.37

90

SHOCK ABS. LOWER PART CPL. 10

50180512SA2

$491.79

91

Threaded bush M12 d20

50180105

$15.51

93

Steel ball d3

40540603

$1.49

94

Spring (1,7) l7,9

48600028

$3.08

96

O-ring 4x1,5 NBR70

50180222

$1.49

97

ADJUSTING SCREW REBOUND TRAVEL

50180434S

$28.14

98

SHOCK ABSORBER FLUID 5 LT '03

50180342S1

$149.59

99

REPAIR KIT 5018 PDS 06

R12014

$145.41

5

O-ring 27x1,5 Viton70 green IS

50180217

$2.05
