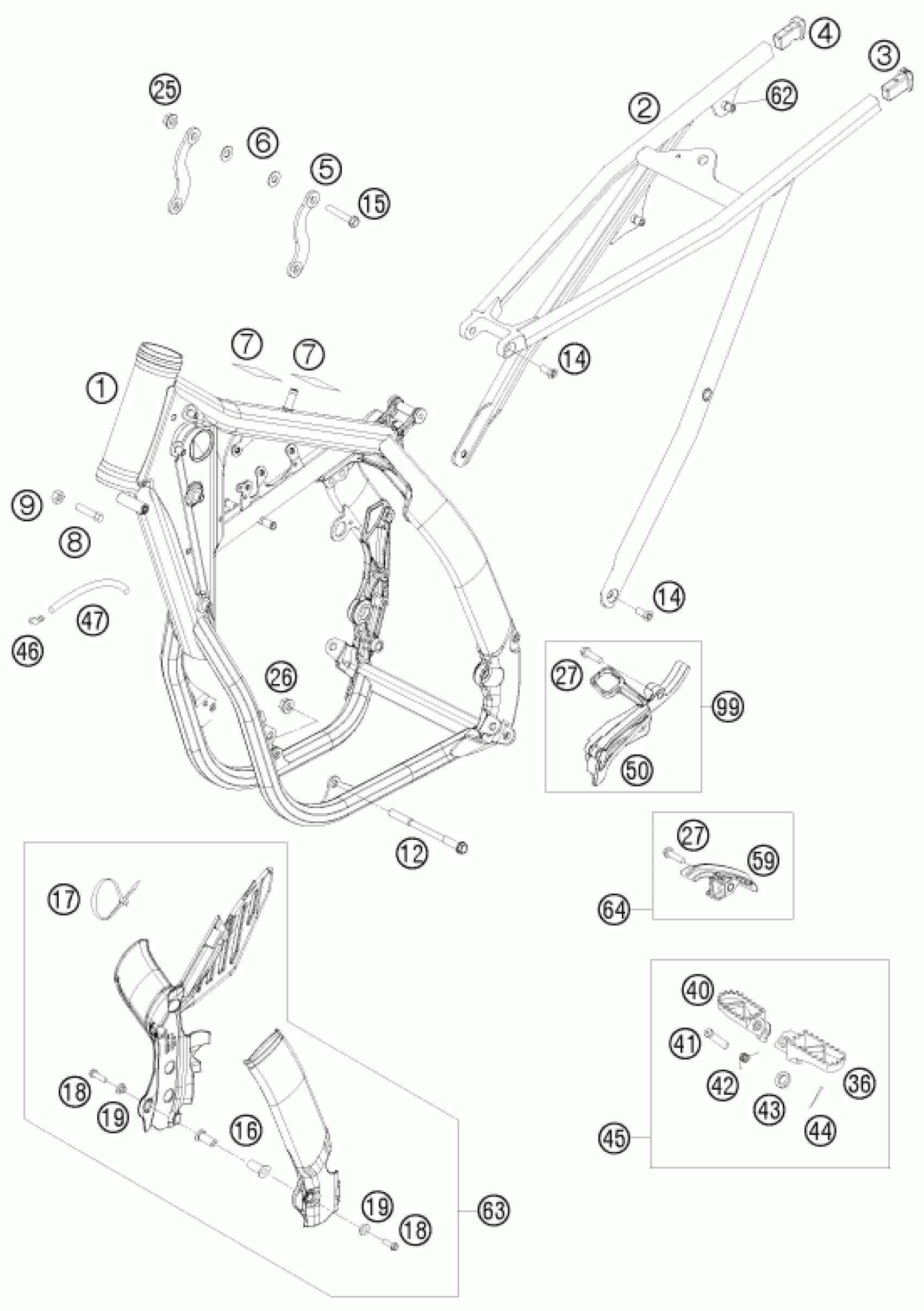

KTM 450 SX-F FACT.REPL.NAGL <2010> FRAME Diagram

#

Description
Price

3

SUB FRAME APPLICAT. LEFT 08

78003002010

Unavailable

4

SUB FRAME APPLICATION R/S 08

78003002020

Unavailable

5

ENGINE BRACE 450 SX-F 09

77303113000

$10.46

6

WASHER 8,5X18X1 INOX

77003013050

$3.08

7

ADH. FOIL TRANSP. 80X80 MM 04

50307012000

$2.05

8

SPECIAL SCREW M8X26 WS=10

59001037000

$3.08

9

Hexagon nut DIN934 M8

0934080003

$2.05

12

Enginebrac. screw M10X123 WS=1

59003013000

$9.44

14

FLAT HEAD SCREW M. ISA45 M8X20

0019080206S

$2.05

15

HH COLLAR SCREW M 8X44 WS13

56530079000

$3.08

16

BLIND PLUG-IN NUT M5 WN 22A 03

54803092050

$5.23

17

CABLE TIE 300/4,8MM BLACK

44011076305

$2.05

18

COU.SUNK SCR. AH ISO7380 M5X25

0738050250

$1.49

19

Bush f. frame protection 03

54803092060

$4.11

25

Self locking nut M8 10.9

54310086200

$3.08

26

SELF LOCKING NUT M10 CU WS=14

54310086100

$2.05

27

HH collar screw M8x30

0025080306

$3.08

36

FOOT PEG L/S SILVER 02

59003040250

$43.66

40

FOOT PEG R/S SILVER 02

59003041250

$43.66

41

PIN FOR FOOT PED 51.5X9.8 MM

54803044000

$12.43

42

FOOTREST SPRING L/S & R/S

54603041000

$5.23

43

washer DIN 125 A 10.5

0125100003

$2.05

44

PIN DIN0094-3,2X25 STEEL

0094032253

$1.49

45

FOOTPEG L.+R. CPL. 03

5030314013390

$167.45

46

ANGLE PIECE '97

50303089000

$5.23

47

PVC-HOSE 7X10 PER METER

55007016001

Unavailable

50

CHAIN SPROCKET COVER

77303096000

$15.42

59

Chain sliding piece, bottom

77303053000

$9.44

62

BLIND RIVET NUT EM6-60LF/HX

77303139000

Unavailable

63

PLASTIC FRAME PROTECTION SET

77303094100

$28.89

64

CHAIN SLIDING KIT BELOW CPL07

77303053010

$11.49

1

FRAME ORANGE ''JA10''

7730300130004

Unavailable

2

SUB FRAME SX ''Q7'' 07

77303002000

$379.79

99

SPROCKET COVER KIT

77303096010

Unavailable
