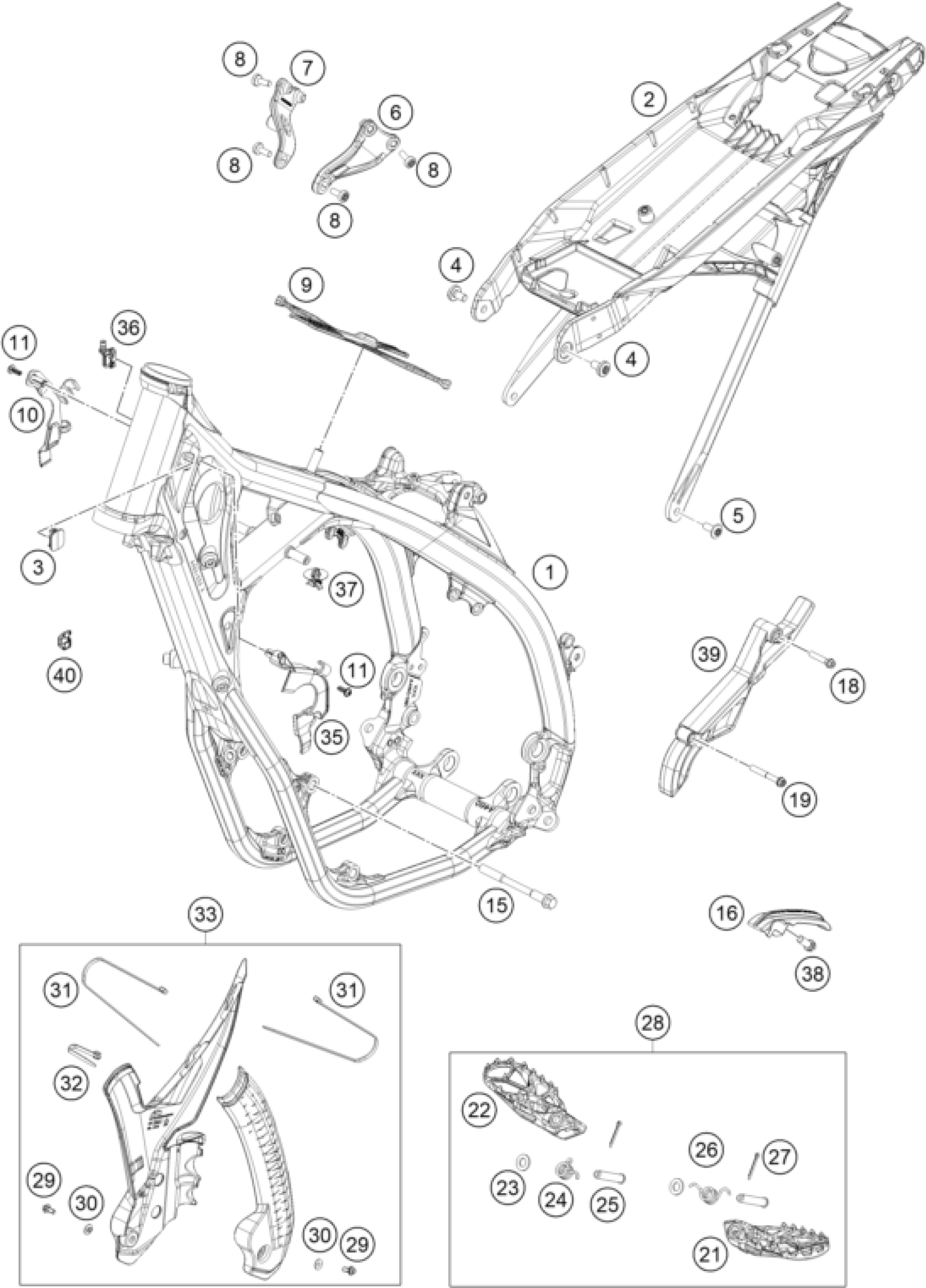

KTM 450 SX-F 2024 FRAME Diagram
#
Description
Price
1
Frame
A46003001000C1
$1,599.96
2
Subframe
A46003002000
$186.43
3
Cover control head sheet
79111013010
$2.05
4
Special screw M8x16 ISA45 self
09000008016U0
$1.49
5
Special screw M8X18 TORX45 SL
79003003000
$3.08
6
Engine brace left
A46003013000
$36.08
7
Engine brace, right
A46003014000
$37.58
8
SHCS M8x20 TX45
0035080206S
$5.32
9
Tank support rubber
A46007012000
$9.90
10
Cable bracket/throttle cable g
A46003099020
$4.11
11
EJOT PT screw K50x14
0081050141
$1.49
15
Enginebrac. screw M10X123 WS=1
59003013000
$9.44
16
Chain slider below
A46003053000
$6.35
18
HH collar screw M8x20
0025080206
$2.05
19
HH COLLAR SCREW M6X45 TX30
0025060456
$2.05
21
Foot grid left
A46003040000
$48.14
22
Foot peg right
A46003041000
$78.91
23
washer DIN 125 A 10.5
0125100003
$2.05
24
Footrest spring right
A46003045000
$1.49
25
PIN FOR FOOT PED 51.5X9.8 MM
54803044000
$12.43
26
Footrest spring left
A46003044000
$1.49
27
PIN DIN0094-3,2X25 STEEL
0094032253
$1.49
28
Footpeg set
A46003037033
$127.81
29
HH collar screw M5x10 TX30
0025050106
$1.49
30
Bush f. frame protection 03
54803092060
$4.11
31
CABLE TIE 300/4,8MM BLACK
44011076305
$2.05
32
CABLE TIE 140/2,5MM BLACK
44011076140
$1.49
33
Frame protection set
A46003094000C1
$37.20
35
Cable bracket
A46003099010
$4.11
36
wire holder / fuel ventilation
79107013010
$1.49
37
Cable bracket d8
79711013010
$1.49
38
HH collar screw M8x20
0025080206
$2.05
39
Front sprocket cover
A46003096000
$13.64
40
Cable protection
A49003099030
$4.39
