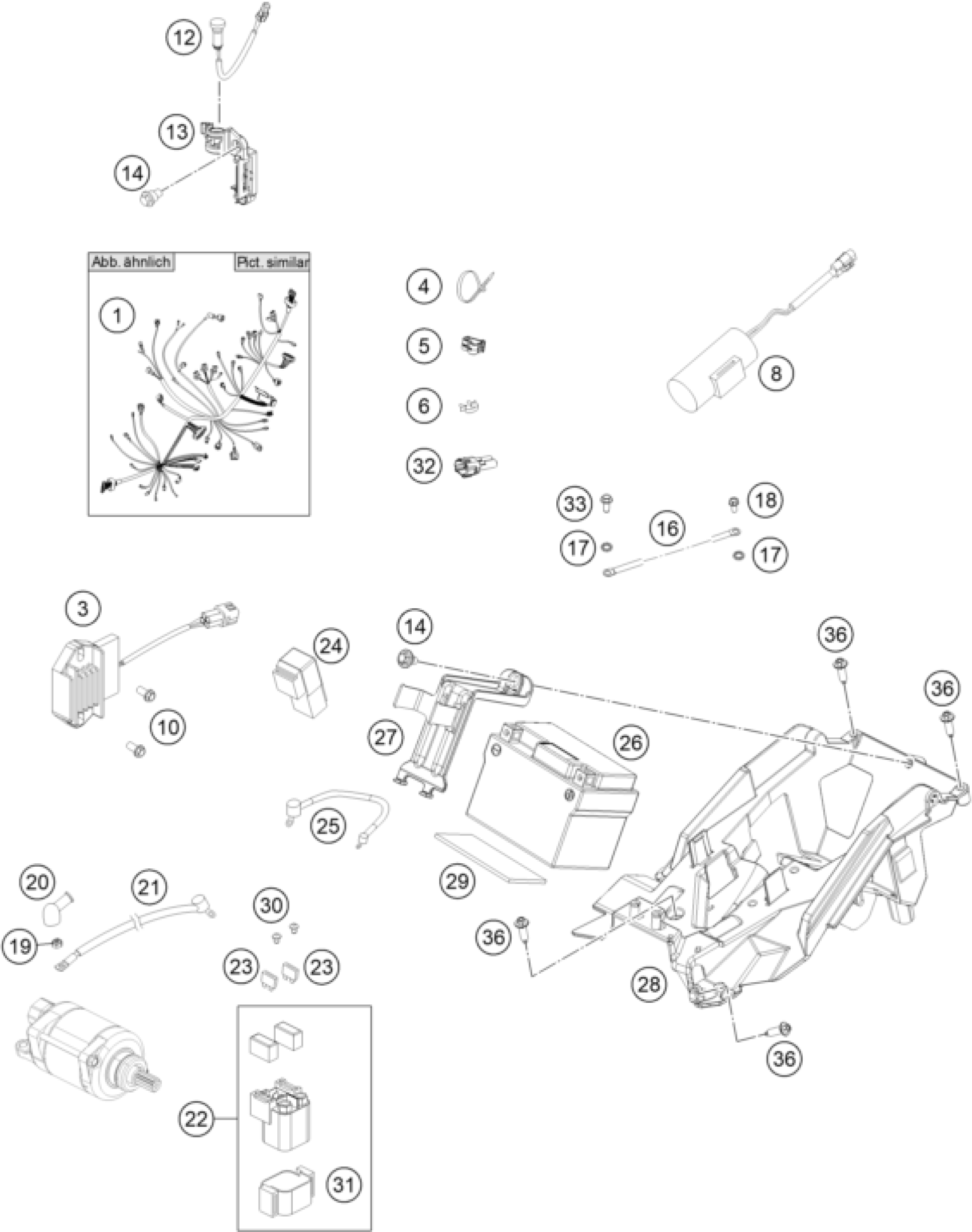

KTM 450 SX-F 2018 WIRING HARNESS Diagram

#

Description
Price

1

WIRING HARNESS 2017

79211075200

$370.72

3

Voltage regulator

77211034000

$188.39

4

CABLE TIE 140/2,5MM BLACK

44011076140

Unavailable

4

Cable tie 200/4.6mm black

44011076200

Unavailable

4

CABLE TIE 300/4,8MM BLACK

44011076305

Unavailable

5

Line guide

83013026000

$3.08

6

CABLE SUPPORT KHS NR.150-47610

58111076000

Unavailable

8

Capacitor

77711035000

$87.32

10

HH collar screw M6x20 TX30

0025060206

$3.08

12

INDICATOR LIGHT LED YELLOW FI

81214083000

$31.13

13

HOLDER INDICATOR LIGHT SX

77214098000

$4.11

14

SPECIAL SCREW M6X12,5 WS=8

59001092050

$2.05

16

GROUND CABLE D=6MM L=140MM '97

58411097100

$8.97

17

CONTACT WASHER M6 VSV-K6

58411098100

$2.05

18

EJOT SPIRAL SCREW SF M5X10-K

0009050106

$2.05

19

Self lock. nut DIN985-M6-A2

0985060003

$2.05

20

Protection cap for starter eng

77240099000

$6.35

21

STARTERCABLE 700 MM '97

58411059100

$23.65

22

Starter reley 12V 99

58211058000

$72.64

23

Plug-in fuse, big 10A

58011109110

$2.05

24

RELAY CM1A-R-12V-H80 07

61111057000

$16.82

25

WIRING HARNESS BATTERY DUKE'99

58711086000

$15.42

26

LITHIUM ION BATTERY 5S

77311953000

$166.05

27

BATTERY BOX SUPPORT

79011056100

$3.08

28

BATTERY BOX

79011055100

$37.86

29

METAMOLL 90X45X3MM 03

59003001099

$2.05

30

Oval head screw ISO 7380 M 6X8

0902060083

$1.49

32

END PLUG CAN-BUS 08

69011040000

$20.00

33

HH collar screw M5x12 TX30

0025050126

$3.08

36

SCREW FOR PLASTIC K60X20 SW6

0017060205

$2.05

31

BRACKET RUBBER F.STARTRELAY 07

58211058050

$5.23
