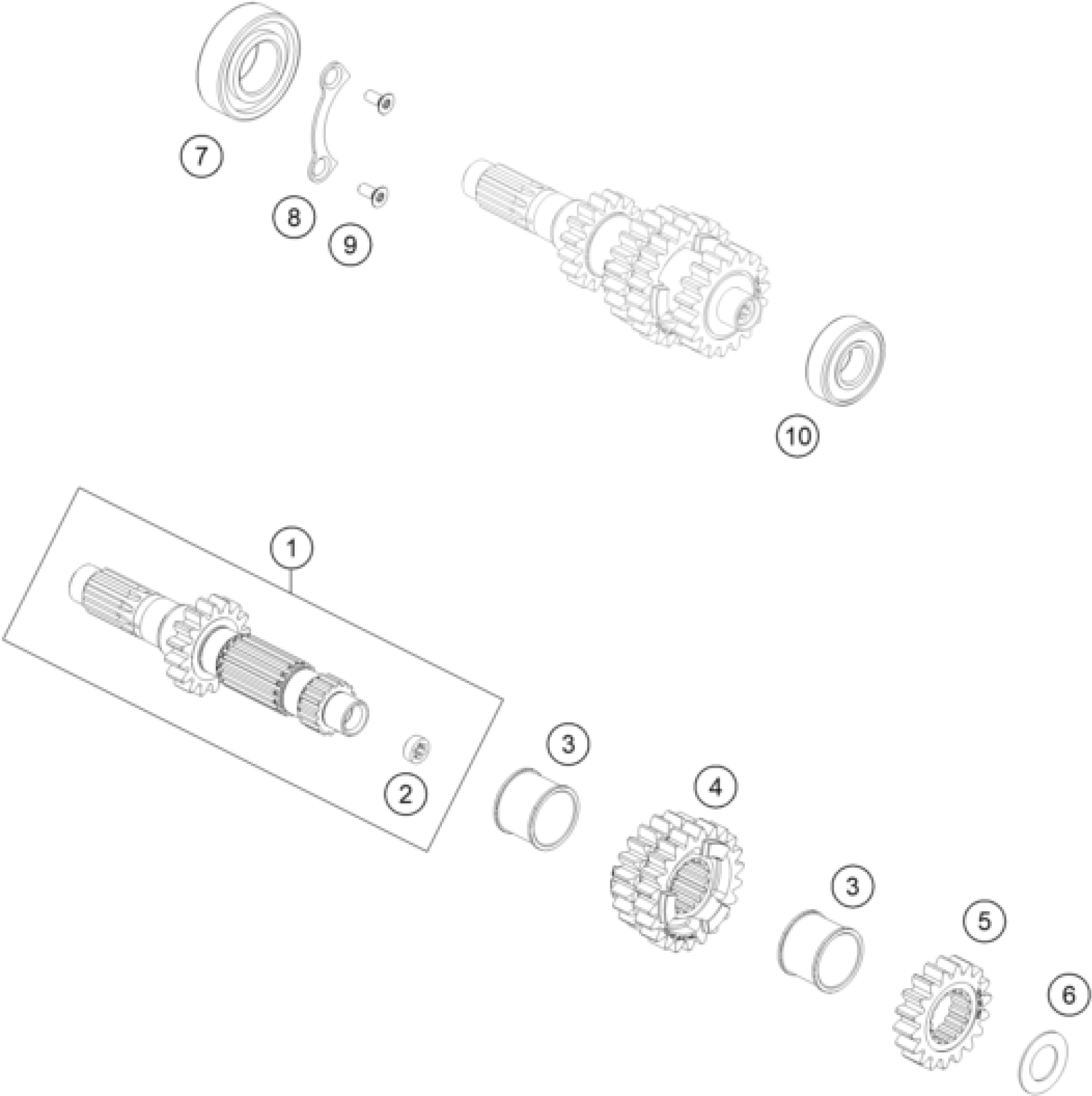

KTM 450 SX-F 2017 TRANSMISSION I - MAIN SHAFT Diagram

#

Description

Price

1

DRIVE SHAFT CPL.

79433001100

$193.07

2

BUSHING

78033001110

$11.40

3

SPACER SLEEVE

79433033000

$28.14

4

SLIDING GEAR 3RD/4TH G.

79433003000

$165.49

5

SOLID GEAR 2ND G.

79433002000

$68.62

6

STOP DISC 17,2X30X1

56033030000

$4.11

7

BALL BEARING 6205 C3 NTN

0625062054

$20.66

8

TAB WASHER BEARING MAIN SHAFT

78033032000

$5.51

9

INT. TORX FLAT HEAD M5X12 T25

0019050121S

$2.05

10

BALL BEARING 6203 RSH C3

0625062036

$16.17
