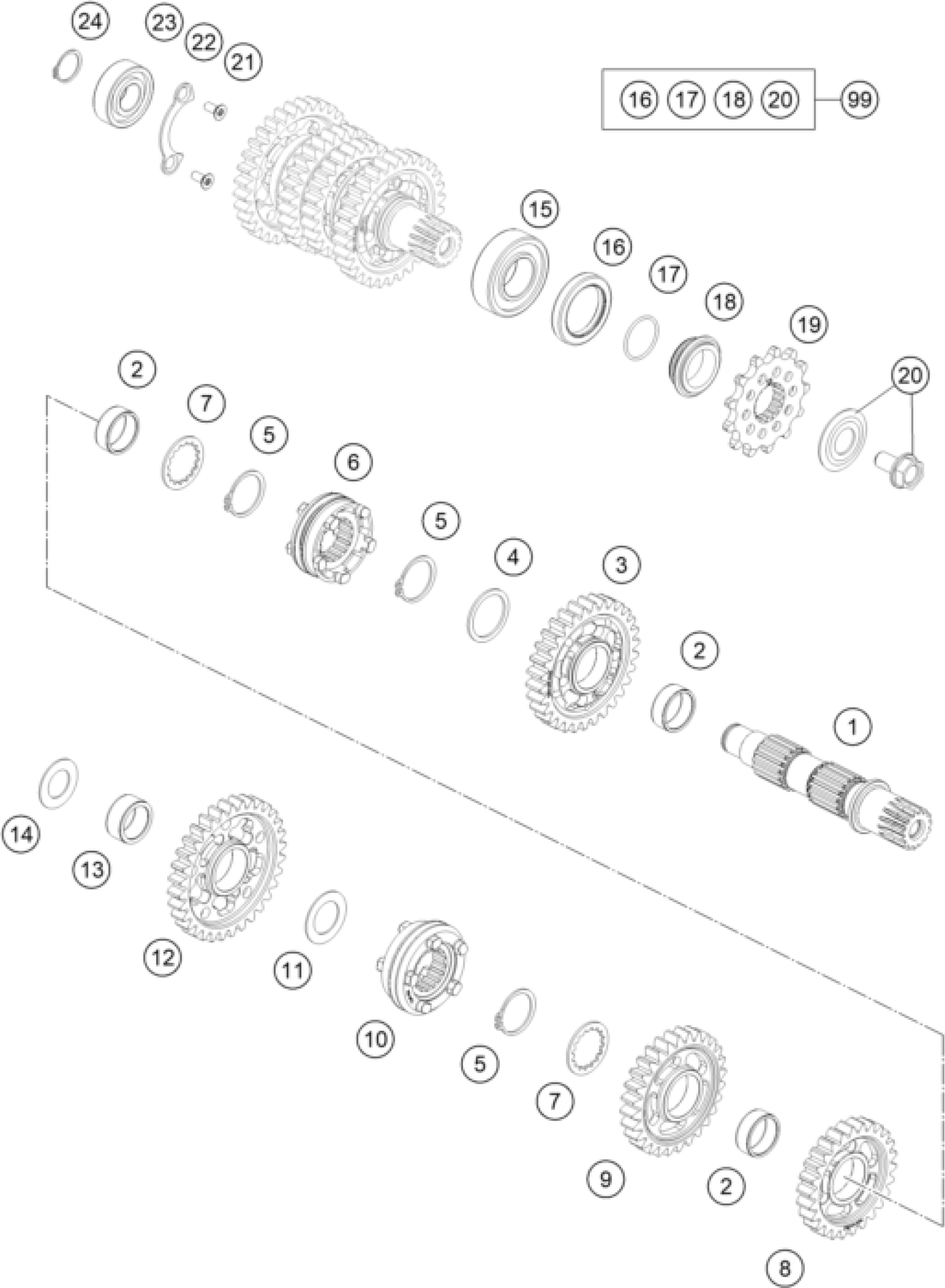

KTM 450 SX-F 2016 TRANSMISSION II - COUNTERSHAFT Diagram

#

Description
Price

5

CIRCLIP DIN0471-25X1,2

0471250120

$2.05

11

Shim 20x31.9x1

59033080000

$2.05

12

IDLER GEAR 1ST G.

79433011000

$120.51

1

DRIVEN SHAFT

79433010000

$115.74

2

NEEDLE BEAR.K 22X26X10 DIVIDED

0405222611

$11.68

3

IDLER GEAR 2ND G.

79433012000

$122.29

4

STOP DISK 26 X 32 X 1,5

78033031000

$3.08

6

SHFIT COLLAR

79433017000

$104.52

7

STOP DISK 23 X 32 X 1,5

78033033000

$3.08

10

SHIFT COLLAR

79433018000

Unavailable

13

NEEDLE BEARING K 20X26X12

0405202612

$10.93

14

STOP DISC 17,2X30X1

56033030000

$4.11

15

cylindrical roller bearing NJ2

49030023000

$74.42

20

SCREW 10.9+SPRING WASHER

59033034044

$7.85

21

INT. TORX FLAT HEAD M5X12 T25

0019050121S

$2.05

22

TAB WASHER BEARING COUNT.SHAFT

78033132000

$5.23

23

BALL BEARING 6203 JR2 C3

0625062035

$14.48

24

CIRCLIP DIN 0471-17X1, 5

0471170015

$1.49

16

SHAFT SEAL RING 32X45X7 BSLNBR

0760324571

$5.23

17

O-RING 25,12X1,78 NBR70

0770020220

$3.08

18

SPACER SLEEVE COUNTER

78133014000

$28.42

19

Sprocket 13-t

79233029013

$30.94

19

Sprocket 14-t

79233029014

Unavailable

8

IDLER GEAR 4TH G.

79433014000

$110.42

9

IDLER GEAR 3RD G.

79433013000

$112.66

99

COUNTER SHAFT REP.KIT 4 STROKE

00050000941

Unavailable
