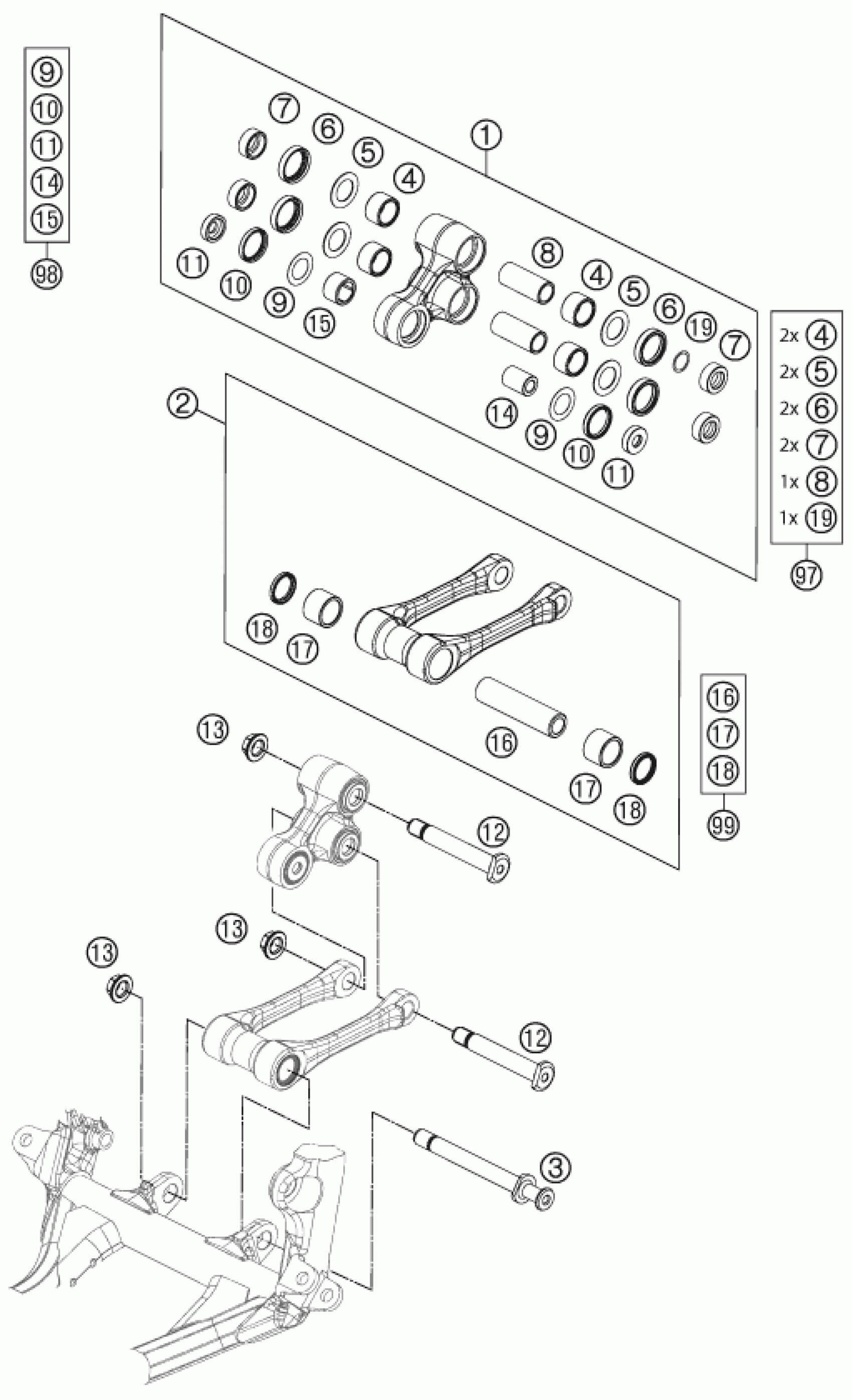

KTM 450 SX-F 2014 PRO LEVER LINKING Diagram

#

Description
Price

1

TRIANGLE LEVER CPL. SX 2013

7720408014401

$284.42

2

PULL ROD CPL.

7720408304401

$210.18

3

PULL ROD ANCHOR BOLT

77204084000

$48.70

4

Needle bushing HK 2016 / 20x26

54603097000

$15.04

5

Shim 20x31.9x1

59033080000

$2.05

6

radial shaft seal 25x32x7

0760253270

$6.63

7

Bucket f. shaft seal ring 25X1

77204080130

$10.93

8

Bushing sleeve 15x20x48

54603081000

$24.77

98

TRIANGLE LEVER REP. KIT FRONT

77204080090

Unavailable

9

Shim 29.75x19x0.4

50180604

$2.05

10

Radial shaft seal 24X30X5

0760243050

$5.23

11

Bucket f. shaft seal ring 24x6

77204080020

$9.90

12

Bolt triangle lever arm M14x1.

77204085000

$48.99

13

hex nut M14x1.5 WS17

77204087000

$2.05

14

Bearing sleeve 10x18x25.5

77204080010

$8.41

15

NEEDLE BUSH HN1816 RS 18/24/16

0618182416

$12.89

16

BEARING SLEEVE

77204084010

$22.15

17

NEEDLE BEARING HK2220 22X28X20

0618222820

$11.30

18

Radial shaft seal G22x28x4

0760222841

$4.11

19

Steel washer 15.2x19x0.1

54603090010

Unavailable

19

STEEL WASHER 15,2X19X0,2

54603090020

Unavailable

19

STEEL WASHER 15,2X19X0,3

54603090030

Unavailable

97

TRIANGLE LEVER REP. KIT REAR

77204080110

Unavailable

99

PULL ROD REP. KIT SX/SX-F

77204083010

Unavailable
