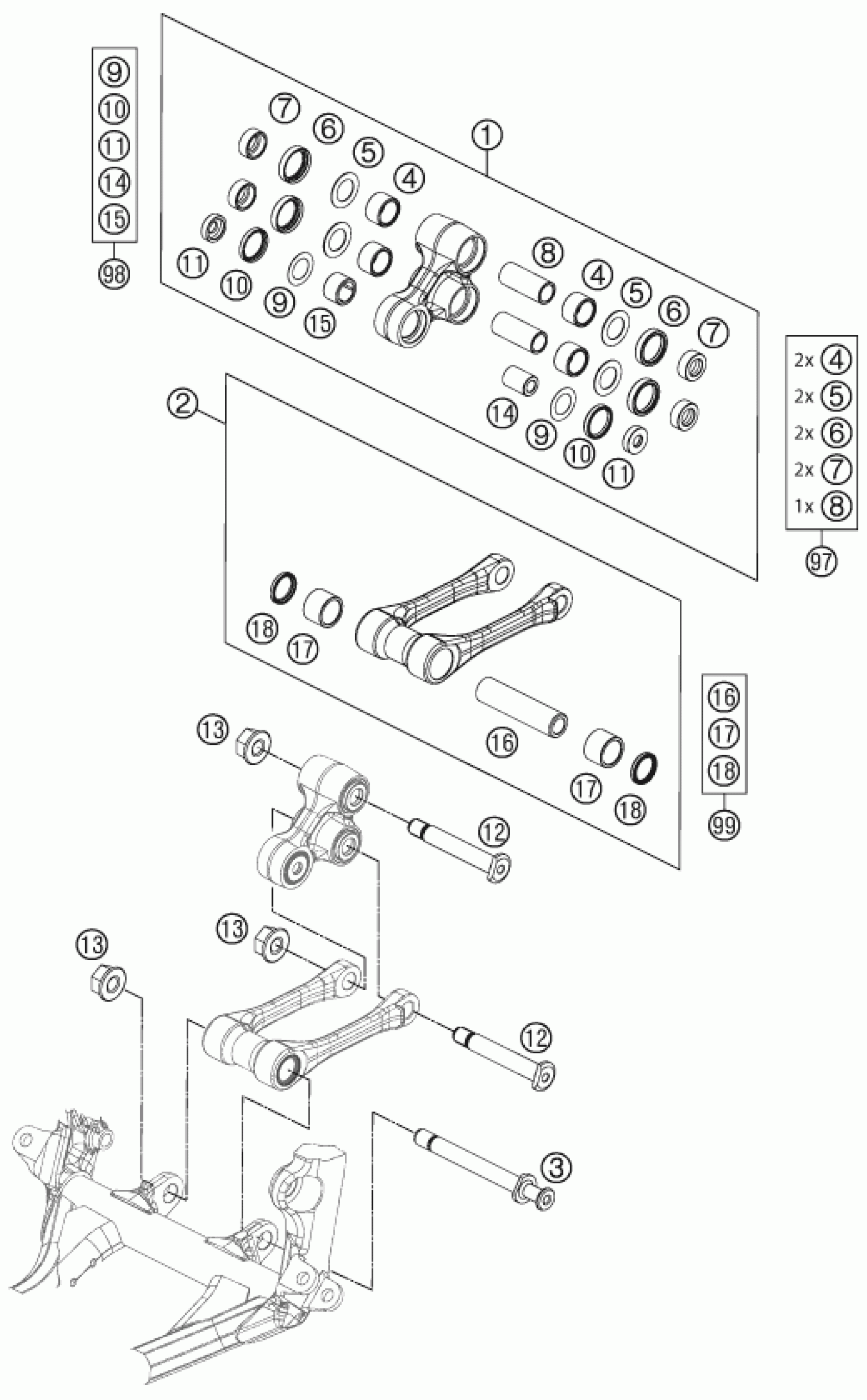

KTM 450 SX-F 2012 PRO LEVER LINKING Diagram

TRIANGLE LEVER CPL.

7720408004401

$284.42

PULL ROD CPL.

7720408304401

$210.18

PULL ROD ANCHOR BOLT

77204084000

$48.70

Needle bushing HK 2016 / 20x26

54603097000

$15.04

Shim 20x31.9x1

59033080000

$2.05

radial shaft seal 25x32x7

0760253270

$6.63

BUCKET FOR SHAFT SEAL RING

77204080030

$10.93

Bushing sleeve 15x20x48

54603081000

$24.77

Shim 29.75x19x0.4

50180604

$2.05

Radial shaft seal 24X30X5

0760243050

$5.23

Bucket f. shaft seal ring 24x6

77204080020

$9.90

BOLT FOR CANTILEVER M14

77204085100

$48.99

Self locking nut M14x1.5 WS19

54603015000

$5.51

Bearing sleeve 10x18x25.5

77204080010

$8.41

NEEDLE BUSH HN1816 RS 18/24/16

0618182416

$12.89

BEARING SLEEVE

77204084010

$22.15

NEEDLE BEARING HK2220 22X28X20

0618222820

$11.30

Radial shaft seal G22x28x4

0760222841

$4.11

TRIANGLE LEVER REP. KIT REAR

77204080100

Unavailable

TRIANGLE LEVER REP. KIT FRONT

77204080090

Unavailable

PULL ROD REP. KIT SX/SX-F

77204083010

Unavailable
