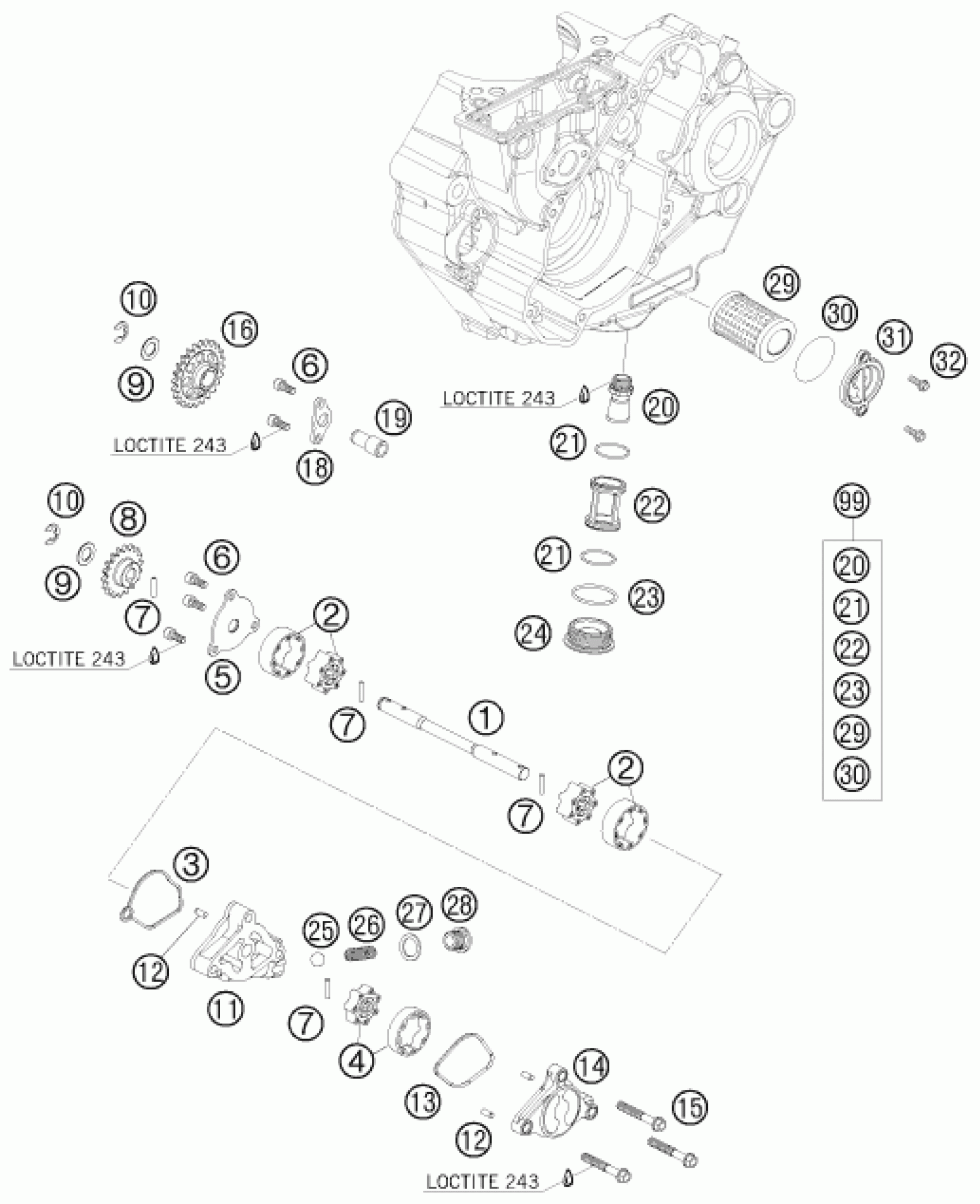

KTM 450 SX-F 2010 LUBRICATING SYSTEM Diagram

#

Description
Price

1

OIL PUMP SHAFT

77338002100

$23.74

2

SUCTION PUMP CPL.

77338107100

$36.42

3

GASKET PRESSURE PUMP CASE

77338012000

$7.56

4

PRESSURE PUMP PEEK D=9MM

77338207100

$42.08

5

PUMP COVER 07

77338004100

$7.66

6

AH SCREW DIN0912-M 5X12

0912050123

$2.05

7

NEEDLE ROLLER DIN5402 3X15,8

0402031580

$1.49

8

OIL PUMP GEAR 18-T

77338001100

$6.72

9

WASHER 10,2X18X1

77338023000

$2.05

10

retaining washer DIN 6799 - 8

0799080000

$1.49

11

PRESSURE PUMP CASE

77338010100

$31.22

12

Needle roll.DIN5402 NRB 4X9.8

0402040980

$3.08

13

GASKET PRESSURE PUMP COVER

77338112000

$7.56

14

PRESSURE PUMP COVER

77338013100

$25.42

15

HH collar screw M6x40 TX30

0025060406

$3.08

16

OILPUMP IDLER GEAR 24-T.

77338000150

$8.03

18

LOCK WASHER BEARING BOLT

77338061050

$4.11

19

BEARING BOLT

77338061000

$10.65

20

OIL INTAKE SNORKEL

77338022000

$11.49

21

O-RING 23,00X1,50 NBR 70

0770023015

$1.49

22

OIL SCREEN CPL.

77338016100

$12.99

23

O-RING 30X2,0 FPM

0770300020

$3.08

24

PLUG SCREW

77338019100

$28.42

25

BALL D=10 DIN 5401

0401100000

$1.49

26

COIL SPRING

77338026100

$3.08

27

CU-SEAL RING 14X20X1,5 LC8 02

0603142016

$3.08

28

PLUG SCREW M14X1,5 ALU AH

60038033050

$11.12

29

Oil Filter 07

77338005100

$9.34

30

O-RING 33,05X1,78

07703305178

$3.08

31

OIL FILTER COVER 08

77338041200

$11.68

32

HH collar screw M6x16 TX30

0025060166

$3.08

99

OILFILTER SERVICE KIT 450/505

00050000064

Unavailable
