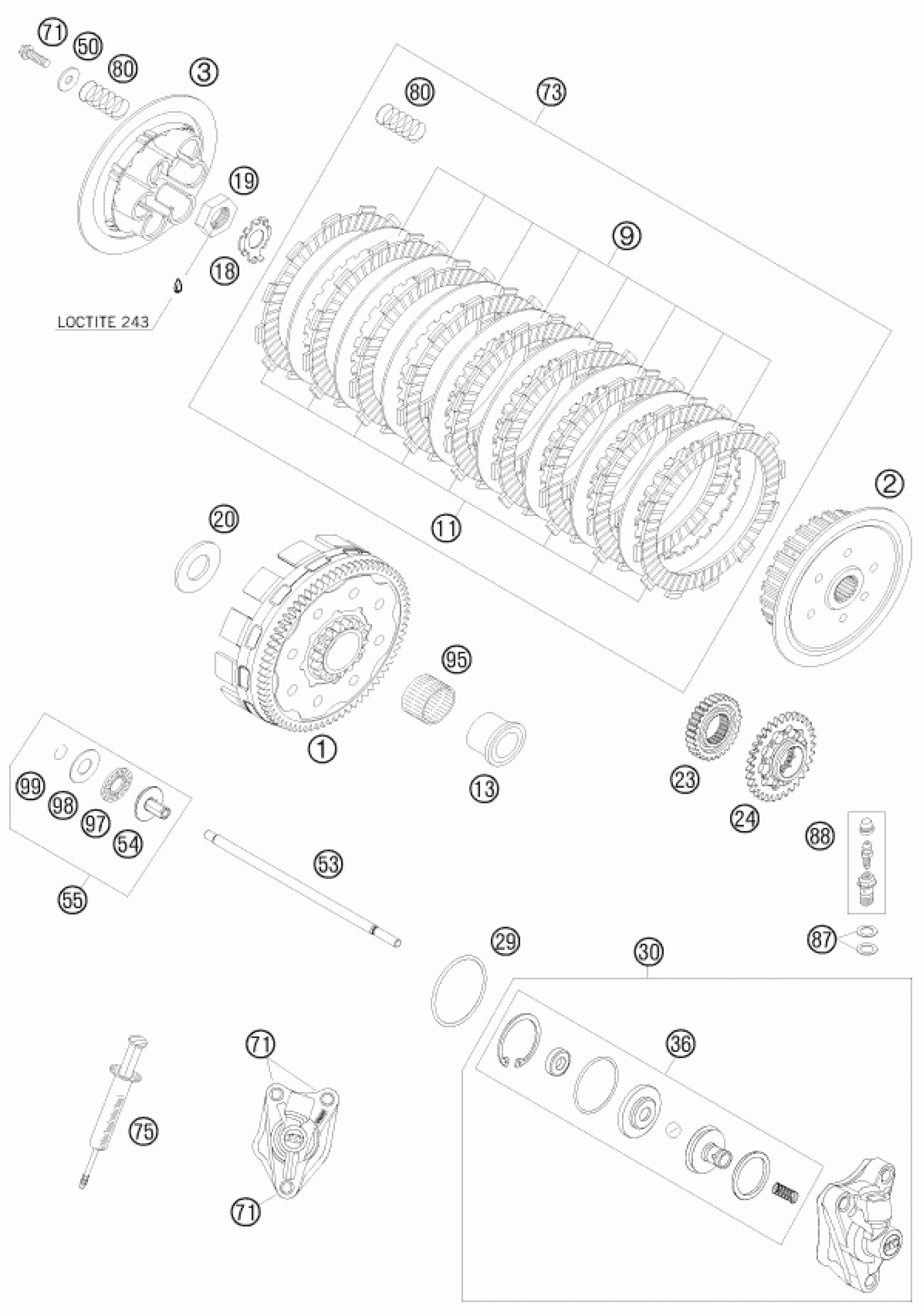

KTM 450 SX-F 2010 CLUTCH Diagram
#
Description
Price
11
LINING DISC 2,7MM
77332011000
$28.79
13
INNER RING
77332015100
$26.55
18
RETAINING PLATE
77332018000
$4.11
19
HEXAGON NUT DIN0936-M18X1,5 R.
0936181505
$7.75
20
WASHER 21,7X38X4 07
77332017100
$18.41
23
PRIMARY GEAR
77332023129
$133.51
24
DRIVE WHEEL AGZR KS Z=32
77330055110
$130.89
29
O-RING 38,00X2,00 NBR 70 SH
0770380020
$3.08
30
OUTPUT CYLINDER CPL.
77332061044
$295.64
36
PISTON CPL.
77332066000
$76.19
50
WASHER 6,2X18X2
50232050000
$5.23
73
CLUTCH-KIT 450/505 SX-F 07-13
77332011010
$280.40
1
OUTER CLUTCH CPL.
77332001344
$445.41
2
INNER CLUTCH HUB 08
77332002200
$157.73
3
PRESSURE PLATE
77332003000
$87.13
9
INTERMEDI. DISC STEEL
77332010000
$11.68
53
PUSH ROD 07
77332054100
$13.08
54
PRESSURE PIECE
77332057100
$13.36
55
PRESSURE PIECE CPL.
77332057144
$24.02
71
HH collar screw M6x25 TX30
0025060256
$3.08
75
VENT INJEKTION HYDR. CLUTCH
50329050000
$75.26
80
CLUTCH SPRING
77332005000
$9.62
87
CU-SEAL RING DIN7603-10X16X1
42013226000
$2.05
88
BLEEDER SCREW CPL. 05
62513020000
$27.48
95
NEEDLE BEARING K26X30X22ZW.KSE
56532095000
$23.83
97
AXIAL NEEDLE BEARING AXK 1226
54637097200
$10.18
98
AXIAL WASHER AS1226 12X26X1
54637098200
$5.23
99
CIRCLIP DIN7993-RW12
0993012000
$3.08
