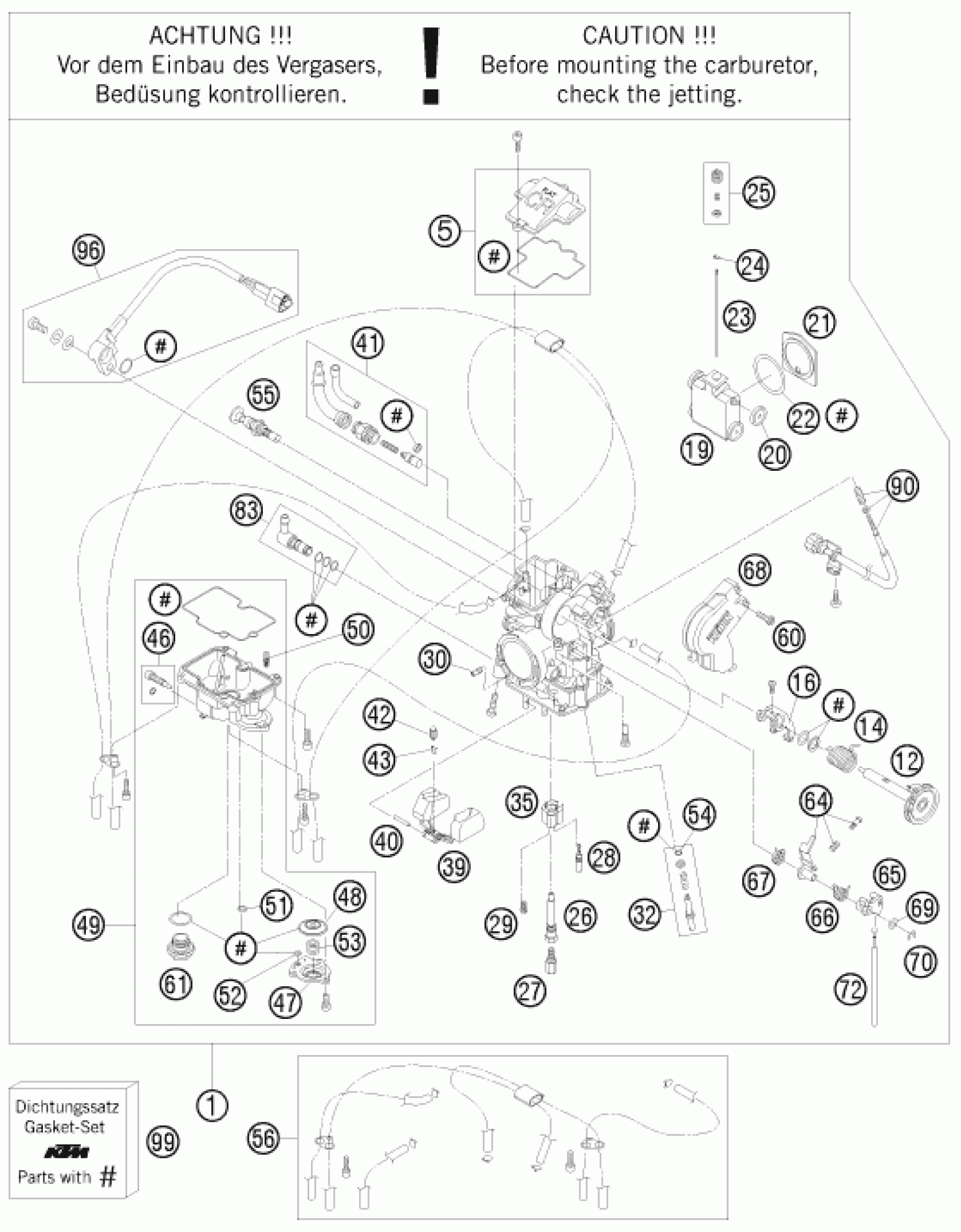

KTM 450 SX-F 2010 CARBURETOR Diagram

#

Description
Price

1

CARBURETOR FCR-MX 4125M ,TPS

77331001200

$1,034.37

5

CARBURETOR COVER WITH GASKET

57331027044

$39.26

12

THROTTLE SHAFT CPL. 06

57331046100

$91.58

14

COIL SPRING THROTTLE SHAFT

57331046050

$9.15

16

LINK ARM THROTTLE VALVE CPL.07

76231035051

$93.77

19

THROTTLE VALVE CPL. FCRMX 2007

57331035100

$346.15

20

BUSHING THROTTLE VALVE

59031035050

$10.65

21

GASKET PLATE THROTTLE VALVE 04

57331035153

$191.85

22

GASKET WASHER THROTTLE VALVE

59031035052

$17.94

23

JET NEEDLE KEIHIN OBDTM

59031021000

Unavailable

23

JET NEEDLE KEIHIN OBDTN

59031034000

Unavailable

23

JET NEEDLE KEIHIN OBDTP

59031034400

Unavailable

23

JET NEEDLE KEIHIN OBDTQ

59031034500

Unavailable

23

JET NEEDLE KEIHIN OBDTR

59031034600

Unavailable

24

BAR CLIP

59031029000

$5.23

25

NEEDLE SET SCREW CPL.

57331032000

$40.10

26

NEEDLE JET FCR-MX

59031121000

$32.72

27

MAIN JET 180 KEIHIN

54531623180

Unavailable

27

MAIN JET 182 KEIHIN

54531623182

Unavailable

27

MAIN JET 185 KEIHIN

54531623185

Unavailable

27

MAIN JET 188 KEIHIN

54531623188

Unavailable

27

MAIN JET 190 KEIHIN

54531623190

Unavailable

27

MAIN JET 192 KEIHIN

54531623192

Unavailable

27

MAIN JET 195 KEIHIN

54531623195

Unavailable

28

IDLE JET 40 KEIHIN

54531607040

Unavailable

28

IDLE JET 42 KEIHIN

54531607042

Unavailable

28

IDLE JET 45 KEIHIN

54531607045

Unavailable

29

STARTER JET 85

59031051085

$16.73

30

IDLE AIR JET 100 KEIHIN

57331107100

$14.76

32

ADJUST SCREW CPL. FCR-MX

59031017100

$19.63

35

BUFFER PLATE

57331085000

$12.33

39

FLOAT CPL.

57331009000

$59.64

40

ARM PIN FLOAT

57331008000

$2.05

41

HOT-STARTER VALVE

77031075000

$34.84

42

FLOAT NEEDLE

54631220000

$31.41

43

CLAMP

54531621000

$4.11

46

DRAIN SCREW + O-RING

76231155000

$8.97

47

COVER ACCELERATOR PUMP

57331060000

$27.01

48

DIAPHRAGM ACCELERATOR PUMP

57331057100

$30.66

49

FLOAT CHAMBER CPL. 08

78031011000

$178.48

50

JET POWER JET CLOSED KEIHIN

54631085000

Unavailable

50

JET POWER JET 40 KEIHIN

54631085040

Unavailable

50

JET POWER JET 50 KEIHIN

54631085050

Unavailable

50

JET POWER JET 60 KEIHIN

54631085060

Unavailable

50

JET POWER JET 70 KEIHIN

54631085070

Unavailable

51

O-RING

59031058100

$3.08

52

U-RING

59031058000

$3.08

53

COIL SPRING

59031059000

$7.38

54

O-RING ADJUSTING SCREW

54831072000

$2.05

55

STARTER VALVE SHORT CPL.

77031048000

$80.31

56

BREATH.HOSE FCR-MX KEIHIN CPL.

57331098000

$107.52

60

FLAT HEAD SCREW DIN0965-M 5X10

0965050103

$2.05

61

PLUG M 18X1

54531699000

$20.09

64

INTERMEDIATE LEVER CPL.

57331062000

$33.28

65

LINK LEVER

57331056000

$8.13

66

SXS ACCELERATION PUMP SPRING

SXS08250030

$5.80

67

SPRING INTERMEDIATE LEVER

57331159000

$10.84

68

CARBURETOR COVER 06

57331038200

$8.13

69

WASHER LINK LEVER

57331087000

$2.05

70

E-CLIP

57331084000

$2.05

72

ROD ACCELERATOR PUMP

57331061000

$26.73

83

HOSE CONNECTOR CPL.

59031013044

$65.35

90

STOP SCREW CPL. FCR-MX

57331025000

$56.65

96

TPS-SENSOR FCRMX 190MM 2006

59031077200

$144.64

99

GASKET SET FCR-MX KEIHIN

57331099000

$119.67
