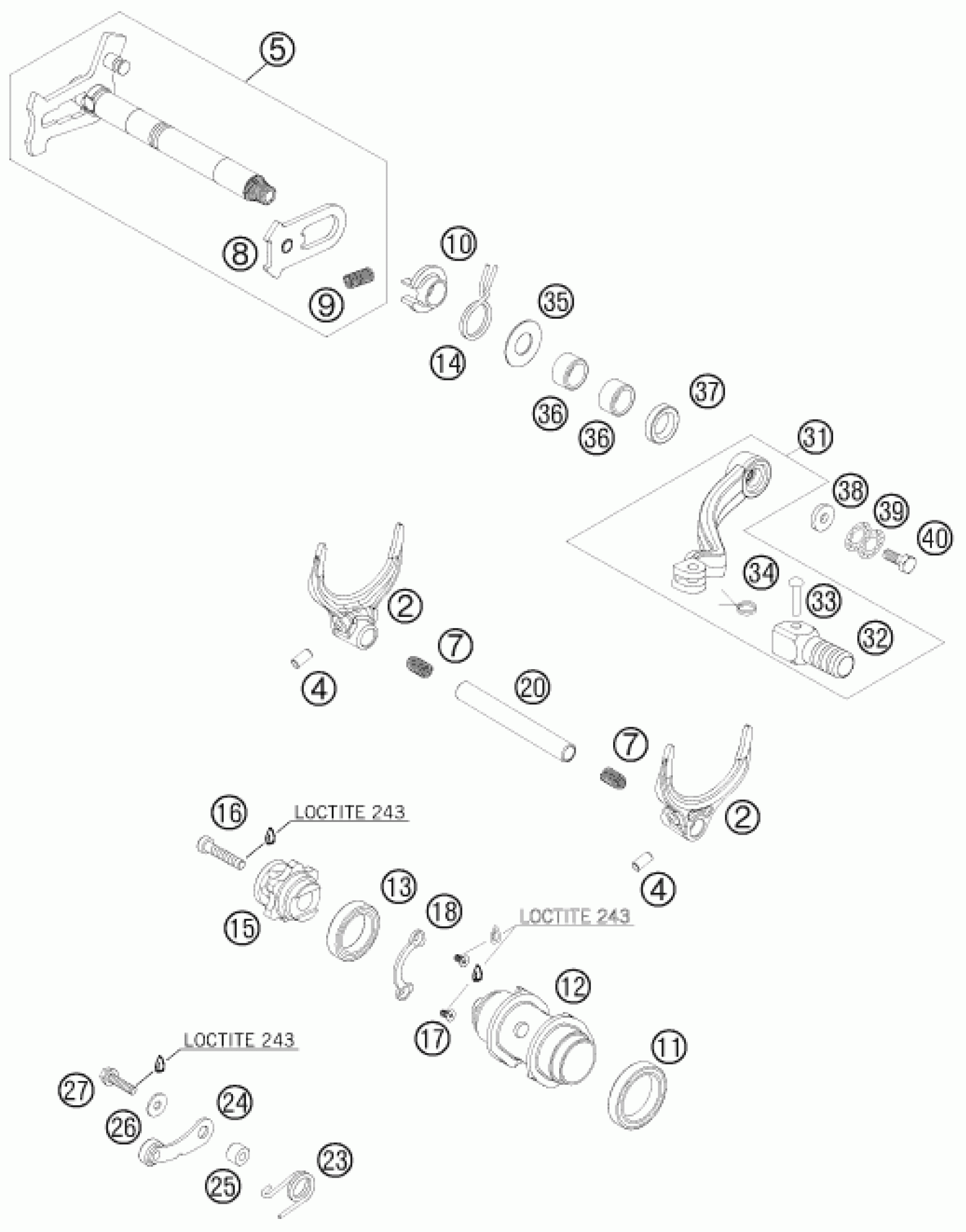

KTM 450 SX-F 2009 SHIFTING MECHANISM Diagram

#

Description
Price

24

LOCATING LEVER CPL. 08

50334024144

$14.58

25

SLEEVE FOR LOCKING LEVER

54634052300

$3.08

2

SHIFTING FORK

77334203100

$69.74

4

CYLINDER ROLLER 6X12

0402060120

$4.11

5

SHIFT SHAFT CPL. 07

77334005044

$102.00

7

PRESSURE SPRING 0,9MM

58038023200

$4.11

8

SLIDING PLATE CPL.

54634008044

$10.46

9

TENSIONING SPRING 0,8MM

56534013100

$1.49

10

SPRING GUIDE

54634020000

$6.44

11

BALL BEARING 61806

0625061806

$23.83

12

SHIFT ROLLER 4G 60.5 07

77334212200

$61.91

13

BALL BRG 6805 C4 NTN JAPAN

0625068050

$43.94

14

RETURN SPRING 03

54834014000

$4.11

15

SHIFT LOCATING DRUM CPL.

77334015000

$43.94

16

AH SCREW DIN6912 M6X30 8.8

0012060303

$1.49

17

INT TORX FLAT HEAD M 5X10 8.8

0019050103

$2.05

18

BUSHING RETAINING PLATE

77334090000

$4.11

20

SHIFT RAIL

77334020000

$8.88

23

ARRESTING LEVER SPRING 03

60034023000

$2.05

26

washer DIN 9021 A - 5.3

0021050003

$1.49

27

HH collar screw M5x20 TX30

0025050206

$2.05

31

SHIFT LEVER CPL. 2-STROKE 2001

54734031000

$79.09

32

STEP PLATE FOR SHIFT LEVER 250

54634131000

$31.59

33

BOLT 6X25 FOR SHIFT LEVER

54634031050

$7.85

34

SHIFTING LEVER SPRING 250

54634032100

$3.08

35

STOP DISK 14X30X1

54634050000

$2.05

36

needle sleeve HK 1412 14x20x12

54632095000

$7.00

37

radial shaft seal 14x24x6 B

0760142460

$9.25

38

STEEL WASHER 6,4X17X3

50232050001

$5.23

39

Pair of washers M6 NORDLOCK

50233041000

$4.11

40

HH SCREW DIN0933-M 6X16 10.9

0933060165

$2.05
