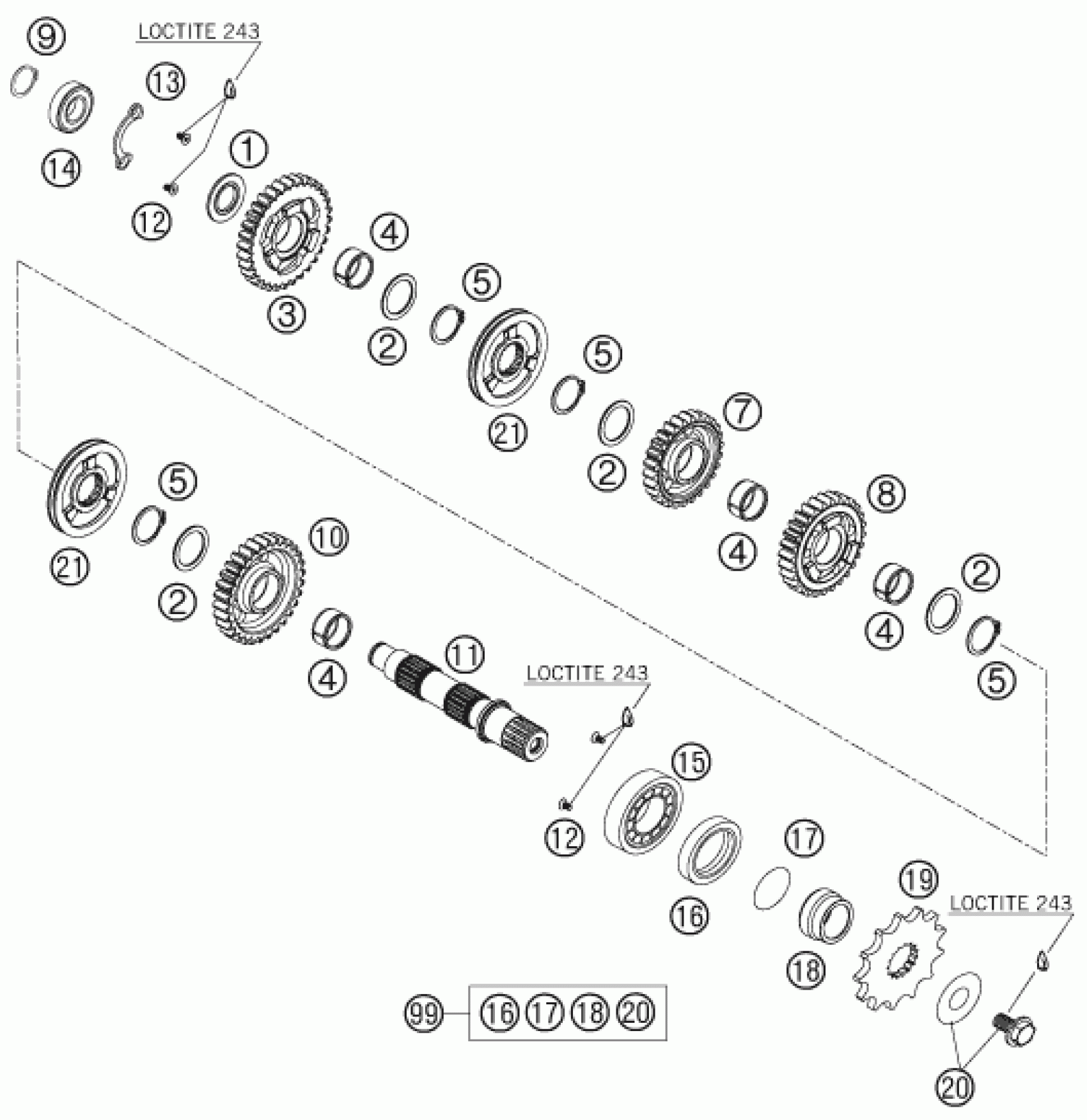

KTM 450 SX-F 2007 TRANSMISSION II - COUNTERSHAFT Diagram

STOP DISC 32X17X2,2

77333243100

$4.35

IDLER GEAR 1ST G 32-T

77333211100

$62.66

STOP DISC 35X25X1

77333244200

$5.22

NEEDLE BEAR. K 22X26X13 TN

0405222613

$9.15

CIRCLIP DIN0471-25X1,2

0471250120

$2.05

IDLER GEAR 4 G 26-T

77333214100

$63.79

IDLER GEAR 3 G 28-T

77333213100

$54.80

IDLER GEAR 2 G 30-T

77333212100

$53.71

COUNTERSHAFT

77333210100

$181.09

INT TORX FLAT HEAD M 5X10 8.8

0019050103

$2.05

BUSHING RETAINING PLATE

77333024100

$4.11

BALL BEARING 6203 RSH C3

0625062036

$16.17

CYL.ROLLER BEARING NUP205E C3

0402255215

$79.75

Radial shaft seal 35X47X7 TC

0760354771

$8.69

FRONT SPROCKET 14-T

50033029014

$30.94

FRONT SPROCKET 15-T

50033029015

Unavailable

SCREW 10.9+SPRING WASHER

59033034044

$7.85

CIRCLIP DIN 0471-17X1, 5

0471170015

$1.49

SPACER BUSHING

77333219000

$16.46

O-RING 25,00X1,50 NBR 70

0770250015

$1.49

SHIFT RING

77334205000

$71.98

FRONT SPROCKET 13-T

50033029013

Unavailable

COUNTER SHAFT REP.KIT 4 STROKE

00050000945

Unavailable
