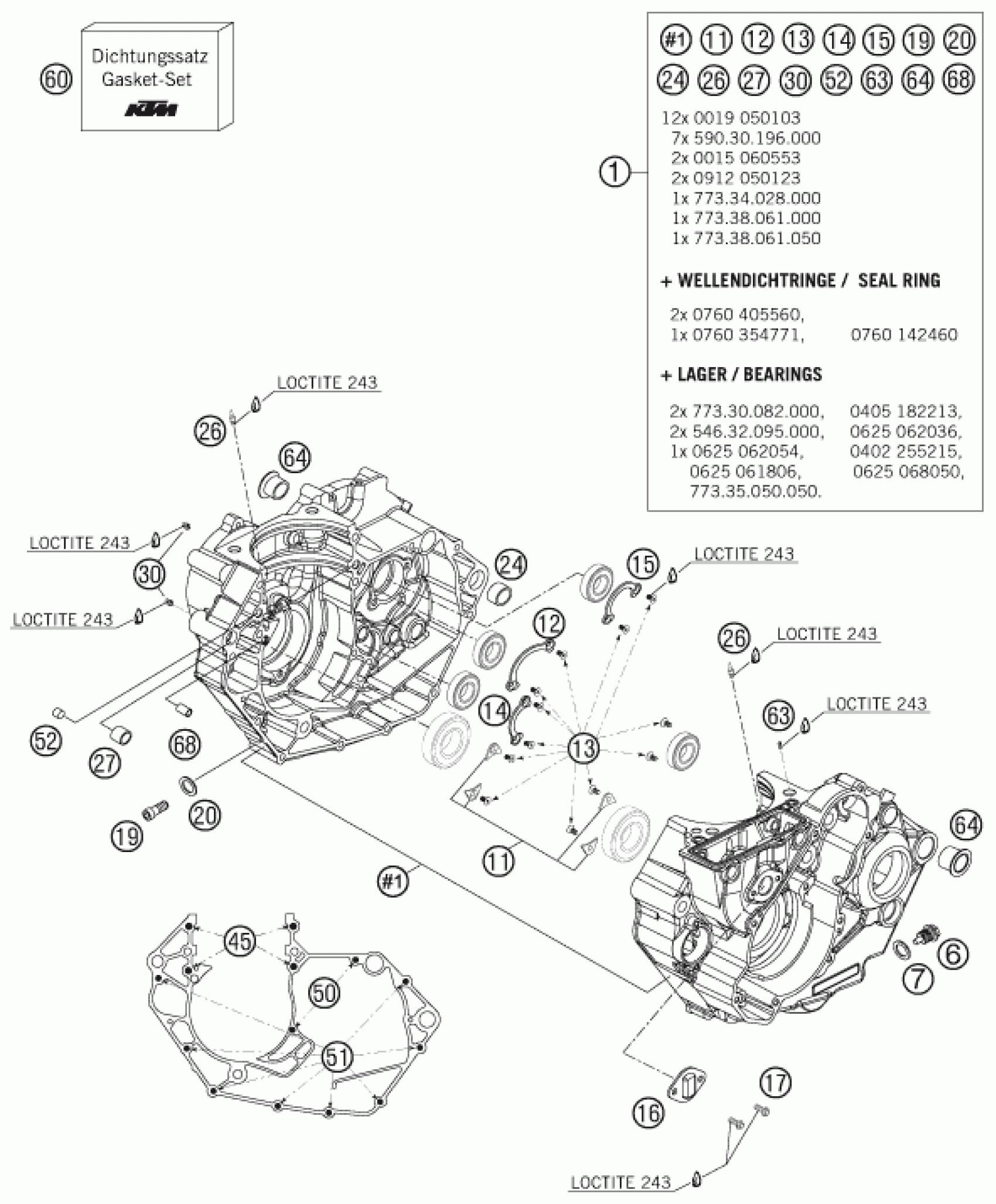

KTM 450 SX-F 2007 ENGINE CASE Diagram

#

Description
Price

45

HH COLLAR SCREW M7X1X70

77330067070

$14.11

50

HH COLLAR SCREW M 6X70 WS=8

0015060703

$3.08

51

HH COLLAR SCREW M 6X55 WS=8

0015060553

$1.49

52

CYLINDER ROLLER ZRO. 8,0X12 M4

0402080120

$2.05

60

GASKET SET 450/505 SX-F

77330099000

$387.27

63

THROTTLE M5X10X1

77338029052

$9.90

64

CASE BUSH

75030010000

$8.59

68

dowel sleeve 6x8x11.5

59030023000

$1.49

1

ENG CASE CPL. W.TR.BEAR. 07

77330000144

$1,204.99

6

OILDRAIN PLUG W.MAG. M 12X1,5

58030021000

$11.30

7

CU-seal ring DIN7603-12X18X1.5

58038022000

$2.05

19

AH SCREW DIN6912-M 8X20

0012080203

$1.49

20

SEAL RING CU DIN7603- 8X12X1

0603082121

$3.08

24

DOWEL 17 X 19 X 12

59030024000

$5.23

26

oil jet 50 M5

60030063050

$9.44

27

DOWEL BUSHING 13,8X11X12

54630027000

$6.91

30

JET 100 BING(44-031/180) M4

59030058000

$4.11

16

RETAINING PLATE

77336075050

$5.23

17

HH COLLAR SCREW M 5X10 WS=8

0015050103

$1.49

15

BUSHING RETAINING PLATE

77333024100

$4.11

14

BUSHING RETAINING PLATE

77334090000

$4.11

13

INT TORX FLAT HEAD M 5X10 8.8

0019050103

$2.05

11

BUSHING RETAINING PLATE

77330085000

$4.11

12

BUSHING RETAINING PLATE

77333022100

$4.11
