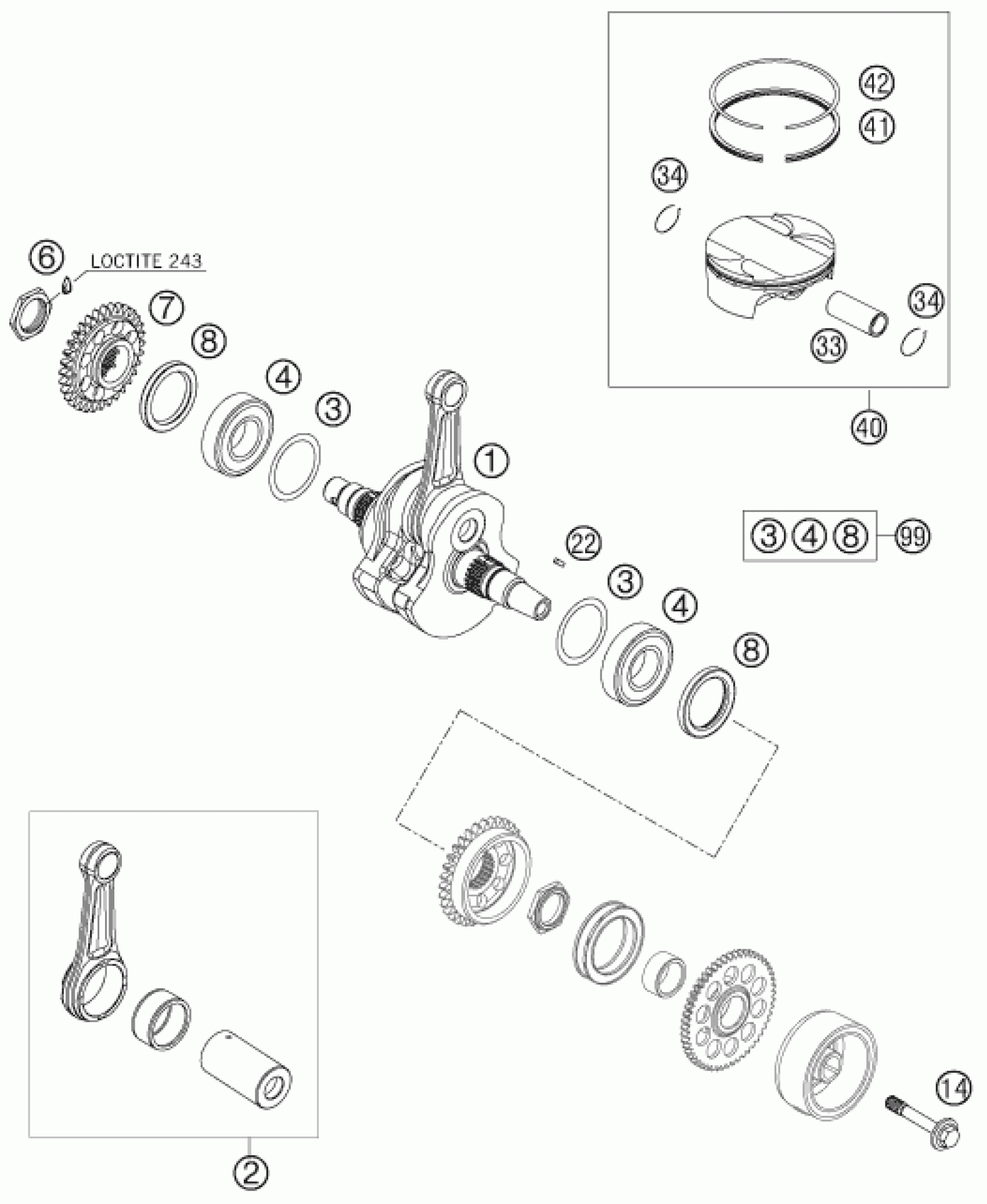

KTM 450 SX-F 2007 CRANKSHAFT, PISTON Diagram

#

Description
Price

2

CONNECTING ROD REPAIR SET

77330015144

$645.42

1

CRANKSHAFT CPL.

77330018200

$1,167.25

3

THRUST WASHER 30X42X0,1

0988304201

Unavailable

4

CYL. ROLLER BEARING NJ206 ECP

77330082000

$80.50

6

COLLAR NUT M27X1

77330029000

$10.84

7

PRIMARY GEAR CPL. 07

77332023177

Unavailable

8

SHAFT SEAL RING A40x55x6 VITON

0760405560

$11.87

22

WOODRUFF KEY DIN6888-3X3,7

0888030037

$2.05

33

PISTON PIN

77330033000

$35.24

34

CIRCLIP

77330074000

$13.08

40

PISTON I CPL. D=97MM 2007

77330007100 I

$298.08

40

PISTON II CPL. D=97MM 2007

77330007100 II

$497.69

41

OIL SCRAPER RING

77330032100

$29.55

42

COMPRESSIONRING D=97 2007

77330030100

$43.19

3

THRUST WASHER 30X42X0,2

0988304202

Unavailable

3

THRUST WASHER 30X42X0,3

0988304203

Unavailable

14

FLYWHEEL SCREW

77339010000

$19.16

99

CRANKSHAFT REP. KIT 450 SX-F

00050002304

Unavailable
