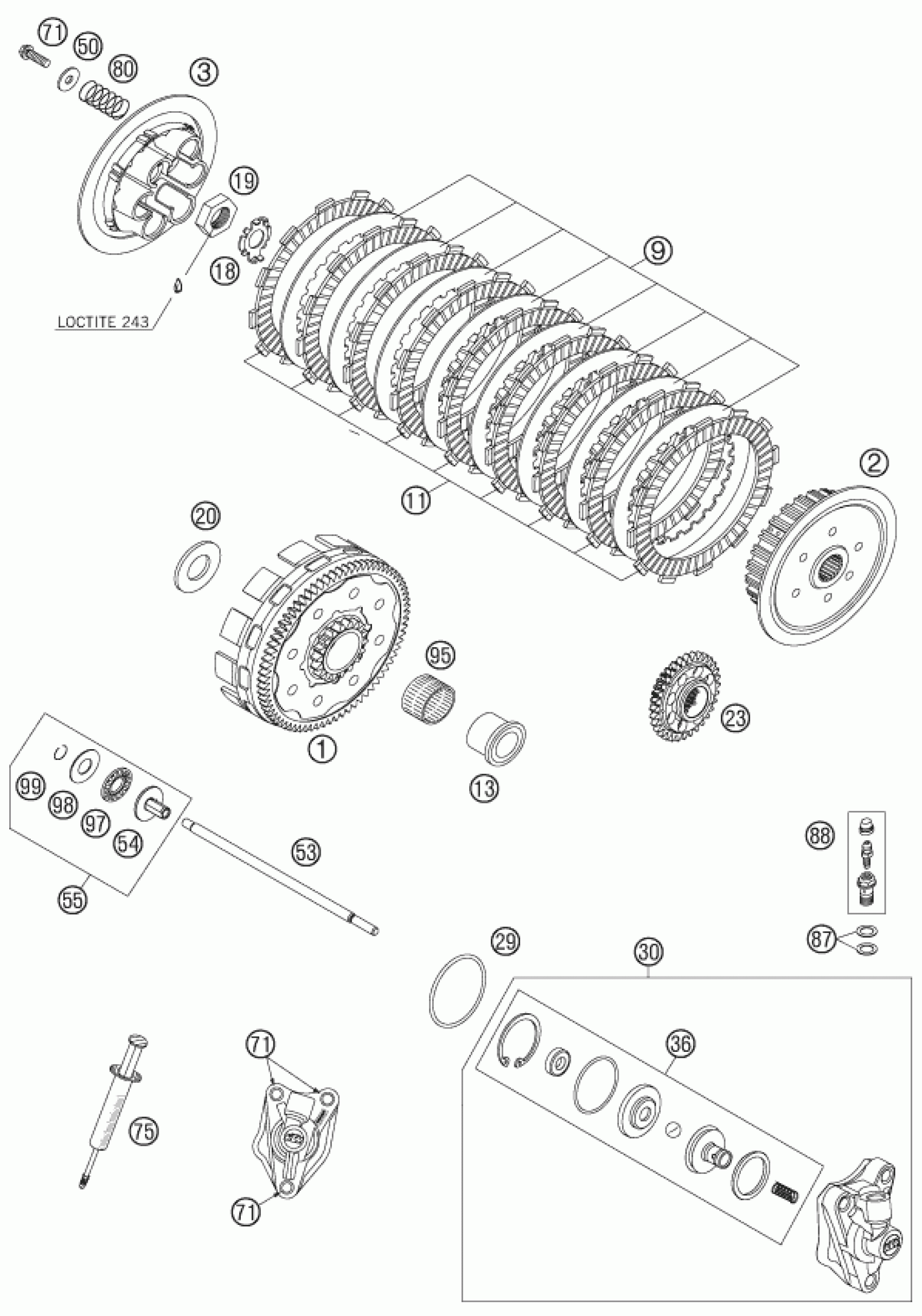

KTM 450 SX-F 2007 CLUTCH Diagram

#

Description
Price

75

VENT INJEKTION HYDR. CLUTCH

50329050000

$75.26

80

CLUTCH SPRING

77332005000

$9.62

87

CU-SEAL RING DIN7603-10X16X1

42013226000

$2.05

88

BLEEDER HOLLOW SCREW M10X1

54813020000

$27.48

95

NEEDLE BEARING K26X30X22ZW.KSE

56532095000

$23.83

97

AXIAL NEEDLE BEARING AXK 1226

54637097200

$10.18

98

AXIAL WASHER AS1226 12X26X1

54637098200

$5.23

99

CIRCLIP DIN7993-RW12

0993012000

$3.08

29

O-RING 38,00X2,00 NBR 70 SH

0770380020

$3.08

30

OUTPUT CYLINDER CPL.

77332061044

$295.64

36

PISTON CPL.

77332066000

$76.19

50

WASHER 6,2X18X2

50232050000

$5.23

55

PRESSURE PIECE CPL.

77332057144

$24.02

13

INNER RING

77332015100

$26.55

18

RETAINING PLATE

77332018000

$4.11

19

HEXAGON NUT DIN0936-M18X1,5 R.

0936181505

$7.75

20

WASHER 21,7X38X4 07

77332017100

$18.41

23

PRIMARY GEAR CPL. 07

77332023177

Unavailable

53

PUSH ROD 07

77332054100

$13.08

54

PRESSURE PIECE

77332057100

$13.36

71

HH COLLAR SCREW M 6X25 WS=8

0015060253

$3.08

1

OUTER CLUTCH CPL.

77332001144

$359.19

2

INNER CLUTCH HUB

77332002000

$95.86

3

PRESSURE PLATE

77332003000

$87.13

9

INTERMEDI. DISC STEEL

77332010000

$11.68

11

LINING DISC 2,7MM

77332011000

$28.79
