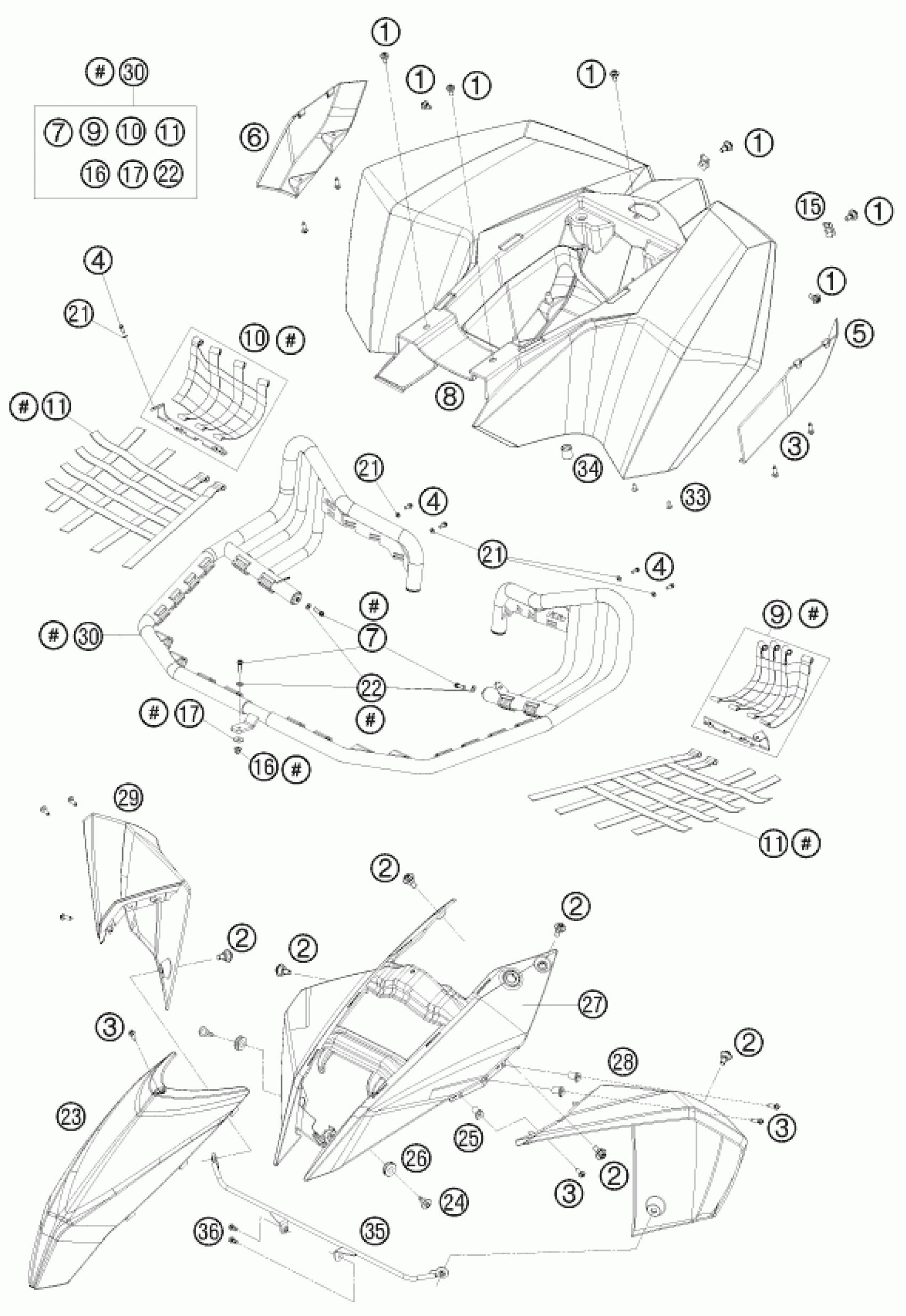

KTM 450 SX ATV 2010 MASK, FENDERS Diagram

#

Description
Price

1

SPECIAL SCREW M6X15X3

83008000015

$3.08

2

special screw M6x12x3

83008000012

$3.08

3

EJOT PT SCREW K60X20 WS=6

0017060203

$2.05

36

HH collar screw M6x10 TX30

0025060106

$3.08

5

AIR INTAKE L/S ORANGE

8300807201004

$5.35

6

AIR INTAKE R/S ORANGE

8300807202004

$5.83

8

REAR FENDER+AIR INTAKE ORANGE

8300807214404

$185.97

15

clip nut M6

54603048100

$4.11

23

FRONT-COVER SX

8350800200030

$26.26

24

SPECIAL SCREW M6X21 WS=8

60035001000

$3.08

25

CLIP NUT EASY BOSS 60X2X7

83008010060

$2.05

26

RUBBER SLEEVE D=12MM

41001052000

$4.11

27

FRONT PLASTICPART ORANGE

8300800100104

$60.26

28

FRONT FENDER L/S ORANGE

8300801000004

$32.60

33

EJOT PT screw K50x12

0081050121

$2.05

34

AIR FILTER BOX COVER

83006005000

$3.08

35

FENDER-FRAME CONNECTION

83008010150

Unavailable

29

FRONT FENDER R/S ORANGE

8300801100004

$36.20

30

NERFBARS BIG

83003097100

Unavailable

22

washer DIN 125 A -8.4

0125080003

$1.49

11

LOWER WEBBING FOR NERFBARS

83003092107

Unavailable

4

HH collar screw M6x16 TX30

0025060166

$3.08

9

WEBBING BACK LEFT NERFBAR

83003095002

Unavailable

10

WEBBING BACK RIGHT NERFBAR

83003096002

Unavailable

17

WASHER DIN9021-A 8,4

0021080003

$1.49

16

STOP NUT DIN6926 M8 SS

0926080003

$1.49

7

HH collar screw M8x25

0025080256

$2.05

21

WASHER DIN0125-A 6,4

0125060003

$1.49
