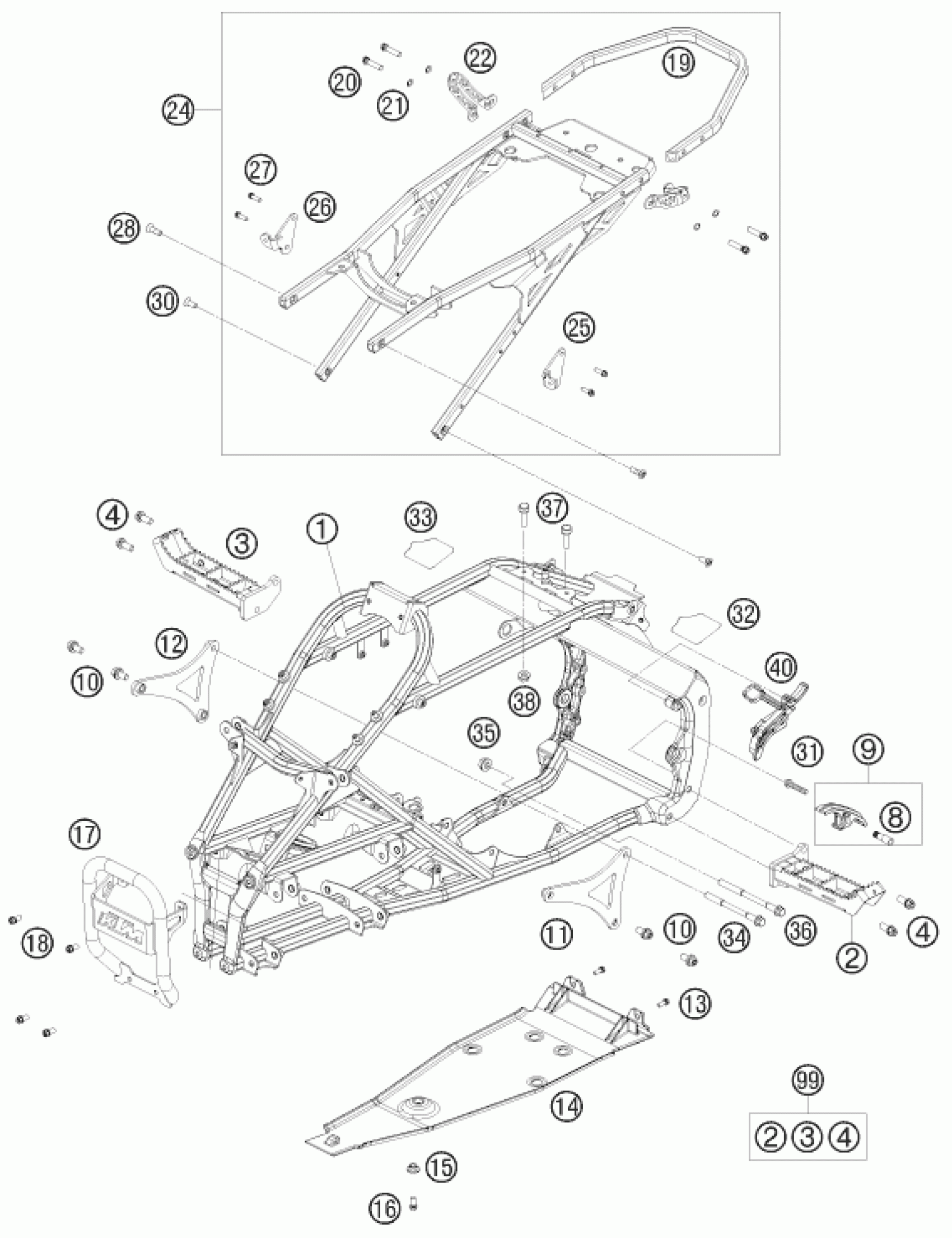

KTM 450 SX ATV 2010 FRAME Diagram

#

Description
Price

1

FRAME ATV-SX ''NB10'' 20

8350300110033

Unavailable

2

FOOTREST L/S

83003040300

Unavailable

3

FOOTREST R/S

83003041300

Unavailable

4

AH collar screw M10x24 ISA45

0035100249

$3.08

8

BUSHING

83003053051

Unavailable

9

CHAIN SLIDING PIECE BELOW

83003053000

$13.32

10

COLLAR SCREW M10X18 TX

0023100183

$7.85

11

ENGINE SUPPORT L/S CPL. SX

83503013044

Unavailable

12

ENGINE SUPPORT R/S CPL. SX

83503113044

Unavailable

13

HH collar screw M6x16 TX30

0025060166

$3.08

14

FRAME PROTECTION BELOW

83003090200

Unavailable

15

BEARING BUSHING INSIDE 03

60007061000

$4.11

16

HH collar screw M8x20

0025080206

$2.05

17

FRONT BUMPER BLACK

8300300300030

$146.74

18

HH COLLAR SCREW M8X16 TX40

0025080166

$4.11

19

SUB FRAME-BRACKET 07

83003002010

$61.40

20

HH COLLAR SCREW M8X35 TX40

0025080356S

$3.08

21

LOCK WASHER 8MM

36003014000

$2.05

22

FENDER MOUNTING

83003002030

$27.95

24

SUB FRAME

83003002144

Unavailable

25

HEELGUARD FIXING L/S

83003002040

$18.20

26

HEELGUARD FIXING R/S

83003002041

$21.03

27

HH collar screw M6x20 TX30

0025060206

$3.08

28

COUNTER-SUNK SCREW ISA45 M8X26

0019080266S

$3.08

30

FLAT HEAD SCREW M. ISA45 M8X20

0019080206S

$2.05

31

HH collar screw M8x45 TX40

0025080456

$4.11

32

PROTECT.FILM F. FRAME L/S 2008

83003099000

$2.90

33

PROTECT.FILM F. FRAME R/S 2008

83003099100

$3.14

34

Enginebrac. screw M10X123 WS=1

59003013000

$9.44

35

SELF LOCKING NUT M10 CU WS=14

54310086100

$2.05

36

ENGINE BRAC.SCREW M10X146 10.9

83503014000

$29.53

37

PARABOLIC BUMPER TANKBRACKET

83503034000

$6.87

38

STOP NUT M6 DIN6926 A2-70

0926060000

$3.08

40

CHAIN GUARD ATV SX

83503096000

$16.18

99

FOOTPEG KIT ATV

00050010002

Unavailable
