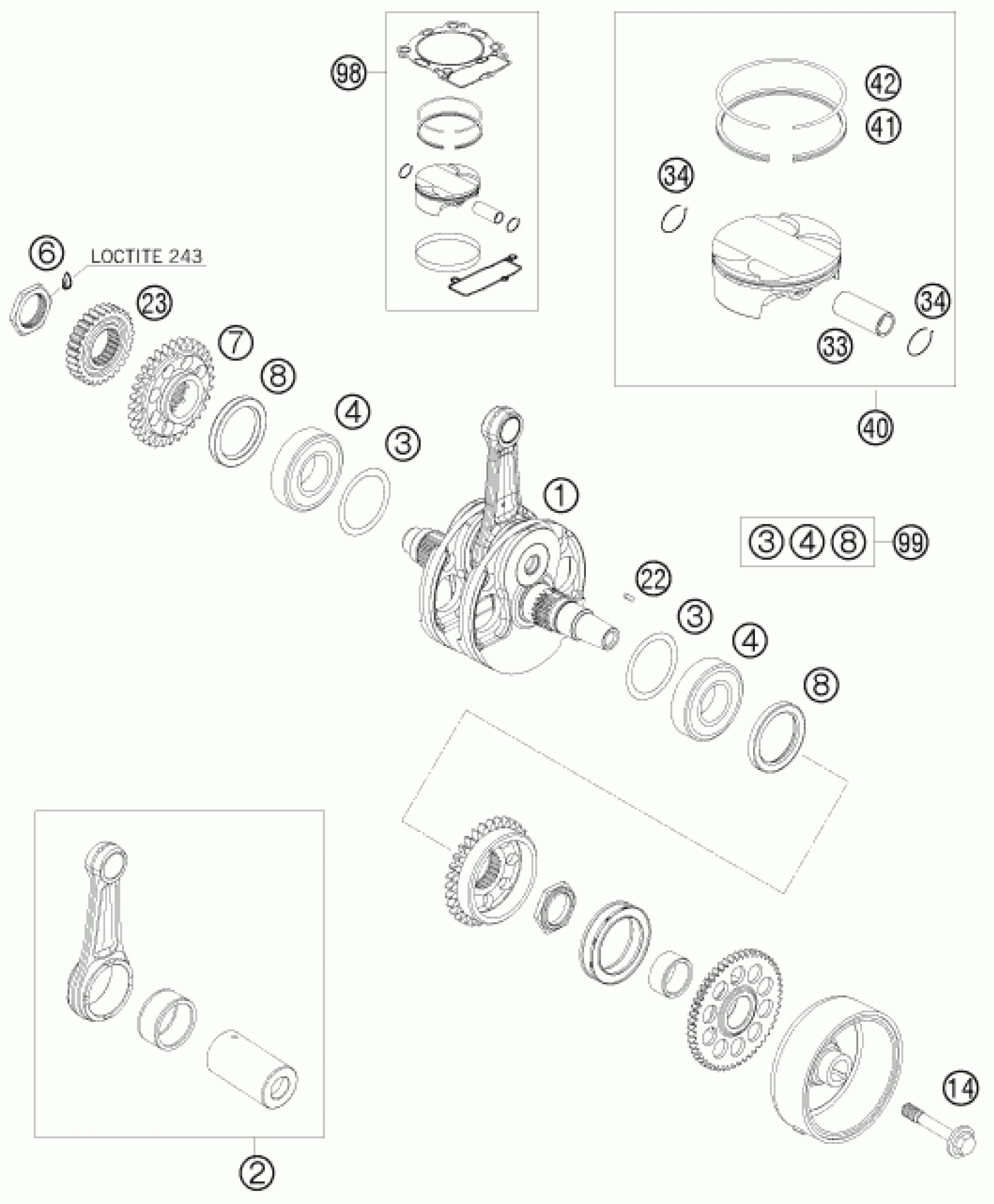

KTM 450 SX ATV 2010 CRANKSHAFT, PISTON Diagram

#

Description
Price

1

CRANKSHAFT CPL.

83530018100

Unavailable

2

CONNECTING ROD REPAIR SET

77330015244

$645.42

3

THRUST WASHER 30X42X0,1

0988304201

Unavailable

3

THRUST WASHER 30X42X0,2

0988304202

Unavailable

3

THRUST WASHER 30X42X0,3

0988304203

Unavailable

4

CYL. ROLLER BEARING NJ206 ECP

77330082000

$80.50

6

COLLAR NUT M27X1

77330029000

$10.84

7

DRIVE WHEEL

83530055010

$98.76

8

SHAFT SEAL RING A40x55x6 VITON

0760405560

$11.87

14

FLYWHEEL SCREW

77339010100

$5.60

22

WOODRUFF KEY DIN6888-3X3,7

0888030037

$2.05

23

PRIMARY GEAR

83532023026

$46.72

33

PISTON PIN

77330033000

$35.24

34

CIRCLIP

77330074000

$13.08

41

SCRAPER RING 450

77330032200

$38.34

42

COMPRESSIONRING D=97 2007

77330030100

$43.19

40

PISTON 450 SIZE I

77330007500 I

$441.80

40

PISTON 450 SIZE II

77330007500 II

$497.69

99

CRANKSHAFT REP. KIT 450 SX-F

00050002304

Unavailable

98

PISTON KIT GR.I450SX-F/ATV/SMR

00050000025

Unavailable

98

PISTON KIT GR.II 450 SX-F/ATV/

00050000029

Unavailable
