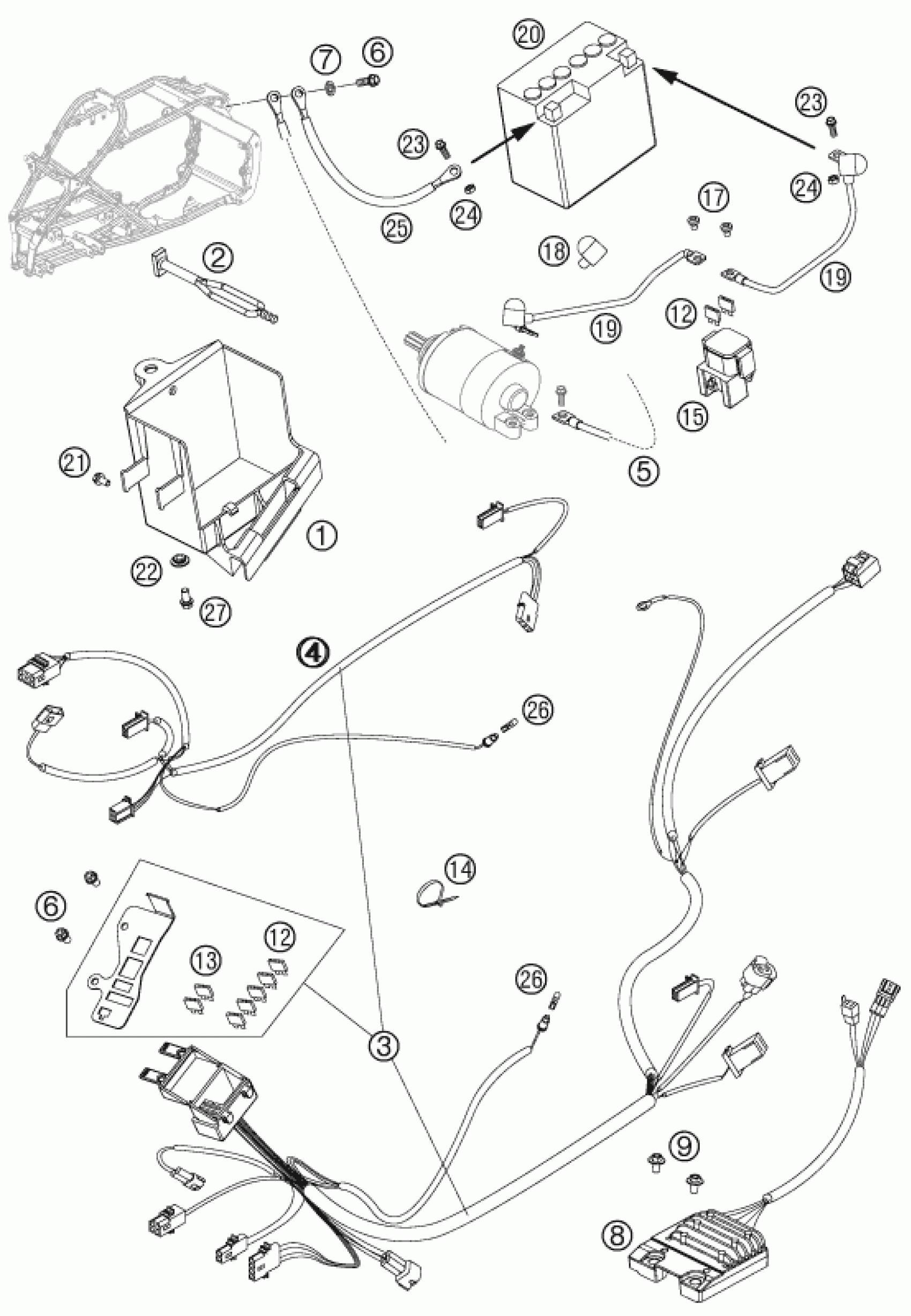

KTM 450 SX ATV 2009 WIRING HARNESS Diagram

#

Description
Price

1

BATTERY BOX

83011055000

$8.41

2

RUBBER L=145MM

50303018000

$6.44

3

WIRING HARNESS ATV SX 2009

83511075050

$174.96

4

LIGHTING WIRING HARNESS 08

83011079000

$25.19

5

GROUND CABLE 2

83011097100

$11.96

6

HH collar screw M6x16 TX30

0025060166

$3.08

7

CONTACT WASHER M6 VSV-K6

58411098100

$2.05

8

VOLTAGE REGULATOR

83011034000

$175.47

9

HH collar screw M6x20 TX30

0025060206

$3.08

12

Plug-in fuse, big 10A

58011109110

$2.05

13

FUSE 15 A

58011109115

$1.49

14

CABLE TIE 100/2,5MM BLACK

44011076100

Unavailable

14

Cable tie 200/4.6mm black

44011076200

Unavailable

15

Starter reley 12V 99

58211058000

$72.64

17

Oval head screw ISO 7380 M 6X8

0902060083

$1.49

18

PROTECTION CAP F. STARTER ENG.

58440099000

$5.23

19

STARTER CABLE

83011059000

$13.11

20

BATTERY 12V 4AH YTX5L-BS

58511053000

$112.10

21

HH collar screw M5x12 TX30

0025050126

$3.08

22

BUSH FOR SPOILER 6X11X16X5 MM

50308052000

$1.96

23

COLLAR SCREW M6X12 TX

0023060123

$2.05

24

Hex. nut DIN 934 M6

0934060003

$1.49

25

GROUND CABLE 1

83011097000

$9.58

26

BULB 12V 1,2W (W2X4,6D)

49111425000

$2.05

27

HH collar screw M6x12 TX30

0025060126

$3.08
