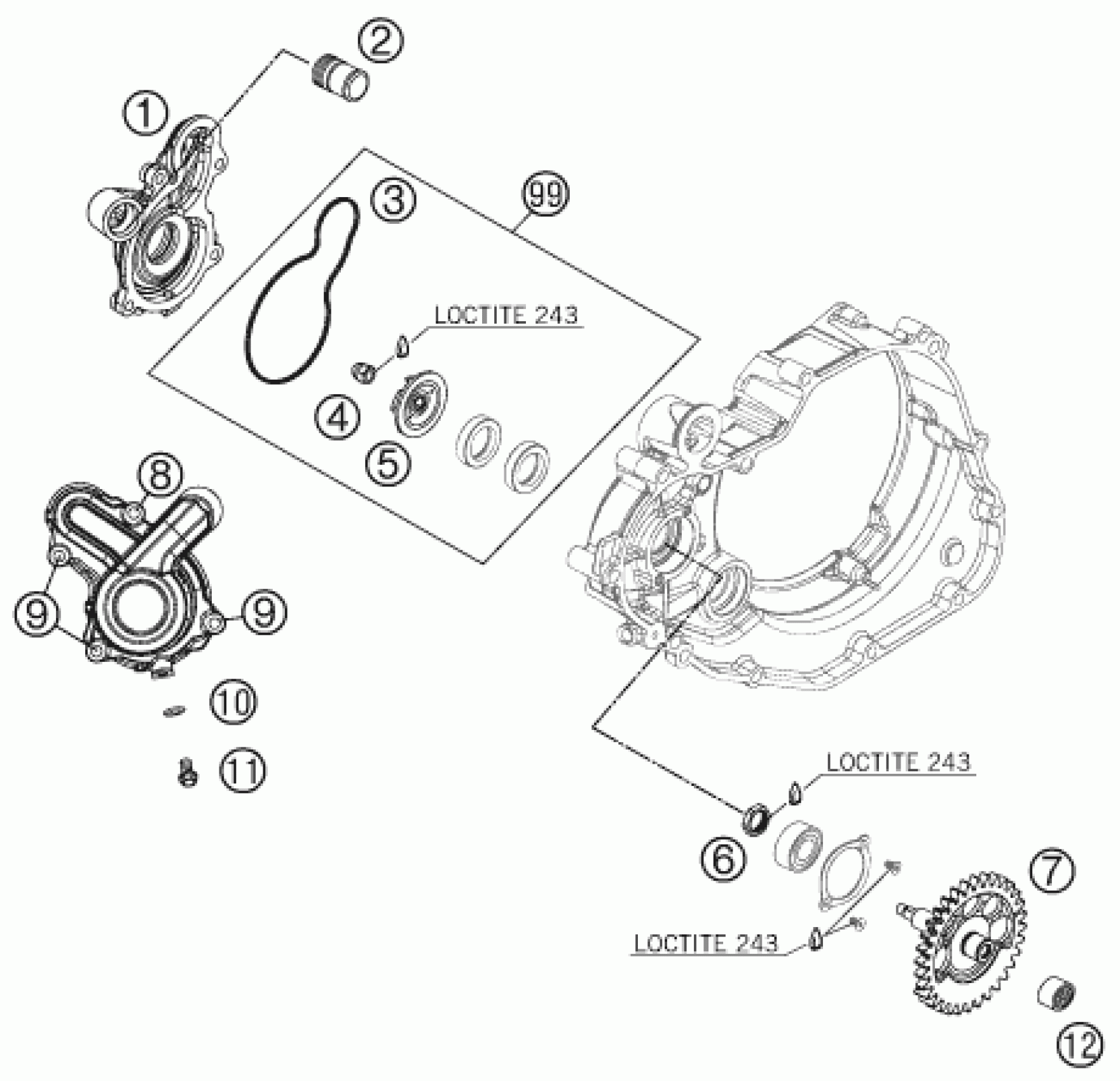

KTM 450 SX ATV 2009 WATER PUMP Diagram

#

Description
Price

1

WATER-PUMP COVER

8353505200015

$120.33

2

SCREW IN NOZZLE M20X1,5

58030010200

$8.87

3

WATER-PUMP GASKET 06

77335053000

$6.63

4

HH CAP NUT DIN1587-M 6 SS.

0587060002

$2.05

5

WATER-PUMP WHEEL 07

77335055100

$4.11

6

NUT M14 X 1 FOR BALANCER . 06

77330056050

$8.78

7

BALANCER GEAR KS 32-T 07

77330056200

$223.08

8

HH collar screw M6x55 TX30

0025060556

$3.08

9

HH collar screw M6x16 TX30

0025060166

$3.08

10

CU-SEAL RING DIN7603-6X10X1

0603061001

$2.05

11

HH collar screw M6x10 TX30

0025060106

$3.08

12

NEEDLE BEARING RNA 4900

77335050050

$24.77

99

WATER PUMP REP. KIT 07-12

77335055010

Unavailable
