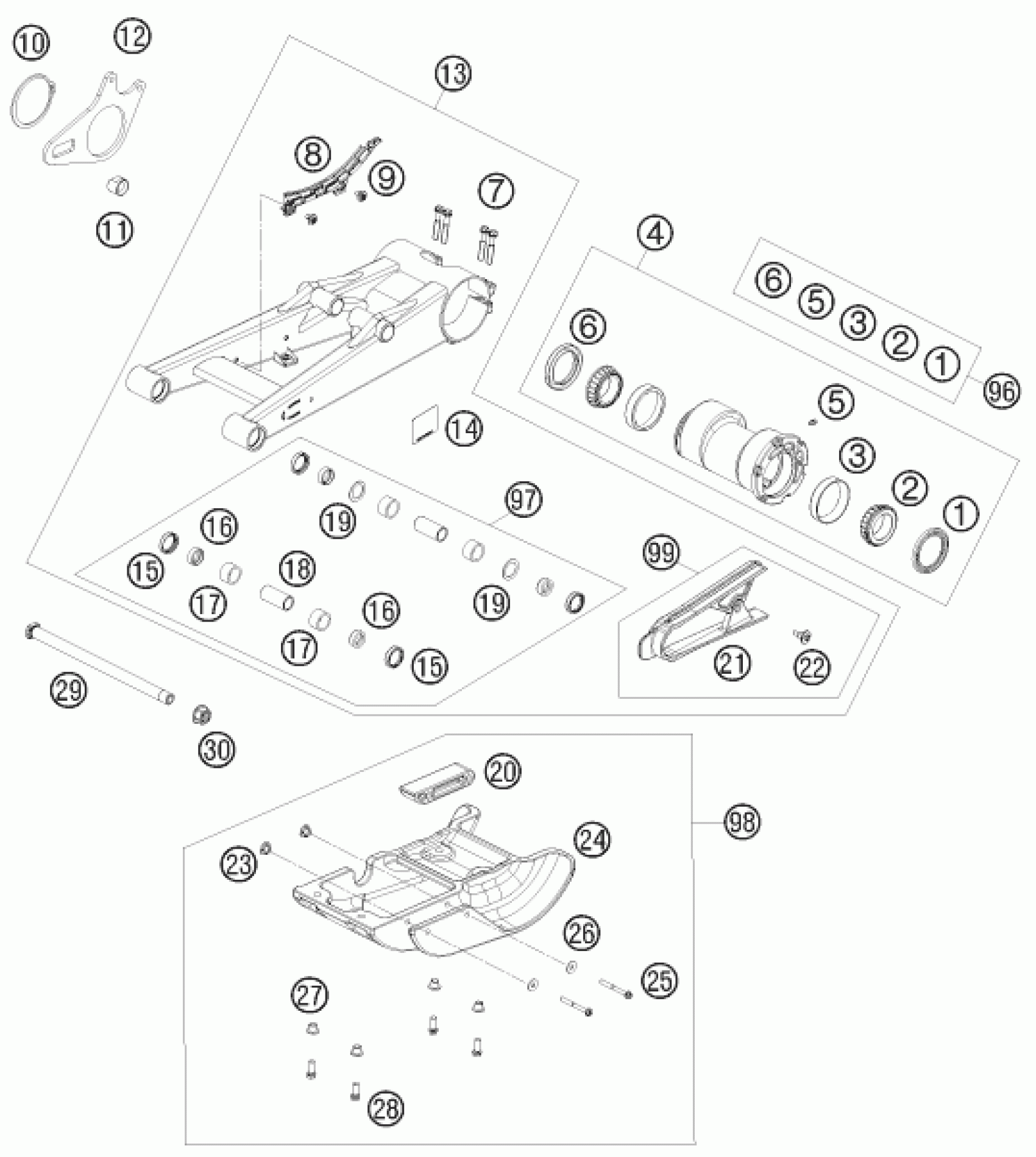

KTM 450 SX ATV 2009 SWING ARM Diagram

#

Description
Price

1

SHAFT SEAL RING 2''X2,75''X0,2

83010040053

$6.72

2

INNER RING 32008

83010040051

$23.03

3

OUTER RING 32008

83010040050

$18.41

4

REAR WHEEL EXCENTRIC CPL.

83010040033

$209.87

5

GREASE FITTING M6 STRAIGHT

72003035000

$2.05

6

SHAFT SEAL RING 2''X2,75''X0,3

83010040052

$6.72

7

HH COLLAR SCREW M8X40 TX40

0025080406

$4.11

8

BRAKE LINE GUIDE REAR

83513070000

Unavailable

9

special screw M6x12x3

83008000012

$3.08

10

CIRCLIP DIN 471 78X2,5

0471780250

$4.35

11

BRAKE THRUST BEARING

83013052000

$11.96

12

BRAKE CALIPER SUPPORT PLATE

83013046200

Unavailable

13

SWING ARM CPL. 2008

83504030044

$690.22

14

STICKER FOR CHAIN TENSION

83004030090

$4.71

15

radial shaft seal 25x32x7

0760253270

$6.63

16

Bucket f. shaft seal ring 03

54804034000

$5.23

17

NEEDLE BEARING HK 2216

58033097000

$14.02

18

BUSHING SLEEVE F. SWING ARM 03

54804032000

$10.93

19

STOP DISK 22,2X31,7X1

54603036000

$3.08

20

CHAIN GUIDE

83004070000

$28.05

21

CHAIN SLIDING GUARD

83004066100

Unavailable

22

SPECIAL SCREW M6X21 WS=8

60035001000

$3.08

23

DRIVE-IN NUT FOR GUARD

83004046060

$1.49

24

ASM-GUARD

83004046000

$76.92

25

HH collar screw M6x55 TX30

0025060556

$3.08

26

Washer DIN9021-A 6.4

0021060003

$2.05

27

collar bushing, swingarm prote

83004046050

$5.23

28

HH collar screw M8x20

0025080206

$2.05

29

SWING ARM BOLT

83004037000

$86.91

30

Nut with flange M16X1,5 WS=19

54804038000

$2.05

96

EXCENTER REP. KIT ATV

00050010003

Unavailable

97

SWINGARM REPAIR KIT 05-15

54804230210

Unavailable

98

SWINGARM GUARD KIT ATV

00050010005

Unavailable

99

CHAIN SLIDING GUARD ATV

00050010006

Unavailable
