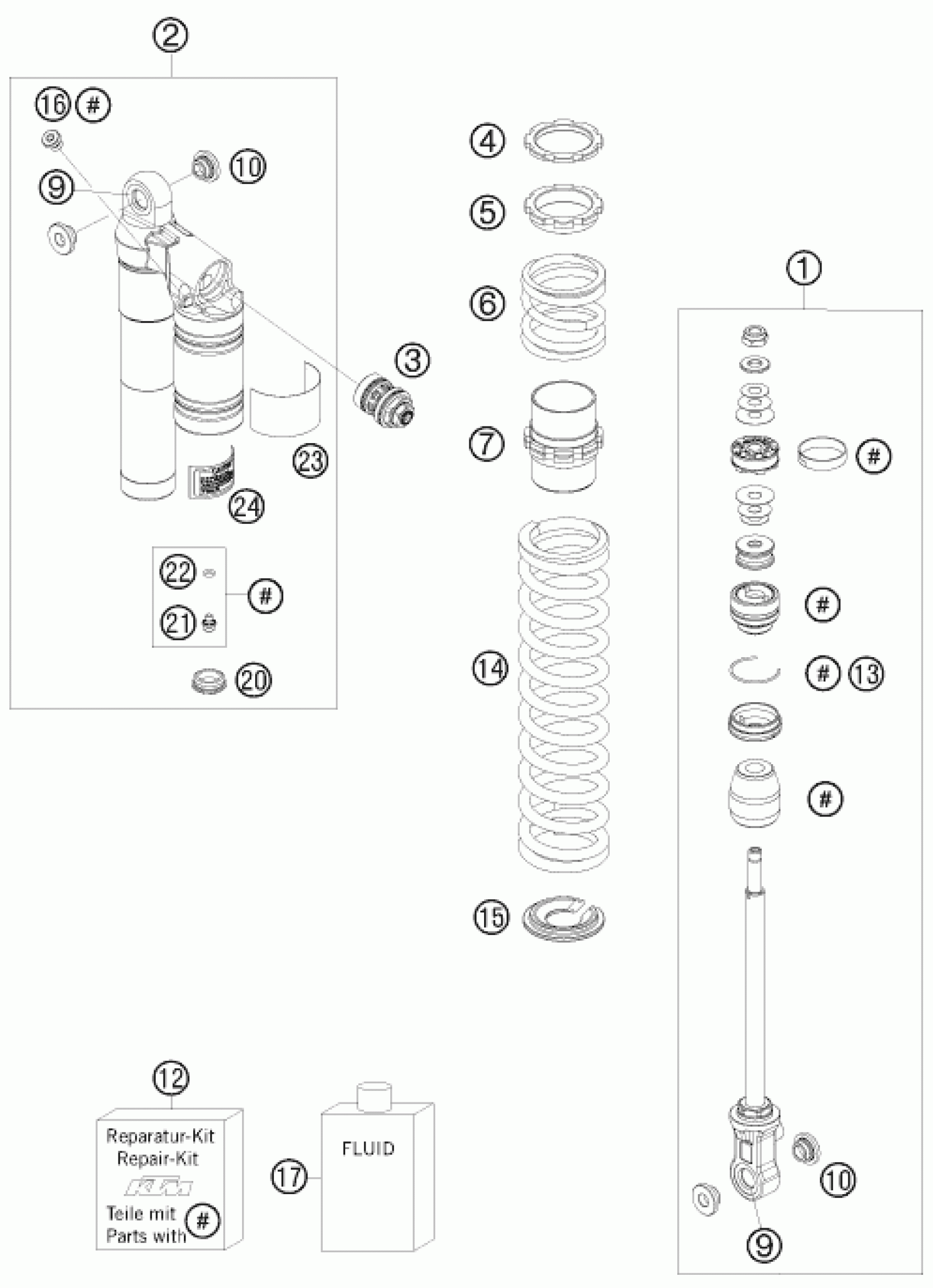

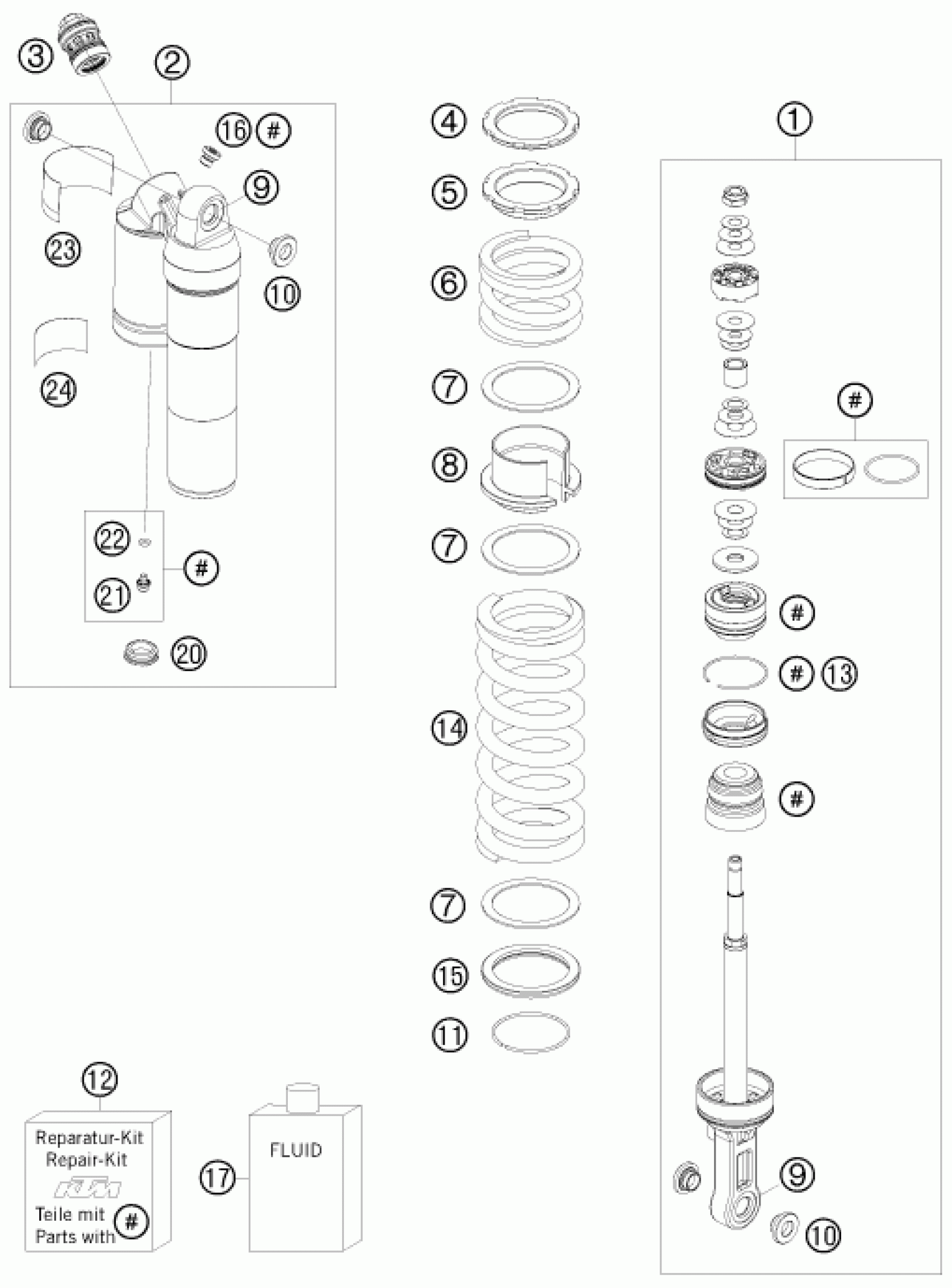

KTM 450 SX ATV 2009 SHOCK ABSORBER DISASSEMBLED Diagram

#

Description
Price

2

SHOCK ABS. TOP SECTION

36120811S1

Unavailable

1

MONOSHOCK LOWER PART

36120781S6

Unavailable

14

SPRING 21-26-275 D8,5

93020036S

Unavailable

14

SPRING 27-32-275

93020037S

Unavailable

26

BUMP STOP RUBBER W-60 D18

50180120

Unavailable

16

HS cylinder-head screw R1/8 l8

50180095

$2.42

17

SHOCK ABSORBER FLUID SAF 1579A

50180342

Unavailable

7

THREAD BUSHING L70LM48X1 CPL.

36120814S

Unavailable

10

Distance bush 10x15/18/24,5x10

46180010

$4.11

9

BEARING KIT KGW 1525 990DUKE

R15009

$35.71

12

REPAIR-KIT

R308

$65.07

3

Compression cpl.

50180213S6

$333.34

4

Lock nut shock M44x1,5

36120015

$30.75

5

ADJUSTING NUT M44X1,5

36120815

Unavailable

6

(51) 40-60 D6.5 ORANGE

93010188

Unavailable

19

Spring guide 40x44x42

36120798

Unavailable

18

Round-wire snap ring 40x1,5

36120032

Unavailable

13

Round-wire snap ring 38x1,5

40540015

$3.08

14

SPRING 24-29-275 D8,5

93020035S

Unavailable

15

SPRING GUIDE OPEN B15B d50

36120816

Unavailable

20

Rubber cap do not open 22x5,5

46811208

$3.08

21

HS lock screw M5x6

36120151

$1.86

22

O-ring 5,28x1,78 NBR70 black

46810893

$1.49

23

STICKER WP KTM

52000044

$3.62

24

Sticker warning 27x55

52000012

Unavailable

28

REBOUND DISC H=0

46180179

Unavailable

29

Sealholder 46x28 cpl.

46180669S

$70.54

30

O-ring 37x,82x1,78 Viton70 gre

46810035

$2.05

31

PISTON ROD NUT M10X1

46180356

$7.75

32

PISTON 5X4,5X/6X6

46180047

$177.52

25

Piston ring 43,95x45,95x8

46811206

$17.76
