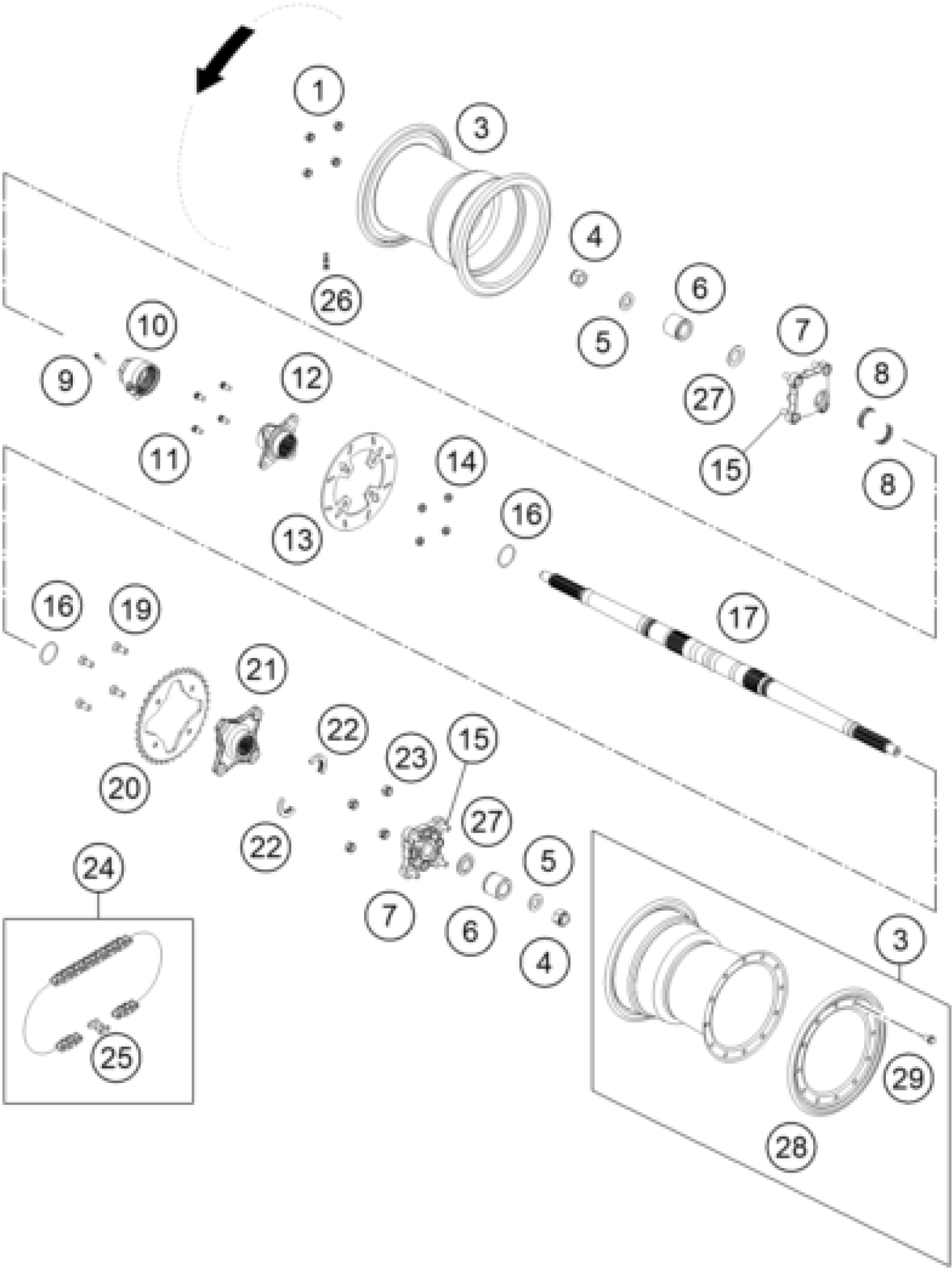

KTM 450 SX ATV 2009 REAR WHEEL Diagram

HH COLLAR NUT M10X1,25 WS=13

58414030000

$2.05

RIM REAR SX 09

83510070000

$342.23

SELF LOCK.NUT DIN0985-M18X1,5

0985181503

$3.08

TENSIONER RAIL DIN6796 D=19

83010021000

$2.50

SPACER BUSHING

83010013000

$19.16

REAR WHEEL HUB CPL.

83010069044

$153.89

CIRCLIP REAR AXLE

83510063000

$17.57

AH SCREW DIN0912-M 6X30

0912060303

$2.05

TENSION NUT

83010064000

$24.74

HH collar screw M8x16 TX40 SL

0025080166S

$3.08

BRAKE DISK SUPPORT 08

83010062000

$127.81

BRAKE DISK REAR D=200 MM

83010060000

$119.76

SPECIAL NUT BRAKE DISK FIXING

83010060050

$4.11

WHEELBOLT

83009016000

$25.61

O-RING 39,34X2,62 NBR 70 SH

0770039026

$2.05

REAR AXLE SX

83510016000

$645.82

FL.HEAD SCREW M10X1,25 L=27 03

60003004027

$4.11

RIM LOCK REAR ATV SX

83510090000

Unavailable

HH collar screw M6x20 TX30

0025060206

$3.08

SPROCKET 38T

83010051038

Unavailable

SPROCKET SUPPORT 08

83010050000

$136.50

CIRCLIP REAR AXLE SPROCKET

83510063100

$17.76

SELF LOCK.NUT M10X1,25

0982101253

$2.05

CHAIN 5/8X1/4'' MX

50310165118

$84.14

Connecting link for 5031016511

50310166000

$6.79

VALVE

83009076000

$3.31

CONUSRING REAR AXLE

83010014000

$13.64
