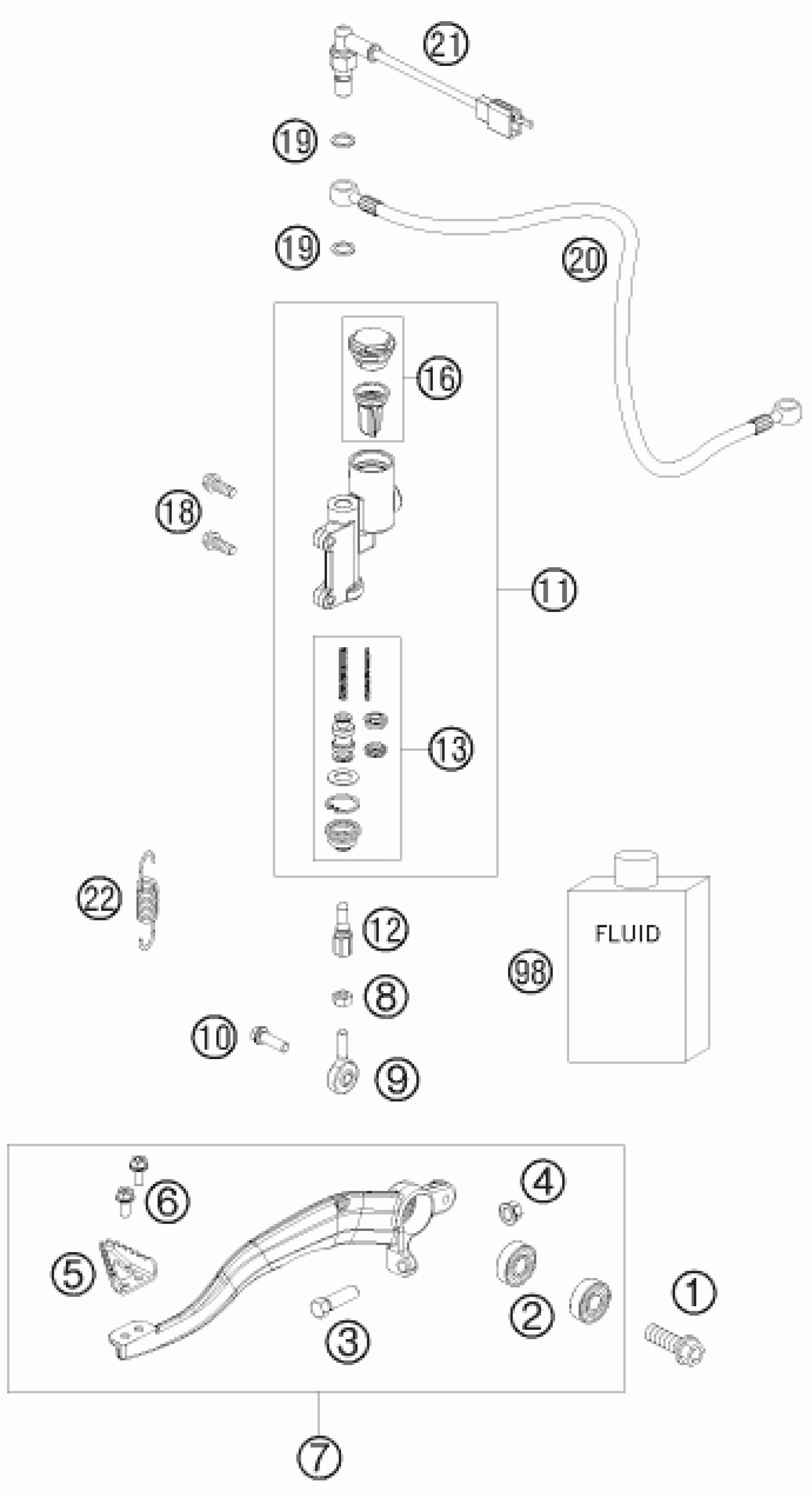

KTM 450 SX ATV 2009 REAR BRAKE CONTROL Diagram

flanged nut M8 WS10

46030045000

$7.85

SPECIAL SCREW M8X26 WS=10

59001037000

$3.08

AH collar screw M10x30 ISA45

0035100309S

$3.08

deep groove ball bearing SKF 6

0625060002

$12.33

STEP PLATE FOOT BRAKE LEVER 03

60013051000

$5.60

HH collar screw M5x12 TX30

0025050126

$3.08

FOOT BRAKE LEVER CPL. ATV

83013050044

$116.51

Self lock. nut DIN985-M6-A2

0985060003

$2.05

SWIVEL HEAD KA6 03

54813055000

$19.91

HH collar screw M6x20 TX30

0025060206

$3.08

FOOT BRAKE CYL. MAGURA 13MM

83013060000

$370.72

PUSH ROD

83013056000

$15.76

REPAIR KIT PISTON MAGURA 13 MM

83013061000

$116.96

COVER, MEMBRANE MAGURA

83013062000

$46.55

HH collar screw M6x16 TX30

0025060166

$3.08

COPPER GASKET

59413013050

$6.63

BRAKE HOSE REAR

83013070100

$217.28

BRAKE LIGHT SWITCH REAR '98

50311051100

$36.92

RETURN SPRING L=38 MM

54309036000

$5.23

Brake fluid DOT5.1 0,25L

00062030000

$12.52
