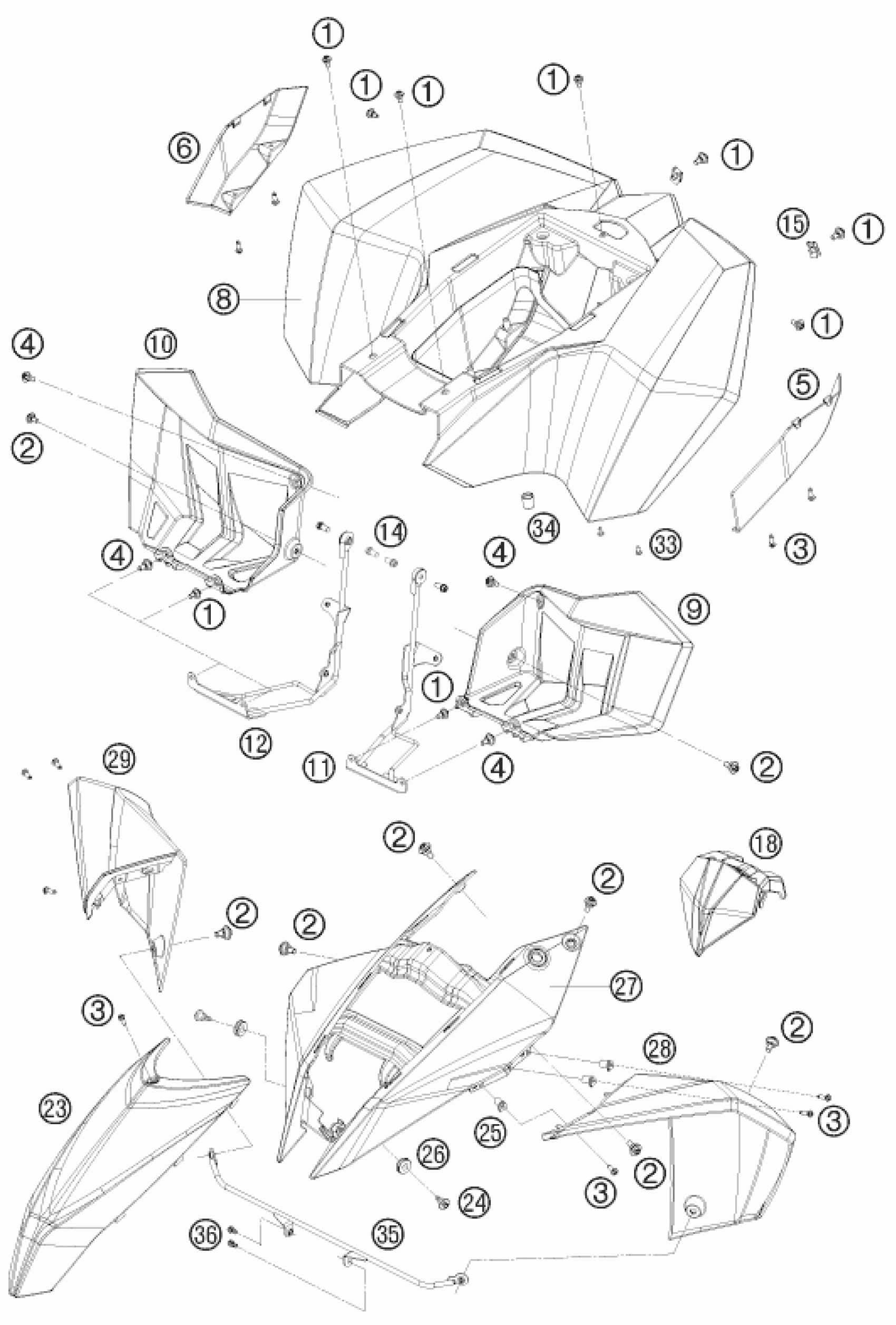

KTM 450 SX ATV 2009 MASK, FENDERS Diagram

#

Description
Price

10

HEEL GUARD R/S BLACK

8300805600030

$42.74

1

SPECIAL SCREW M6X15X3

83008000015

$3.08

2

special screw M6x12x3

83008000012

$3.08

3

EJOT PT SCREW K60X20 WS=6

0017060203

$2.05

4

Special screw M6x15x5.5

83008100015

$3.08

5

AIR INTAKE L/S ORANGE

8300807201004

$5.35

6

AIR INTAKE R/S ORANGE

8300807202004

$5.83

8

REAR FENDER+AIR INTAKE ORANGE

8300807214404

$185.97

9

HEEL GUARD L/S BLACK

8300805500030

$42.74

11

HEELGUARD FIXING L/S

83008057100

$72.06

12

HEELGUARD FIXING R/S

83008058100

$76.93

14

HH COLLAR SCREW M8X16 TX40

0025080166

$4.11

15

clip nut M6

54603048100

$4.11

18

INSTRUMENTS BRACKET

83014070000

$17.84

23

FRONT-COVER SX

8350800200030

$26.26

24

SPECIAL SCREW M6X21 WS=8

60035001000

$3.08

25

CLIP NUT EASY BOSS 60X2X7

83008010060

$2.05

26

RUBBER SLEEVE D=12MM

41001052000

$4.11

27

FRONT PLASTICPART ORANGE

8300800100104

$60.26

28

FRONT FENDER L/S ORANGE

8300801000004

$32.60

29

FRONT FENDER R/S ORANGE

8300801100004

$36.20

33

SCREW FOR PLASTIC 50X12

0016050121

$2.05

34

AIR FILTER BOX COVER

83006005000

$3.08

35

FENDER-FRAME CONNECTION

83008010050

$63.34

36

HH collar screw M6x10 TX30

0025060106

$3.08
