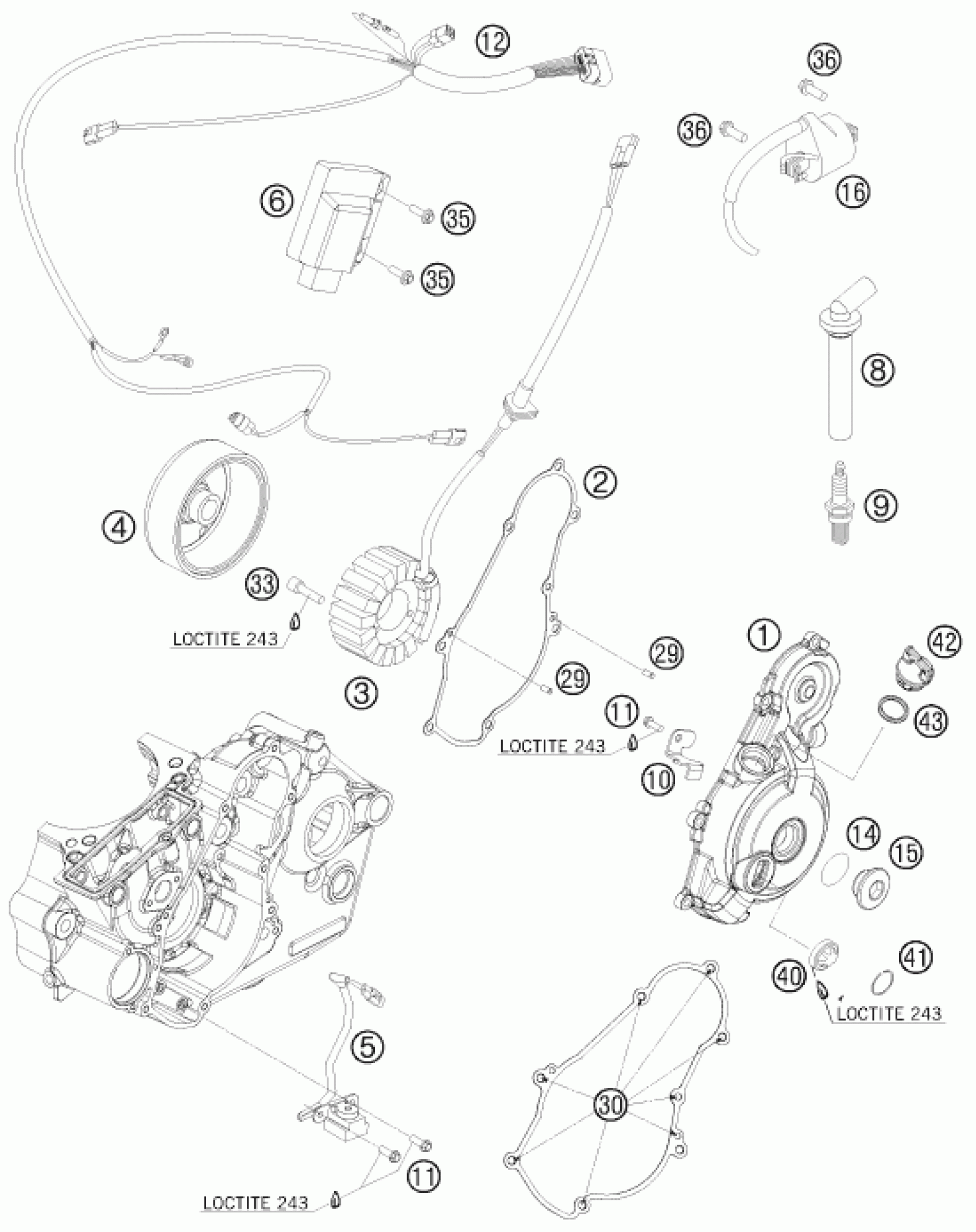

KTM 450 SX ATV 2009 IGNITION SYSTEM Diagram

#

Description
Price

1

IGNITION COVER

8353000200015

$123.22

2

IGNITION COVER GASKET

83530040000

$18.41

3

STATOR

83039004000

$233.55

4

ROTOR

83039005000

$197.60

5

PULSER COIL KOKUSAN ''PU5165''

77339034000

$73.03

6

CDI UNIT ATV 450 SX 09

83539031000

$257.72

8

SPARK PLUG

77339090000

$39.73

9

SPARK PLUG NGK CR9EKB ´05

77039093000

$13.46

10

WIRE RETAINING BRACKET

83530002050

$3.77

11

HH collar screw M5x10 TX30

0025050106

$1.49

12

WIRING HAR. F. CDI-BOX 525 ATV

83039032000

$124.44

14

o-ring 22.00X2.00 NBR70

0770220020

$2.05

15

threaded plug M24x1.5 PA 6.6

6003009400030

$4.11

16

IGNITIONCOIL ''IG5128''

59039006000

$66.19

29

Needle roll.DIN5402 NRB 4X9.8

0402040980

$3.08

30

HH collar screw M6x20 TX30

0025060206

$3.08

33

AH SCREW DIN0912-M 5X25

0912050253

$1.49

35

HH collar screw M6x20 TX30

0024060206

$3.08

36

HH collar screw M6x16 TX30

0025060166

$3.08

40

OIL LEVEL GLASS G 1777 Y

59030019000

$21.31

41

CIRCLIP OIL LEVEL GLASS 03

61030019050

$1.49

42

oil plug cpl. M24x3

58030020100

$5.23

43

O-RING 19,00X3,00 NBR

0770191015

$2.05
