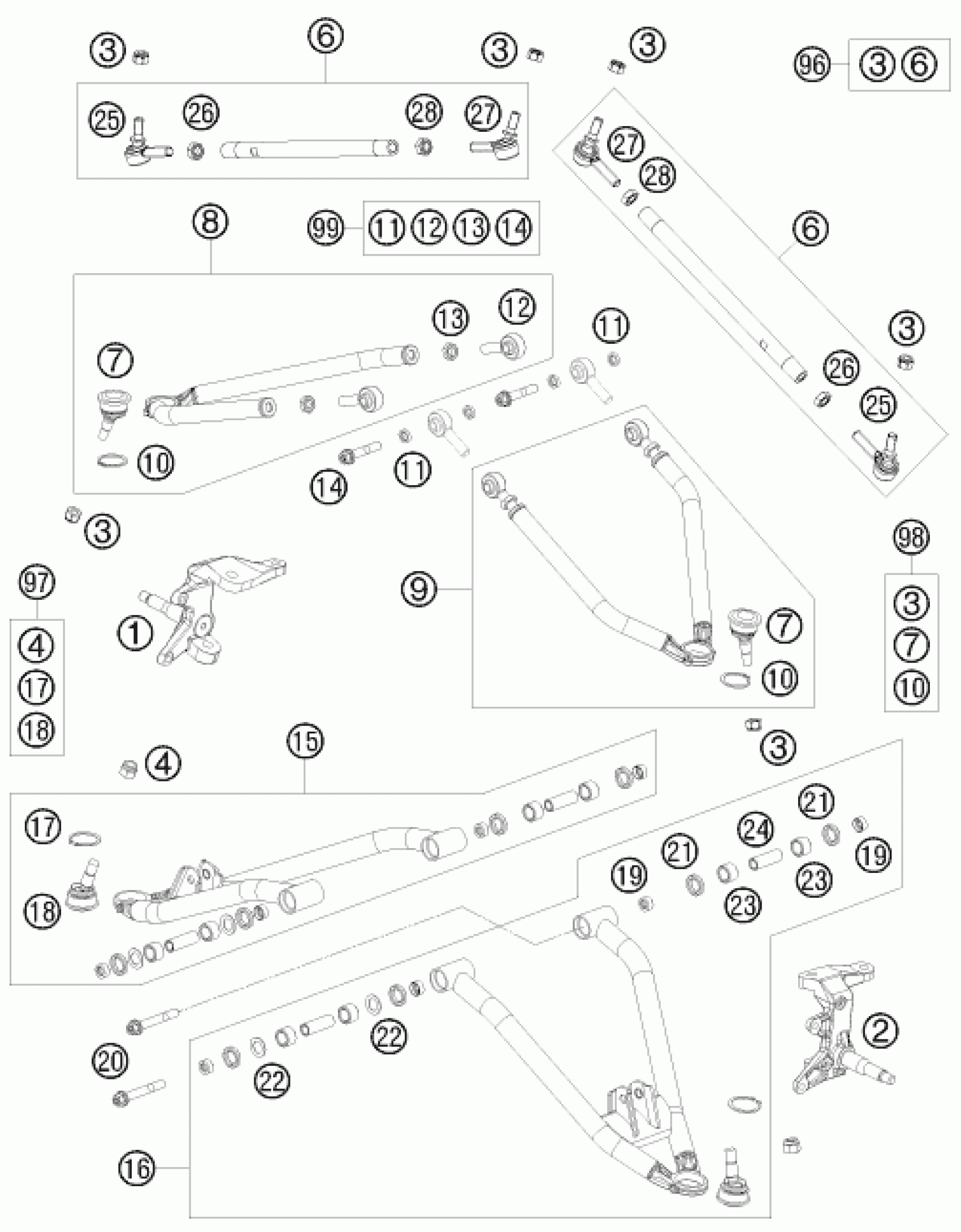

KTM 450 SX ATV 2009 FRONT-END Diagram

#

Description
Price

1

WHEEL FRONT CARRIER R/S CPL.

83061006100

Unavailable

2

WHEEL FRONT CARRIER L/S CPL.

83061005100

Unavailable

3

SELF LOCK.NUT M10X1,25

0982101253

$2.05

4

SELF LOCK.NUT M12X1,5

83061005025

$2.05

6

TRACK RODS CPL. SX

83561010044

$170.37

7

BALL HEAD M10X1,25

83061001050

$47.58

8

A-ARM TOP RIGHT CPL. SX

83061103044

$282.89

9

A-ARM TOP LEFT CPL. SX

83061101044

$282.71

10

CIRCLIP DIN0471-32X1,5

0471320150

$6.07

11

SPACER BUSHING F. BALLJOINT

83061001025

$3.08

12

SWIVEL HEAD

83061001051

$132.37

13

HEXAGON NUT DIN 936 M12x1,25

0936120123

$2.05

14

COLLAR SCREW M10X52 TX

0023100523

$6.82

15

A-ARM BOTTOM RIGHT CPL. SX

83061104044

$279.76

16

A-ARM BOTTOM LEFT CPL. SX

83061102044

$279.67

17

CIRCLIP DIN0741-35X1,5

0471350150

$5.41

18

BALL HEAD M12X1,5

83061002050

$47.58

19

BUCKET F. SHAFT SEAL RING

83061034000

$5.23

20

COLLAR SCREW M10X70 TX

0023100703

$3.58

21

SHAFT SEAL RING 17X26X6

0760172660

$5.32

22

STOP DISK 15,2X25X1 MM

83061015000

$3.08

23

NEEDLE BEARING HMK 1515

83061079000

$6.80

24

BUSHING SLEEVE F. A/ARM

83061032000

$8.59

97

BALL JOINT KIT LOWER ATV

00050010008

Unavailable

98

BALL JOINT KIT UPPER ATV

00050010009

Unavailable

99

UPPER A ARM SWIVEL HEAD KIT

00050010010

Unavailable

25

BALL HEAD TRACK RODS RIGHT

83061010002

Unavailable

26

NUT RIGHT

83061010004

Unavailable

27

BALL HEAD TRACK RODS LEFT

83061010001

Unavailable

28

NUT LEFT

83061010003

Unavailable
