ENGINE CASE

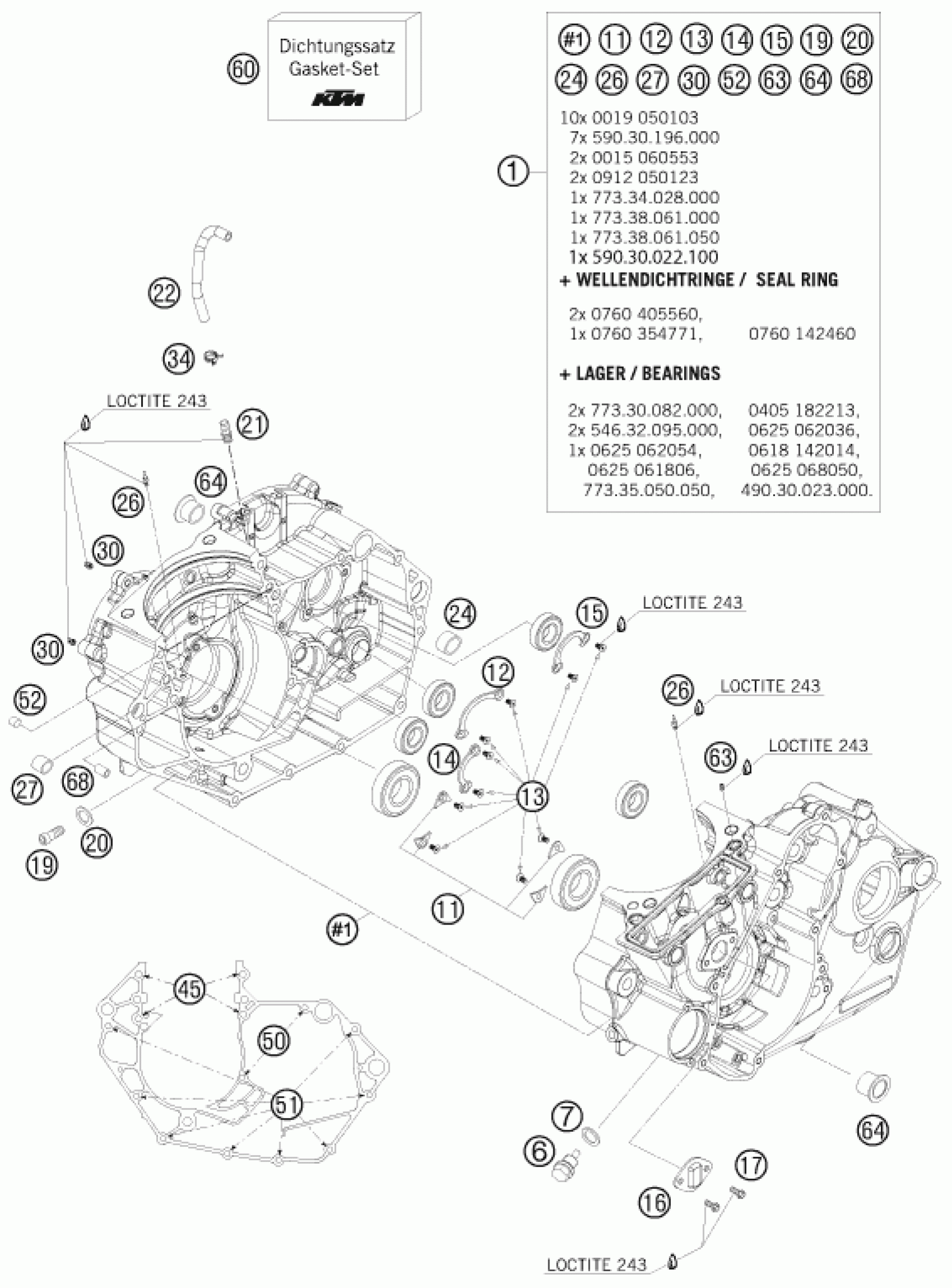

KTM 450 SX ATV 2009 ENGINE CASE Diagram
#
Description
Price
34
YDNAC-clamp 10173 (16MM)
58431082100
$1.49
11
BUSHING RETAINING PLATE
77330085000
$4.11
12
BUSHING RETAINING PLATE
77333022100
$4.11
13
INT TORX FLAT HEAD M 5X10 8.8
0019050103
$2.05
14
BUSHING RETAINING PLATE
77334090000
$4.11
6
OILDRAIN PLUG W.MAG. M 12X1,5
58030021000
$11.30
7
CU-seal ring DIN7603-12X18X1.5
58038022000
$2.05
15
BUSHING RETAINING PLATE
77333024100
$4.11
16
RETAINING PLATE
77336075050
$5.23
17
HH collar screw M5x10 TX30
0025050106
$1.49
19
AH SCREW DIN6912-M 8X20
0012080203
$1.49
20
SEAL RING CU DIN7603- 8X12X1
0603082121
$3.08
24
DOWEL 17 X 19 X 12
59030024000
$5.23
26
oil jet 50 M5
60030063050
$9.44
27
DOWEL BUSHING 13,8X11X12
54630027000
$6.91
30
JET 100 BING(44-031/180) M4
59030058000
$4.11
45
SCREW M7-1,0X70
77330067170
$4.11
50
HH COLLAR SCREW M6X70 TX30
0025060706
$3.08
51
HH collar screw M6x55 TX30
0025060556
$3.08
52
CYLINDER ROLLER ZRO. 8,0X12 M4
0402080120
$2.05
60
GASKET SET 450/505 SX-F
77330099000
$387.27
63
THROTTLE M5X10X1
77338029052
$9.90
64
CASE BUSH
75030010000
$8.59
68
dowel sleeve 6x8x11.5
59030023000
$1.49
1
ENGINE CASE 08
83530000044
$1,663.44
22
ENGINE BREATHER TUBE
83531050000
$10.36
21
BLEEDER FLANGE M12X1,5 WS=13
59030022100
$7.85
