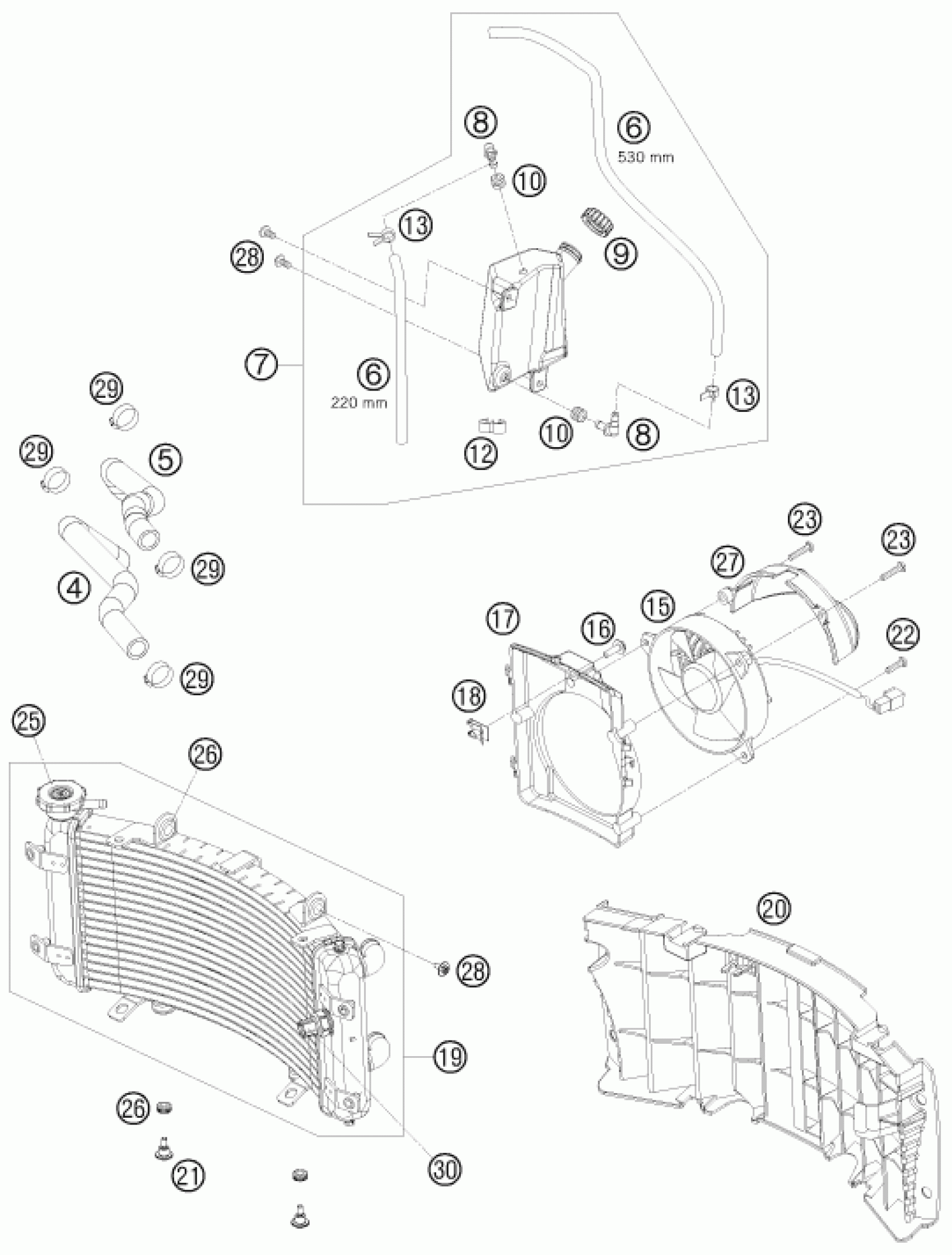

KTM 450 SX ATV 2009 COOLING SYSTEM Diagram

HOSE 6X10 EPDM 03

60035067001

Unavailable

EXPANSION TANK

83035065000

$51.23

Angle piece, reservoir

60035068000

$3.08

PLUG F. EXPANSION TANK

60035066000

$6.72

RUBBER GROMMET 6X9X13MM 04

60035069000

$4.11

DISTANCE HOLDER 10/10 BLACK

60038039000

$2.05

CLAMP YDNAC 10128 12MM

58031005000

$3.08

COOLING WATER HOSE

83535026000

$21.40

PREFORMED HOSE RADIATOR-CYL.

83535027000

$17.66

FAN L/S 03

60035041000

$164.83

HH collar screw M6x20 TX30

0024060206

$3.08

FAN COWL ATV

83035041000

$6.62

clip nut M6

54603048100

$4.11

RADIATOR ATV 2008

83035010000

$447.75

RADIATOR PROTECTOR

83035040000

$18.20

SPECIAL SCREW M6X21 WS=8

60035001000

$3.08

EJOT PT SCREW K60X20 WS=6

0017060203

$2.05

SPECIAL SCREW T60 6X30 WS=6

0017060303

$2.05

RADIAT.CAP 20,3PSI (1,4BAR) 03

59035009000

$15.98

RUBBER SLEEVE D=12MM

41001052000

$4.11

AIR CONDUCTION COWL ATV

83035042000

$4.78

COLLAR SCREW M6X12 TX

0024060123

$1.49

HOSE CLAMP GEMI 18-29

10001020000

$2.05

THERMOSWITCH 80-85 DG

83035045000

$40.29
