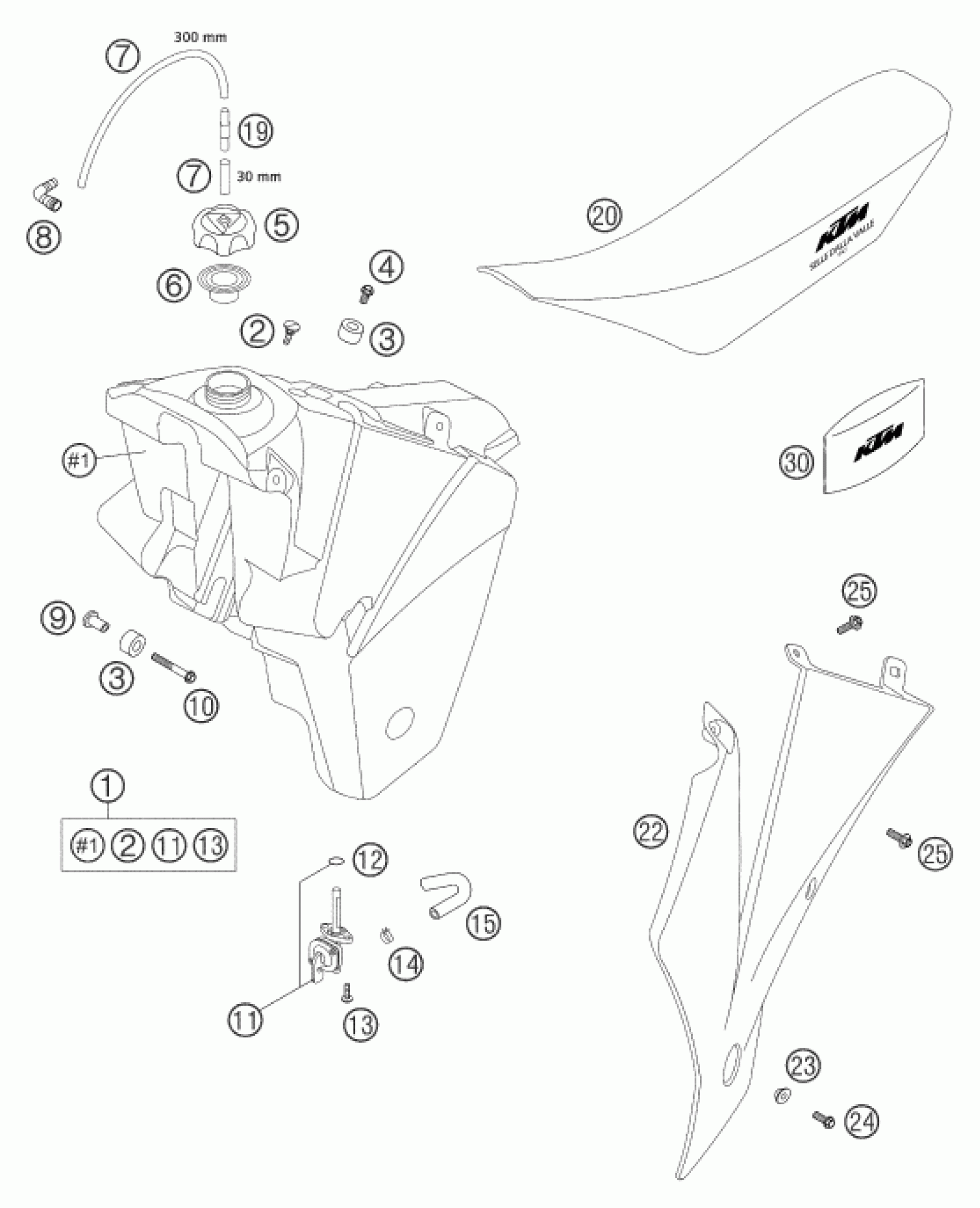

KTM 450 SMS <2004> TANK, SEAT Diagram

#

Description
Price

1

FUEL TANK CPL. SX 6,5L 03

5900711300004

Unavailable

2

SCREW SEAT FASTENING D=6X23/18

50307011000

Unavailable

3

TANK ROLLER 12X26X12 '98

50307014000

Unavailable

4

HH COLLAR SCREW M 6X12 WS=8

0015060123

Unavailable

5

SXS FUEL TANK CAP

SXS03540700

Unavailable

6

GASKET FOR FILLER CAP HIGH

59007009000

Unavailable

7

PVC-HOSE 6X9 MM PER METER

31007107001

Unavailable

8

ANGLE PIECE 90 DEGREE M10X1

51030022000

Unavailable

9

SUPORT BUSHING TANKROLLER

59003001055

Unavailable

10

HH COLLAR SCREW M 6X45 WS=8

0015060453

Unavailable

11

GAS COCK MIKUNI ON/OFF 2001

50307005000

Unavailable

12

O-RING 13,00X2,30

0770130023

Unavailable

13

EJOT PT SCREW K60X20 WS=6

0017060203

Unavailable

14

CLAMP YDNAC 10128 12MM

58031005000

Unavailable

15

FUEL HOSE 7,5X13MM

59007016000

Unavailable

19

VALVE FOR TANK BREATHING 02

57307019000

Unavailable

20

SEAT 450 SM FACTORY REPLICA 04

59207040000

Unavailable

22

SPOILER L/S ORANGE SX 2001

5030815000004

Unavailable

22

SPOILER R/S ORANGE SX 2001

5030815100004

Unavailable

23

BUSH FOR SPOILER 6X11X16X5 MM

50308052000

Unavailable

24

HH COLLAR SCREW M 6X20 WS=8

0015060203

Unavailable

25

EJOT PT SCREW K60X20 ALU WS=6

0017060204

Unavailable

30

ORIGINAL EQUIPMENT TOOL KIT

59029099000

Unavailable
