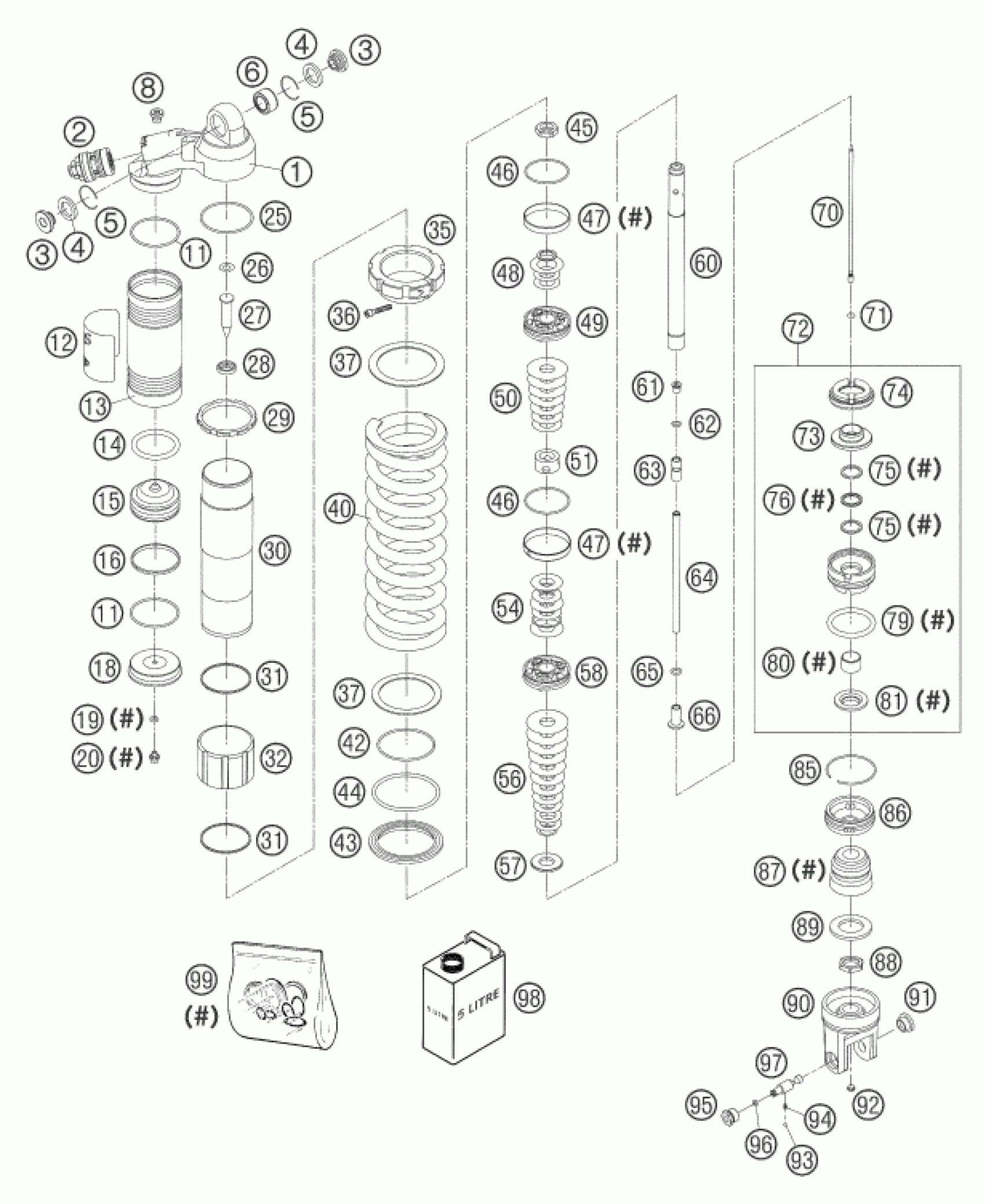

KTM 450 SMS <2004> SHOCK ABSORBER DISASSEMBLED Diagram

#

Description
Price

1

SHOCK ABS.CASE TOP H30,5 21X58

50187036

Unavailable

2

50180213S4

Unavailable

3

Distance bush 12x15/18/24,5x10

46180007

$17.76

4

Seal ring 19,5x26x3

46180003

$5.60

5

Round-wire snap ring 25x1

50180168

$1.49

6

Ball joint bearing 15x25x13

50180005

$29.35

8

HS cylinder-head screw R1/8 l8

50180095

$2.42

11

O-ring 48x2 NBR70 siliconized

46810016

$1.49

12

WP CAUTION (PDS KTM) 58X83

52000041

$16.73

13

RESERVOIR SCREW L=140 D=52

50180317

$301.41

14

O-ring 41x5 Viton75

46180014

$2.05

15

Piston 52mm reservoir

46180002

$43.66

16

Pistonring 47,5x50,5x3,9

46180015

$10.00

18

RESERVOIR CAP D=58

50180236

$115.74

19

O-ring 5,28x1,78 NBR70 black

46810893

$1.49

20

HS lock screw M5x6

36120151

$1.86

25

O-ring 52x2 NBR70

50180097

$2.05

26

spring washer 8,2x16x0,6

50180177

$2.05

27

NEEDLE D=10 L=36/50

50180343

Unavailable

28

SCREW CAP M20x1, D=11

50180271

$23.81

29

RETAINING WASHER

50180241

Unavailable

30

TUBE PDS L=196

50180394

Unavailable

31

spreader ring 50X1,5

50180133

$7.40

32

Spring guide 54,15x60x40

50180081

$5.61

35

ADJUSTING RING M5

50180318

Unavailable

36

AH SCREW DIN0912-M 5X30

0912050303

$1.49

37

Intermediate washer spring 61,

50180114

$3.08

40

* SPRING PDS TITAN 80-240

91210029

Unavailable

40

* SPRING PDS TITAN 84-240

91210030

Unavailable

40

* SPRING PDS TITAN 87,5-240

91210026

Unavailable

40

SPRING PDS TITAN 92,5-240

91210027

Unavailable

40

SPRING 250 84N/MM D=13,0 (62)

91210005

Unavailable

40

SPRING 250 88N/MM D=13,0 (62)

91210006

Unavailable

40

SPRING 250 92N/MM D=13,0 (62)

91210007

Unavailable

42

Round-wire snap ring 58,5x2

50180273

$2.05

43

SPRING RETAINER D=80

50180319

Unavailable

44

O-ring 66,27x1,78 Viton70

50180352

$3.08

45

Piston rod nut 16x1

50180141

$9.06

46

O-ring 44x,17x1,78 Viton70

50180099

$2.05

47

Piston ring 47,95x49,95x8

50180135

$17.76

48

SHIM 16X28X0,30

50180072

$3.08

48

Shim 21x36x0,25

50180209

$11.87

48

WASHER 16X21X1

50180210

$6.26

49

Piston 16,05x49,6x13,5 4,5/7

50180197

$45.62

50

SHIM 16X32X0,30

50180074

Unavailable

50

SHIM 16X34X0,30

50180075

Unavailable

50

SHIM 16X36X0,30

50180076

Unavailable

50

SHIM 16X38X0,30

50180077

Unavailable

50

SHIM 16X40X0,30

50180078

Unavailable

50

SHIM 16X42X0,30

50180079

Unavailable

50

SHIM 16X44X0,30

50180080

Unavailable

51

SANDWICH BUSH D25XD16X14,5/D

50180269

$32.35

54

Shim 32,25x36x0,30

46811637

Unavailable

54

Shim 16x21x0,30

50180035

Unavailable

54

Shim 16x32x0,2

50180056

Unavailable

54

SHIM 16X36X0,20

50180058

Unavailable

56

Shim 16x22x0,30

50180036

Unavailable

56

SHIM 16X30X0,20

50180055

Unavailable

56

Shim 16x32x0,2

50180056

Unavailable

56

Shim 16x34x0,2 y5

50180057

Unavailable

56

SHIM 16X36X0,20

50180058

Unavailable

56

SHIM 16X38X0,25

50180068

Unavailable

56

SHIM 16X40X0,25

50180069

Unavailable

56

SHIM 16X42X0,25

50180070

Unavailable

56

SHIM 16X44X0,25

50180071

Unavailable

57

SHIM REBOUND H16 '03

50180401

$121.42

58

Piston 16,05x49,6x13,5 4,5/7

50180197

$45.62

60

SPINDEL D=18, L=153, M16x1

50180447

Unavailable

61

BUSH M8X1

50180200

$14.02

62

O-ring 7x1,5 Viton70 green

50180157

$1.49

63

NEEDLE SEAT M8X1

50180201

$18.99

64

TUBE M18X1 L=151,5

50180264

$10.31

65

O-ring 8x2 NBR70

48600049

$1.49

66

Bush 5/8,2/7x9,5/16,8x23

50180279

$4.11

70

NEEDLE L=175

50180261

$60.03

71

O-ring 2,2x1,6 Viton75 green

46811265

$1.49

72

ADAPTOR CPL. D=50, H=28,5

50180349S1

$219.19

73

STEEL DISC 18,5X43,7X6

50180304

$19.47

74

Rubber pad rebound 27x48x8 NBR

50180107

$4.11

75

Washer 18x22,5x1,5 plastic

50180102

$8.59

76

X-ring 18x2,62 Viton70

50180101

$15.70

79

O-ring 41x5 NBR70

50180103

$1.49

80

Guide bushing 18x20x12

46180119

$6.35

81

Dirt scarper 18mm

50180082

$34.03

85

Round-wire snap ring 53x1,75

50180126

$1.49

86

CAP D=50

50180211

Unavailable

87

Rubber pad 17,2x45,2x40 black

50180276

$8.41

88

HH locking nut M18x1 h5 WAF24

50180283

$11.86

89

Preload bush 42x26,5x2,5

48600036

$2.05

90

FORK PART L=55,5 B=32,5 D=12

50187038

Unavailable

91

Threaded bush M12 d20

50180105

$15.51

92

Rubber plug 8x3,5 NBR50

50180297

$2.48

93

Steel ball d3

40540603

$1.49

94

SPRING D=2,9, L=6,2

40540602

$3.08

95

CAP REBOUND M14X1

50187039

Unavailable

96

O-ring 4x1,5 NBR70

50180222

$1.49

97

ADJUSTING SCREW 80 DEG., L=39

50180280

$20.99

98

SHOCK ABSORBER FLUID 5 LT '03

50180342S1

$149.59

99

REPAIR-KIT GASKET 5018 PDS 03

R12008

$123.66
