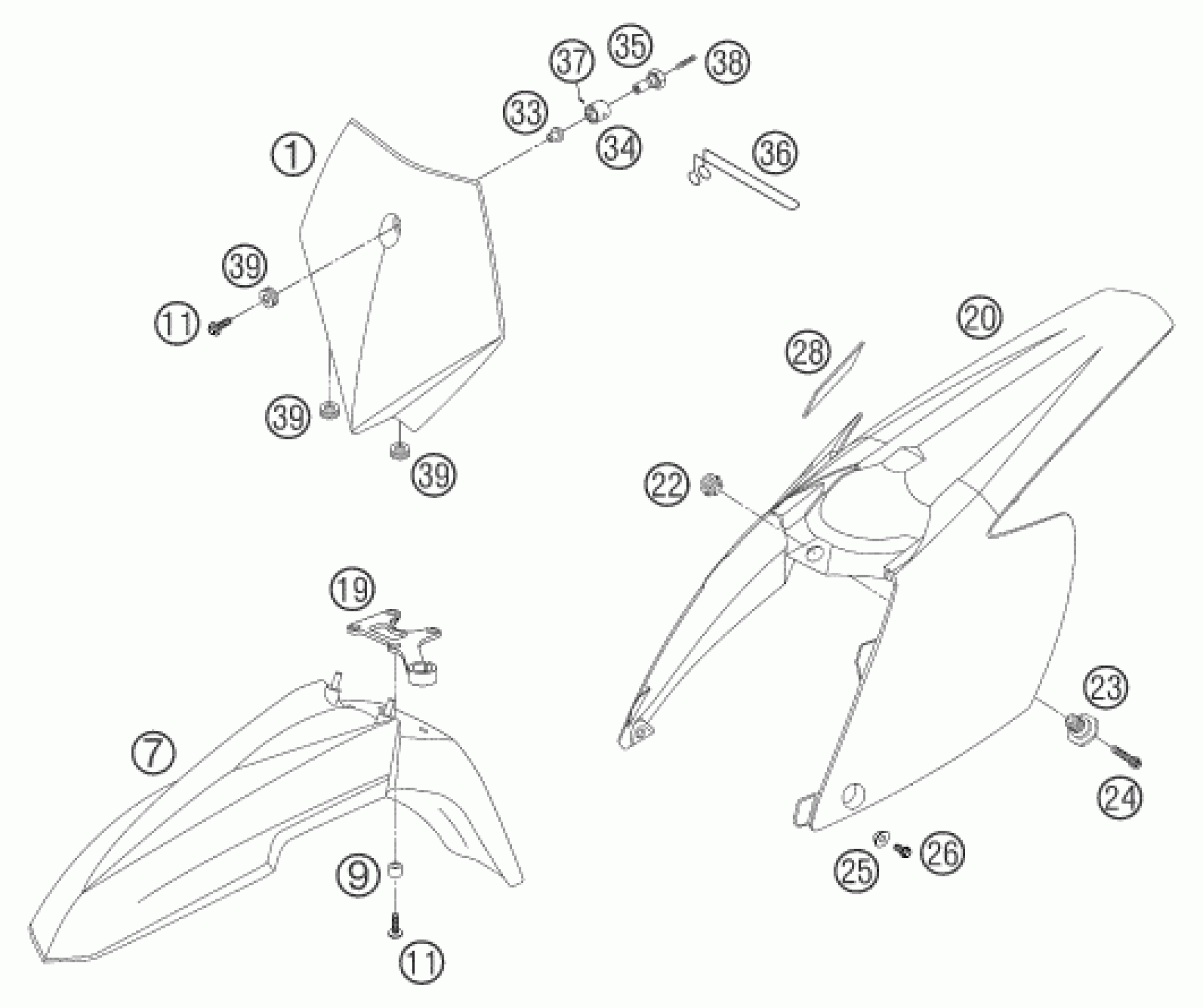

KTM 450 SMS <2004> MASK, FENDERS Diagram

#

Description
Price

1

* NUMBER PLATE SMS 03

5730800700049

Unavailable

7

FENDER FRONT 660 SM FACTORY 02

5730801000004

Unavailable

9

SPACER BUSHING 7X10X7,5

50208020000

$4.11

11

HH COLLAR SCREW M 6X20 WS=8

0014060203

$2.05

19

BRAKE HOSE GUIDE 2000

59008019000

$4.11

20

REAR PART SX ORANGE 03

5480801300004

$75.35

22

COLLAR NUT M12X1/WS17 H=5MM

50314057050

$6.63

23

BUSHING FOR SEAT FASTENING 03

54807048000

$10.65

24

HH COLLAR SCREW M 6X25 WS=8

0015060253

$3.08

25

BUSH FOR SPOILER 6X11X16X5 MM

50308052000

$1.96

26

HH COLLAR SCREW M 6X16 WS=8

0015060163

$3.08

28

METAMOLL 90X45X3MM 03

59003001099

$2.05

33

BUSHING FOR NUMBER PLATE

57308006000

Unavailable

34

SUPPORTING TUBE FOR GUIDE BOW

57308008000

Unavailable

35

SUPPORT FOR NUMBER PLATE 04

57301035200

Unavailable

36

CABLE GUIDE SMS 2003

57301025050

Unavailable

37

THREAD PIN DIN0913-M 5X5

0913050050

Unavailable

38

THREAD PIN DIN0914 M6X30

0914060030

Unavailable

39

rubber grommet D=8mm open

31008060000

$2.05
