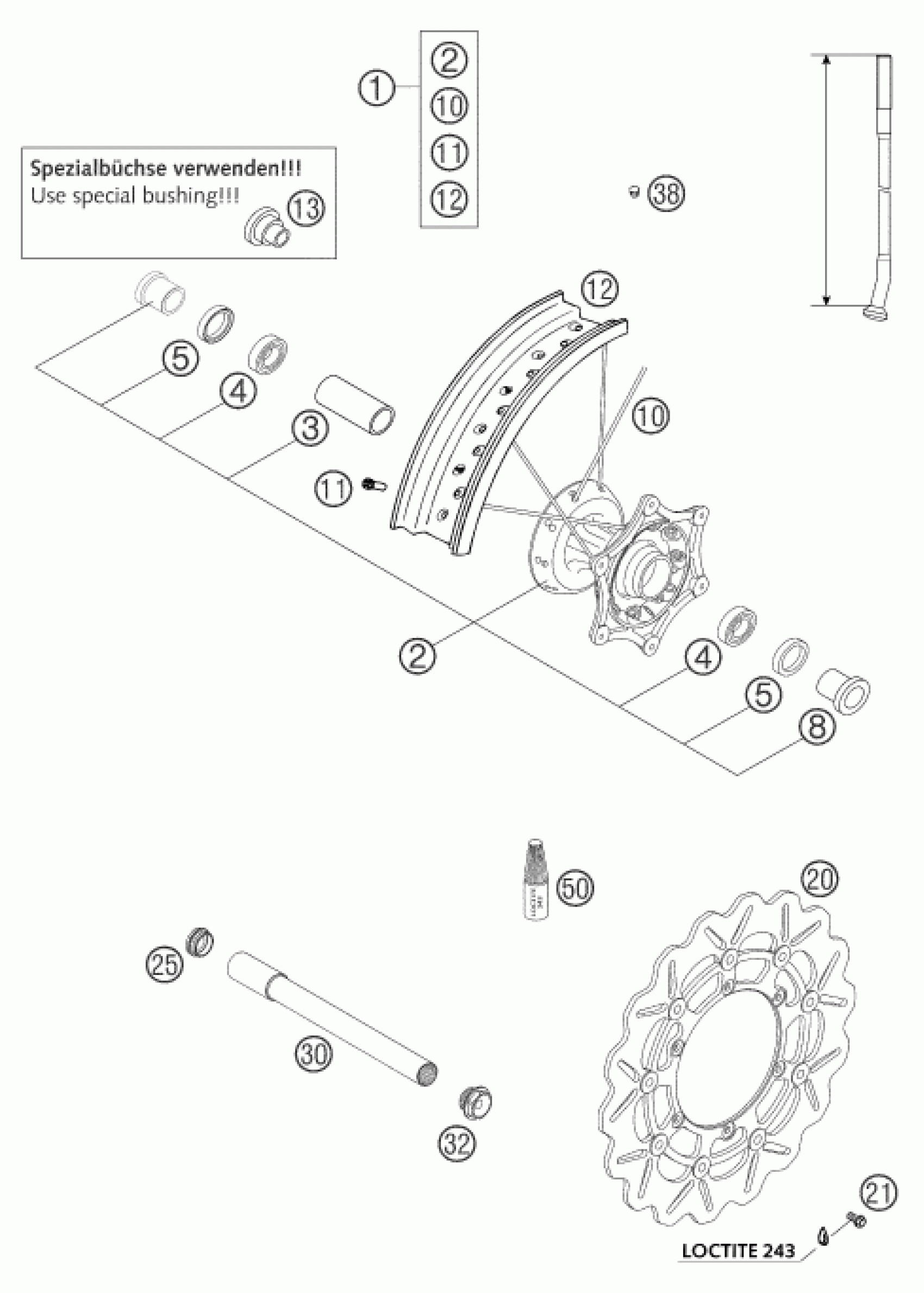

KTM 450 SMS <2004> FRONT WHEEL Diagram

#

Description
Price

1

% FRONT WHEEL CPL. 3,5X16,5"

57309001144

Unavailable

2

FRONT HUB CPL. GOLD 03

5480901004496

$204.24

3

BEA.SPACERTUBE 35X2 L=79,4 03

54809011000

$25.70

4

Grooved ball bearing 6906

0625069068

$34.68

5

Radial shaft seal 35X47X7 TC

0760354771

$8.69

8

SPACER BUSHING F. FR. WHEEL

54809012000

$30.10

10

SPOKE 4,5X165-15G 16,5'' DDE

58409071165

Unavailable

11

SPOKE NIPPLE M4,5X0,75 8X21

50309072000

$2.05

12

RIMFRONT 3,50X16,5"BLACK EXCEL

5730907000030

Unavailable

13

SPACER BUSHING F. FRONT WH. 02

57309012000

Unavailable

20

BRAKE DISK FRONT 320MM 04

57309060100

Unavailable

21

SPECIAL SCREW M6X13 WS=8 10.9

59009062013

$2.05

25

PLUG BUSHING WS=27 03

54809081050

$9.81

30

WHEEL SP. FRO. D=26 660SM 02

57309081000

Unavailable

32

SPINDLE SCREW M24X1,5 WS=27 03

54809082000

$9.81

38

PLUG FOR RIM

55003135000

Unavailable

50

LOCTITE 243 BLUE 5 ML

6899785

$28.04
