FRONT FORK, TRIPLE CLAMP

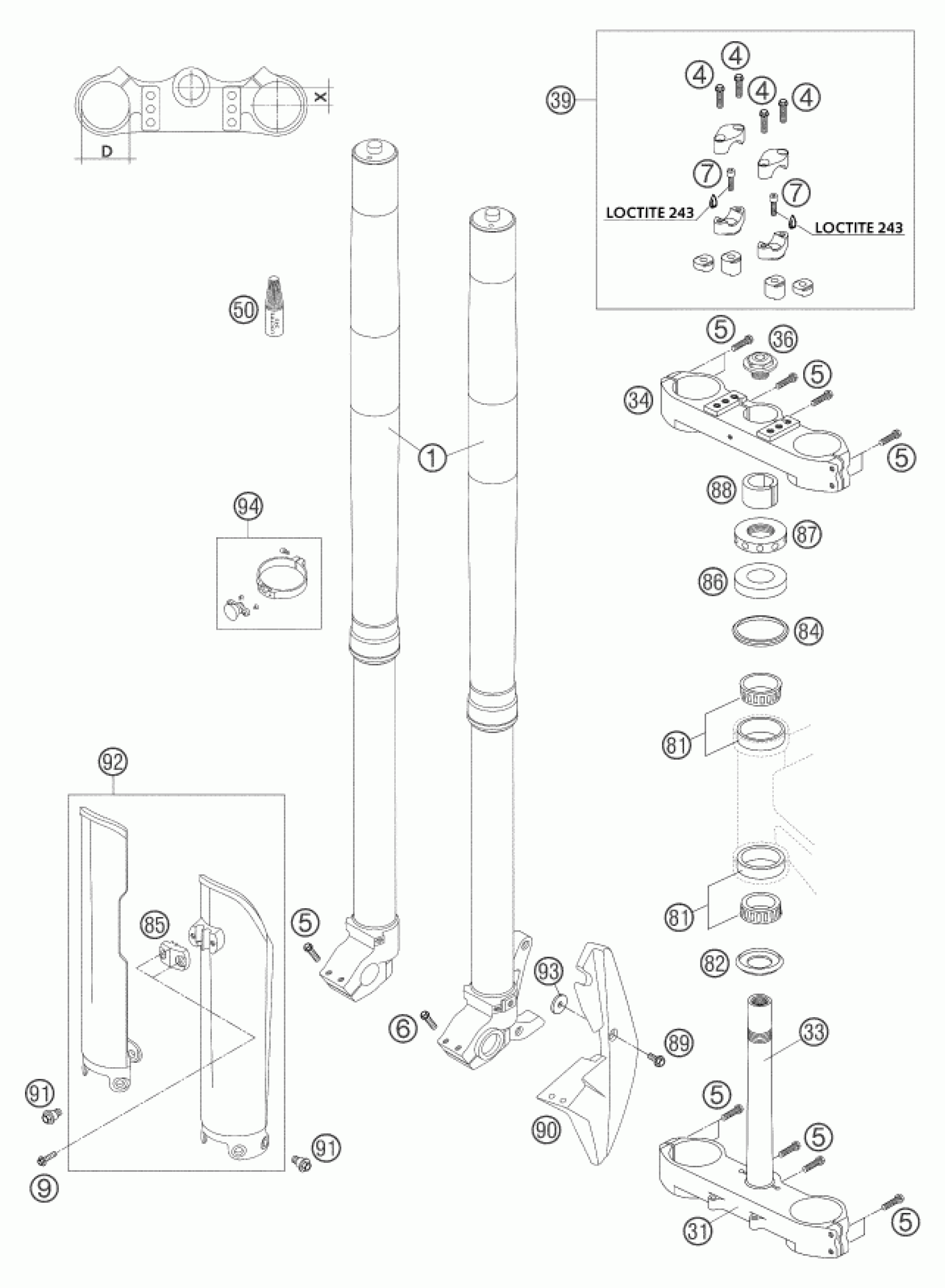

KTM 450 SMS <2004 FRONT FORK, TRIPLE CLAMP Diagram
#
Description
Price
1
FORK 4860 MXMA SM FACTORY 04
1418Y751
$1,640.46
4
HH COLLAR SCREW M 8X25 WS=10
0015080253
$2.05
5
HH COLLAR SCREW M 8X30 WS=10
0015080303
$3.08
6
HH COLLAR SCREW M 8X35 WS=10
0015080353
$4.11
7
AH SCREW DIN6912-M10X25,10.9
0912100250
Unavailable
7
AH SCREW DIN6912-M10X35 10.9
0912100356
Unavailable
7
AH SCREW DIN6912-M10X45 10.9
0912100456
Unavailable
9
EJOT PT SCREW K60X20 WS=6
0017060203
$2.05
31
BOTTOM TRIPLE CLAMP 660 SM 03
57301031100
Unavailable
33
FORKE TUBE 660 SM 02
57301033000
Unavailable
34
TOP TRIPLE CLAMP 660 SM 2003
57301034100
Unavailable
36
STEER.HEAD SCREW M20X1,5 WS=27
50301036000
$10.38
39
% HANDLEBAR SUPPORT CPL.D=28MM
59501039044
Unavailable
50
LOCTITE 243 BLUE 5 ML
6899785
$28.04
81
TAPERED ROLLER BEARING CPL.
54201081000
$51.04
82
O-RING SUPPORT W. SEALING LIP
54601084100
$19.35
84
STEARING HEAD GASKET TOP
54601184000
$7.10
85
CLAMP F.SPEED.CABLE D=6MM 2001
59001085100
$3.08
86
STEERING HEAD COVER
54201086000
$8.50
87
STEER.HEAD NUT 660SM 02
57301036000
$21.96
88
ECCENTRIC-INSERT TOP 2,5MM 02
57301043000
Unavailable
89
HH COLLAR SCREW M 5X12 WS=8
0015050123
$3.08
90
BRAKE DISC SCOOP CPL. 660 SM
5730906500049
Unavailable
91
SPECIAL SCREW M6X12,5 WS=8
59001092050
$2.05
92
FORK PROTECT L/S+R/S BLACK 02
5900109400030
$40.20
93
RUBBER WASHER 5X21X3
51005082200
$1.49
94
% FACTORY START
SXS04540100
Unavailable
