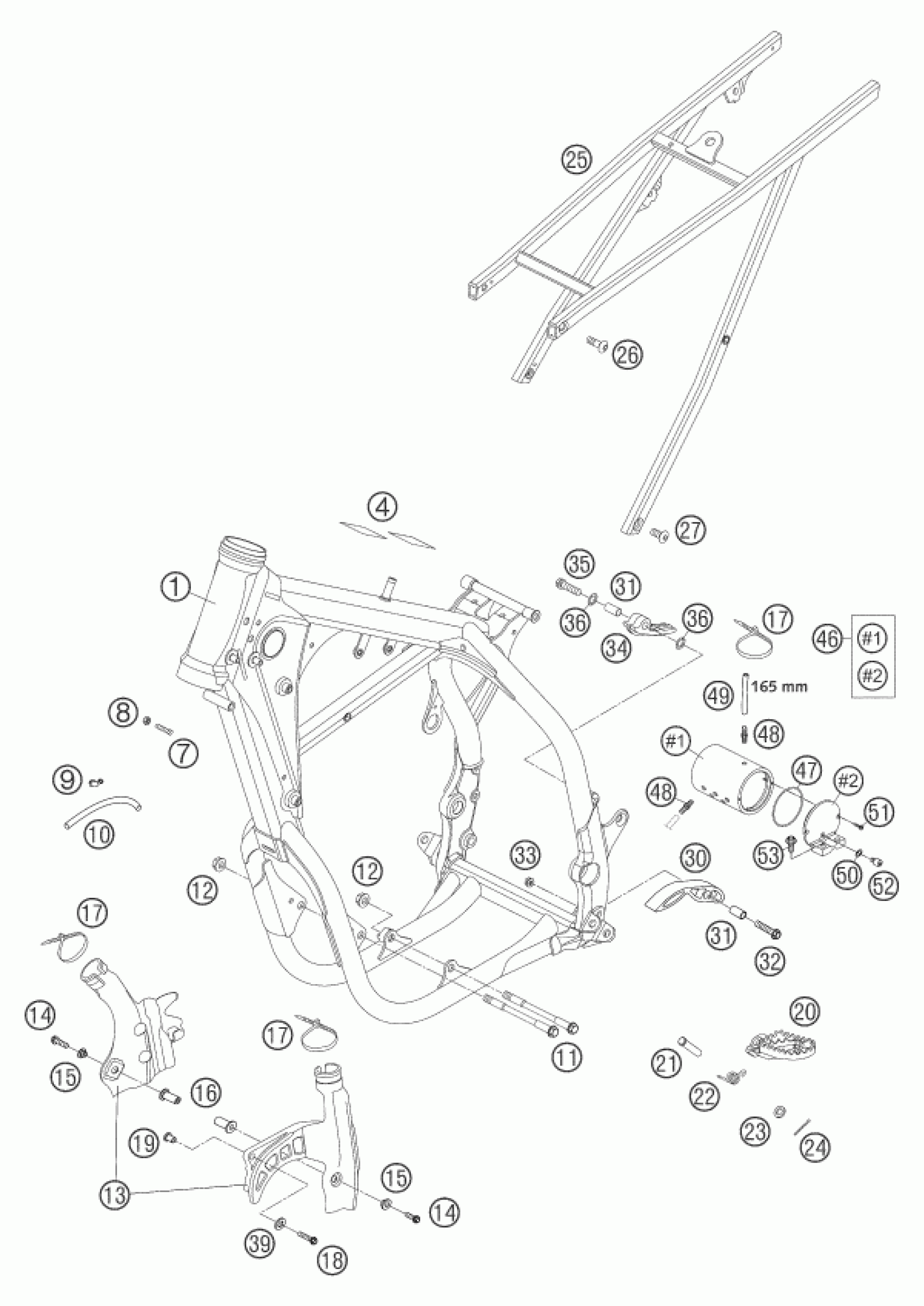

KTM 450 SMS <2004> FRAME Diagram

#

Description
Price

1

FRAME 450 SM FACT.REP. "M4" 04

5920300100030

Unavailable

4

ADH. FOIL TRANSP. 80X80 MM 04

50307012000

Unavailable

7

SPECIAL SCREW M8X26 WS=10

59001037000

Unavailable

8

Hexagon nut DIN934 M8

0934080003

Unavailable

9

ANGLE PIECE '97

50303089000

Unavailable

10

PVC-HOSE 7X10 PER METER

55007016001

Unavailable

11

Enginebrac. screw M10X123 WS=1

59003013000

Unavailable

12

SELF LOCKING NUT M10 CU WS=14

54310086100

Unavailable

13

FRAME PROTECTION SET 03

54803094000

Unavailable

14

HH COLLAR SCREW M 5X25 WS=6

0014050253

Unavailable

15

Bush f. frame protection 03

54803092060

Unavailable

16

BLIND PLUG-IN NUT M5 WN 22A 03

54803092050

Unavailable

17

CABLE TIE 100/2,5MM BLACK

44011076100

Unavailable

17

CABLE TIE 300/4,8MM BLACK

44011076305

Unavailable

18

HH COLLAR SCREW M 6X35 WS=8

0015060353

Unavailable

19

BUSHING F. SPROCKET COVER RAC.

59030060050

Unavailable

20

FOOT PEG L/S SILVER 02

59003040250

Unavailable

20

FOOT PEG R/S SILVER 02

59003041250

Unavailable

21

PIN FOR FOOT PED 51.5X9.8 MM

54803044000

Unavailable

22

FOOTREST SPRING L/S & R/S

54603041000

Unavailable

23

washer DIN 125 A 10.5

0125100003

Unavailable

24

PIN DIN0094-3,2X25 STEEL

0094032253

Unavailable

25

SUB FRAME CPL. ALU RAC.(G3) 03

59403002044

Unavailable

26

SPROCKET SCREW-AH M8X26 WS=6

54510052100

Unavailable

27

SPROCKET SCREW-AH M8X20 WS=6

54610052000

Unavailable

30

CHAIN SLIDING PIECE BELOW '97

51103053000

Unavailable

31

BUSHING 8,2X10X20

51103053051

Unavailable

32

HH COLLAR SCREW M 8X35 WS=10

0015080353

Unavailable

33

Self locking nut M8 10.9

54310086200

Unavailable

34

CHAIN SLIDING PIECE 03

54804067000

Unavailable

35

HH COLLAR SCREW M 8X30 WS=10

0015080303

Unavailable

36

LOCK WASHER 8MM

36003014000

Unavailable

39

WASHER DIN0125-A 6,4

0125060003

Unavailable

46

INTERCEPTION TANK CPL. 04

59203096000

Unavailable

47

O-RING 47,00X1,50 NBR 70

0770047015

Unavailable

48

CONNECT. FOR VENTILATION M6 02

57331096052

Unavailable

49

PVC-HOSE 4X6MM

31007007101

Unavailable

50

CU-SEAL RING DIN7603-6X10X1

0603061001

Unavailable

51

FLAT HEAD SCREW DIN7991 M3X10

0991030102

Unavailable

52

AH collar screw DIN 912 M6x8

0912060083

Unavailable

53

HH COLLAR SCREW M 6X15 WS=8

0014060153

Unavailable
